Shimano SL-M8000 -3860 DEORE XT Rapidfire Plus Lever

SL-M8000 -3860 DEORE XT Rapidfire Plus Lever SL Shift Lever - Schalthebel

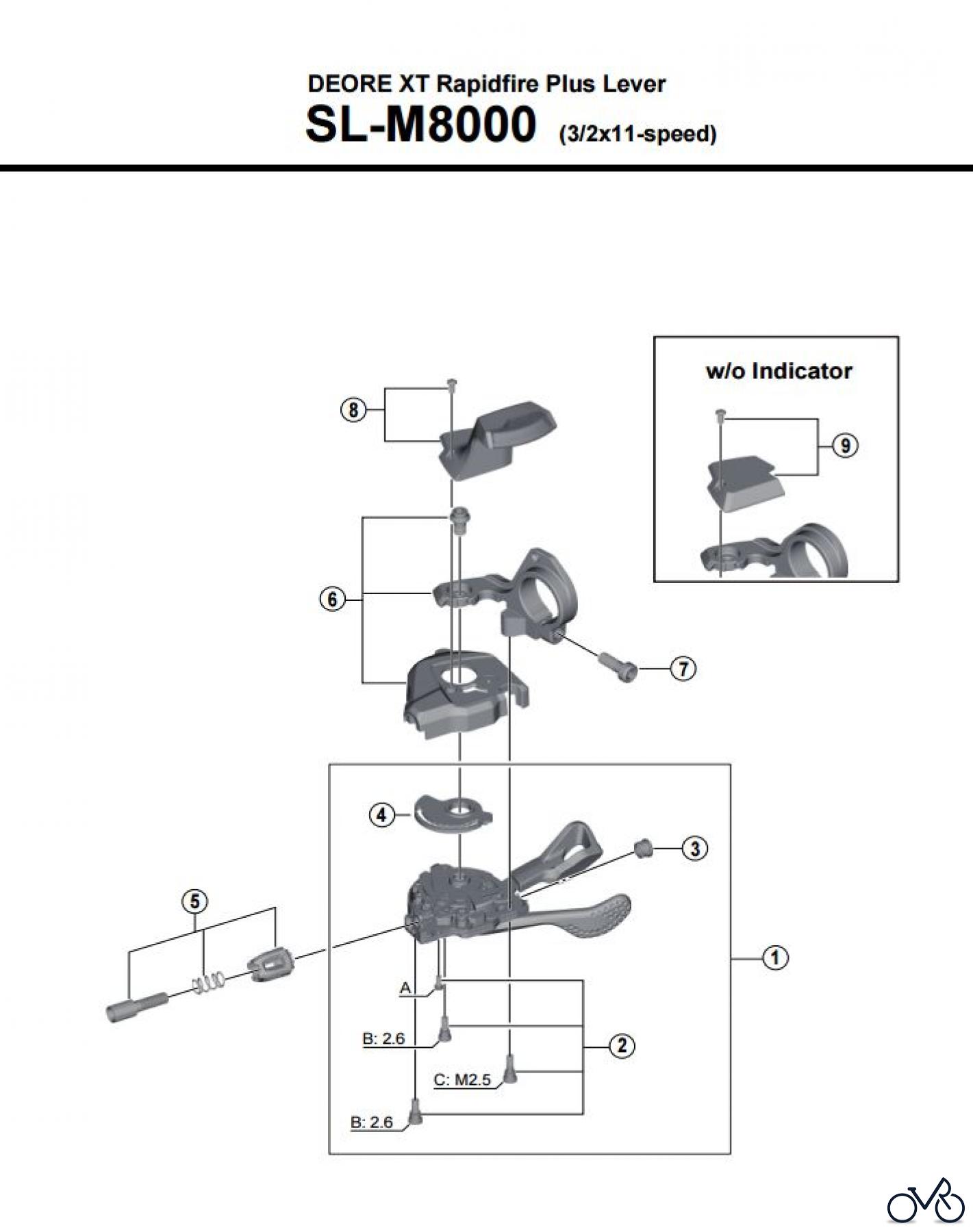

Here you will find the spare parts drawing for Shimano SL Shift Lever - Schalthebel SL-M8000 -3860 DEORE XT Rapidfire Plus Lever. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-03K98010	R.H. Shifting Lever Unit Y03K98010
01	Y-03L98010	L.H. Shifting Lever Uni Y03L98010
02	Y-6UU98040	Base Cover Fixing Screw Unit Y6UU98040
03	Y-6CD33000	Inner Hole Cap Y6CD33000
04	Y-03K03000	R.H. Cam Plate Y03K03000
04	Y-03L53000	L.H. Cam Plate Y03L53000
05	Y-03K98030	Cable Adjusting Bolt Unit Y03K98030
06	Y-03K98040	R.H. Base Cover Unit for w/Indicator Type Y03K98040
06	Y-03K98050	R.H. Base Cover Unit for w/o Indicator Type Y03K98050
06	Y-03L98030	L.H. Base Cover Unit for w/Indicator Type Y03L98030
06	Y-03L98040	L.H. Base Cover Unit for w/o Indicator Type Y03L98040
07	Y-6T842000	Clamp Bolt (M5 x 13.5) Y6T842000
08	Y-03K98060	R.H. Indicator Unit Y03K98060
08	Y-03L98050	L.H. Indicator Unit Y03L98050
09	Y-03K98080	R.H. Base Cap & Bolt Y03K98080
09	Y-03L98070	L.H. Base Cap & Bolt Y03L98070
