Shimano SL-M770-A-3182 DEORE XT Mega-9 Rapidfire Lever

SL-M770-A-3182 DEORE XT Mega-9 Rapidfire Lever SL Shift Lever - Schalthebel

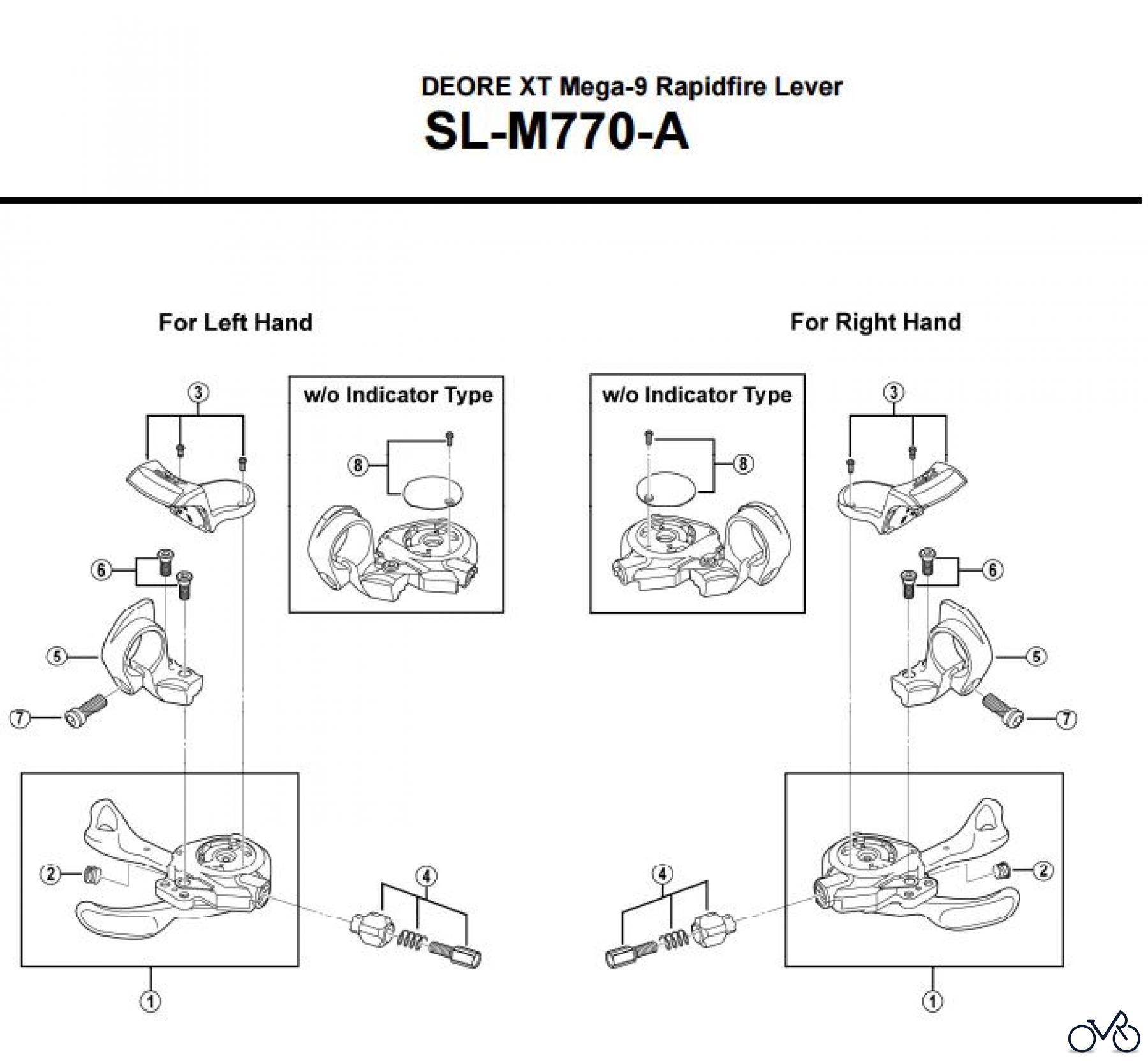

Here you will find the spare parts drawing for Shimano SL Shift Lever - Schalthebel SL-M770-A-3182 DEORE XT Mega-9 Rapidfire Lever. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y6MP98110	R.H. Shifting Lever Unit Y6MP98110
01	Y6MP98120	L.H. Shifting Lever Unit Y6MP98120
02	Y6CD33000	Inner Hole Cap Y6CD33000
03	Y6MP98030	R.H. Indicator Unit Y6MP98030
03	Y6MP98040	L.H. Indicator Unit Y6MP98040
04	Y6GR98090	R.H. Cable Adjustting Bolt Unit Y6GR98090
04	Y6MP98070	L.H. Cable Adjustting Bolt Unit Y6MP98070
05	Y6MP01300	R.H. Bracket for w/ Indicator Type Y6MP01300
05	Y6MP01310	R.H. Bracket for w/o Indicator Type Y6MP01310
05	Y6NX51300	L.H. Bracket for w/ Indicator Type Y6NX51300
05	Y6NX51310	L.H. Bracket for w/o Indicator Type Y6NX51310
06	Y6MP98080	SL Fixing Bolt (M4) 2pcs. Y6MP98080
07	Y8U914000	Clamp Bolt (M6 x 15) Y8U914000
08	Y6MP98090	R.H. Base Hole Cap & Bolt Unit Y6MP98090
08	Y6MP98100	L.H. Base Hole Cap & Bolt Unit Y6MP98100
