Shimano SL-AR01 SHIMANO AIRLINES Shifting Lever

SL-AR01 SHIMANO AIRLINES Shifting Lever SL Shift Lever - Schalthebel

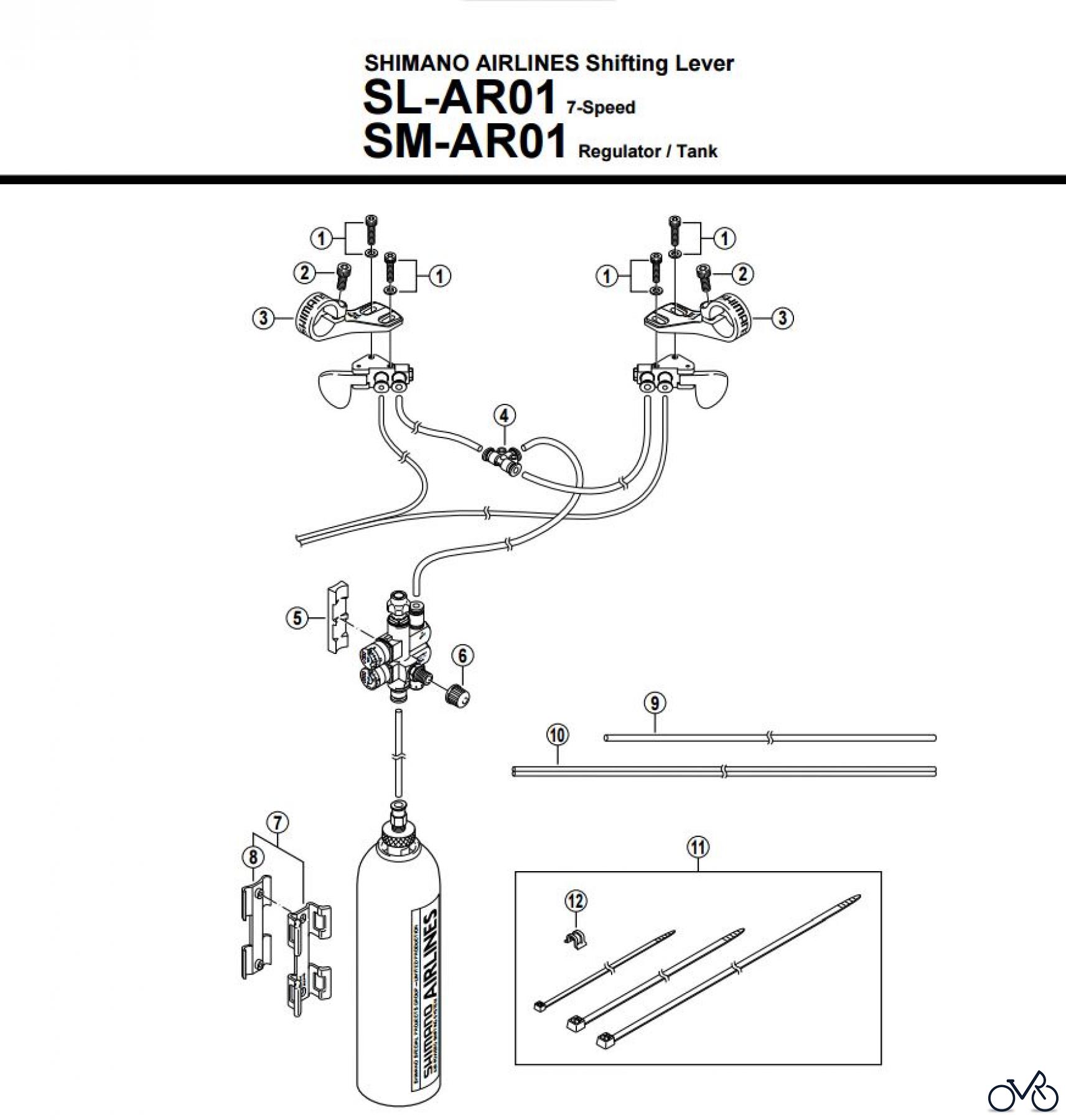

Here you will find the spare parts drawing for Shimano SL Shift Lever - Schalthebel SL-AR01 SHIMANO AIRLINES Shifting Lever. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-6C298010	Lever Unit Fixing Bolt (M4 x 16) & Washer Y6C298010
02	Y-6C242000	Bracket Fixing Bolt (M5 x 12) Y6C242000
03	Y-6C203000	R.H. Bracket Y6C203000
03	Y-6C253000	L.H. Bracket Y6C253000
04	Y-6C239000	Junction Y6C239000
05	Y-77Z23000	Regulator Mounting Pad Y77Z23000
06	Y-77Z15000	Valve Cap Y77Z15000
07	Y-77Z98010	Tank Bracket & Mounting Pad Y77Z98010
08	Y-77Z29000	Tank Bracket Mounting Pad Y77Z29000
09	Y-6C236000	Single Tube ( 4 x 2000 mm) Y6C236000
10	Y-6C235000	Double Tube ( 3 x 4000 mm) Y6C235000
11	Y-6C298020	Clip (10 pcs.) & Lock Tie (202 mm x 20 pcs. / 250 mm x 6 pcs. / 383 mm x 6 pcs.) Y6C298020
12	Y-6C298030	Clip (10 pcs.) Y6C298030
