Shimano HB-M775

HB-M775 HB Hub - Vordere Nabe

Shimano HB Hub - Vordere Nabe HB-M775

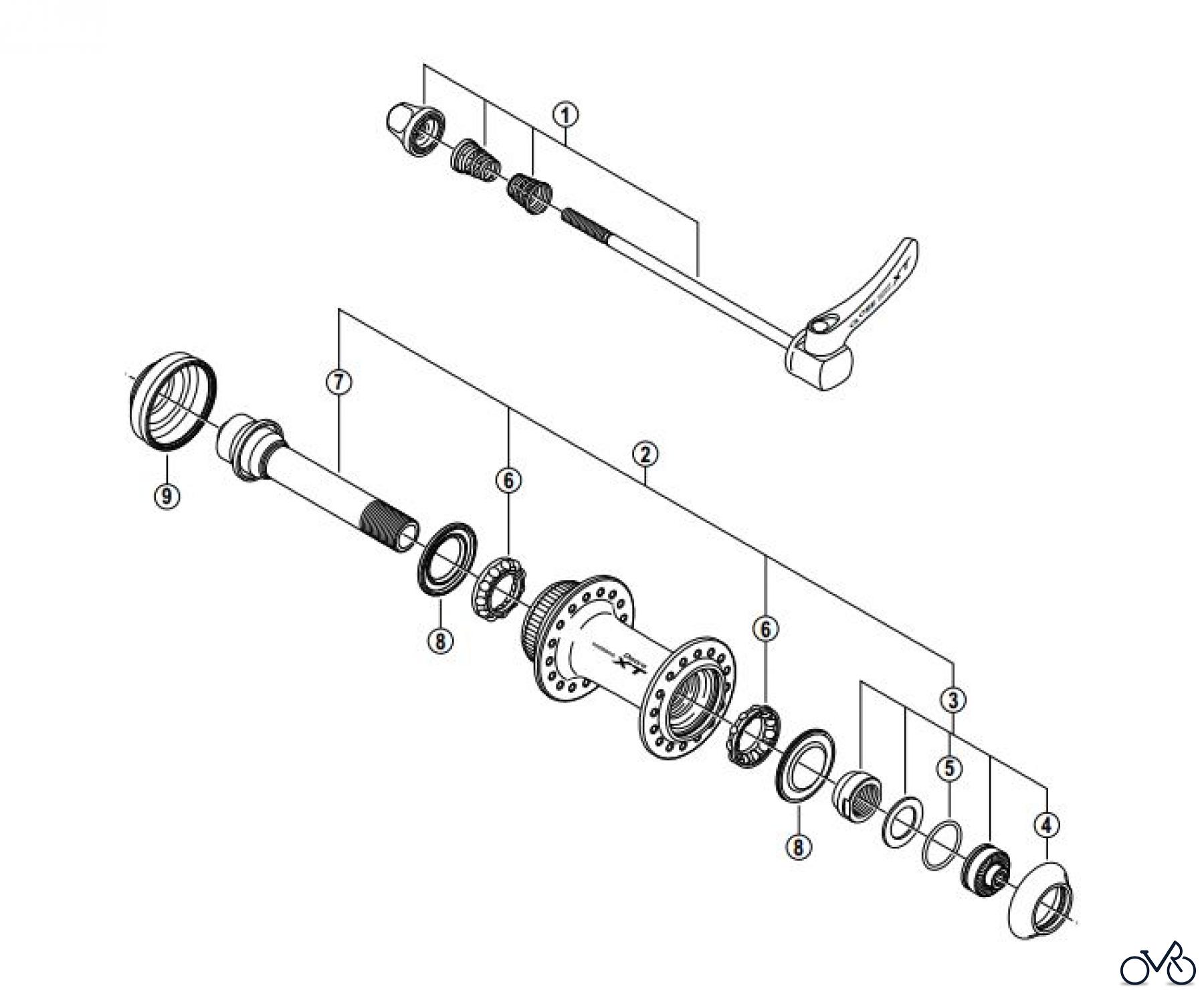

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-M775. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-26K98010Complete Quick Release 133 mm (5-1/4") / Silver Y26K98010
01 Y-26K98020Complete Quick Release 133 mm (5-1/4") / Black Y26K98020
02 Y-26K98030Complete Hub Axle Y26K98030
03 Shimano Lock Nut UnitY-26J98020Lock Nut Unit Y26J98020
04 Shimano Dust CapY-26J11000Dust Cap Y26J11000
05 Shimano O-RingY-26J12000O-Ring Y26J12000
06 Shimano Ball Retainer (3/16")Y-26J98030Ball Retainer (3/16") Y26J98030
07 Y-26K98040Hub Axle Unit Y26K98040
08 Shimano Seal RingY-26D10000Seal Ring Y26D10000
09 Y-25Y06000Rotor Mount Cover Y25Y06000
