Shimano HB-2400

HB-2400 HB Hub - Vordere Nabe

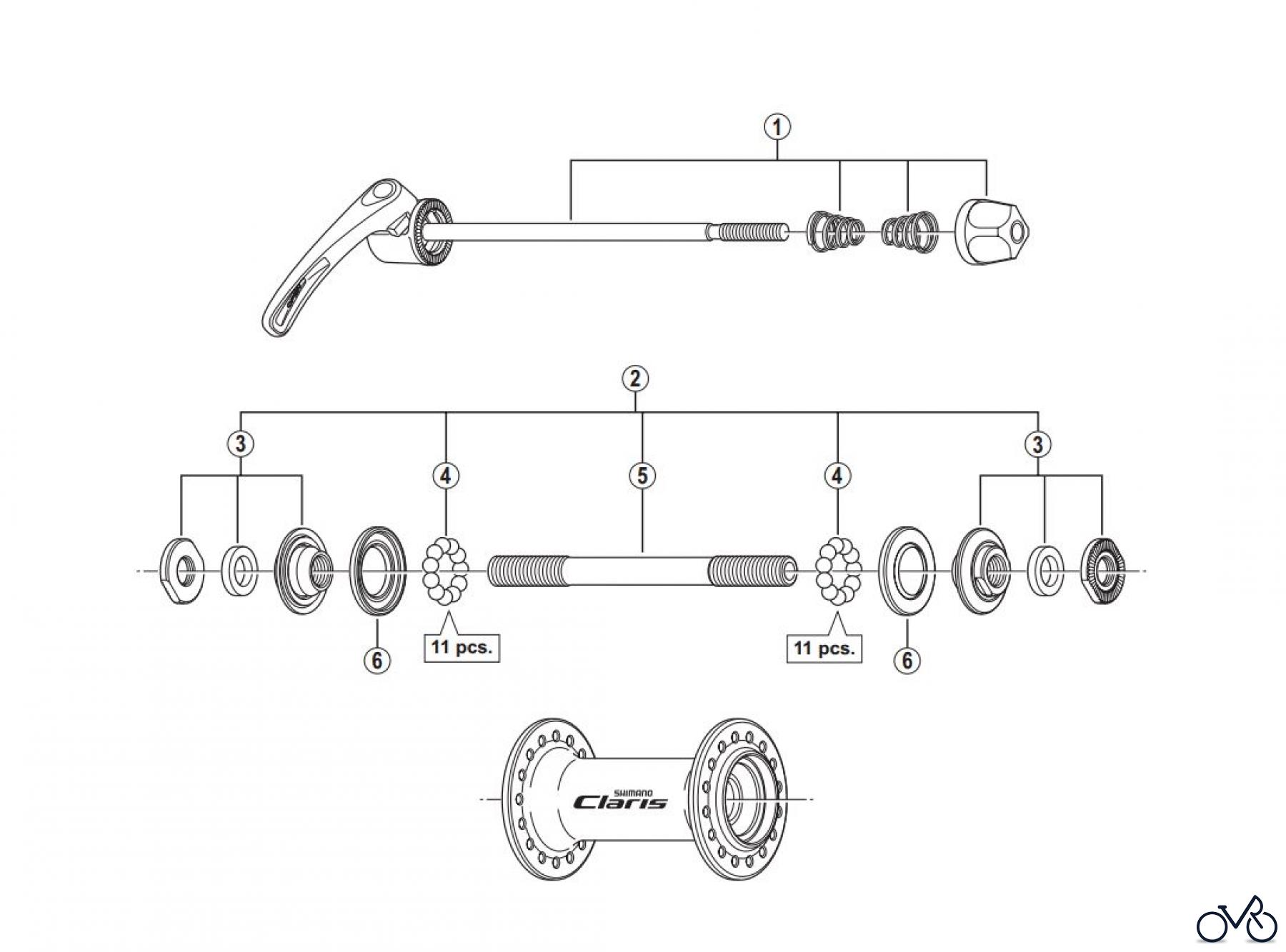

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-2400. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-2UN98010	Complete Quick Release 129 mm (5-3/32") Y2UN98010
01	Y-2UN98020	Complete Quick Release 133 mm (5-1/4") Y2UN98020
02	Y-2UL98010	Complete Hub Axle 108 mm (4-1/4") Y2UL98010
03	Y-2TZ98030	Lock Nut Unit Y2TZ98030
04	Y-4BB98030	Steel Ball (3/16") 22 pcs. Y4BB98030
05	Y-2TA07000	Hub Axle M9 x 108 mm (4-1/4") Y2TA07000
06	Y-2TA06000	Seal Ring Y2TA06000
