Shimano FH-5800

FH-5800 FH Free Hub - Freilaufnabe

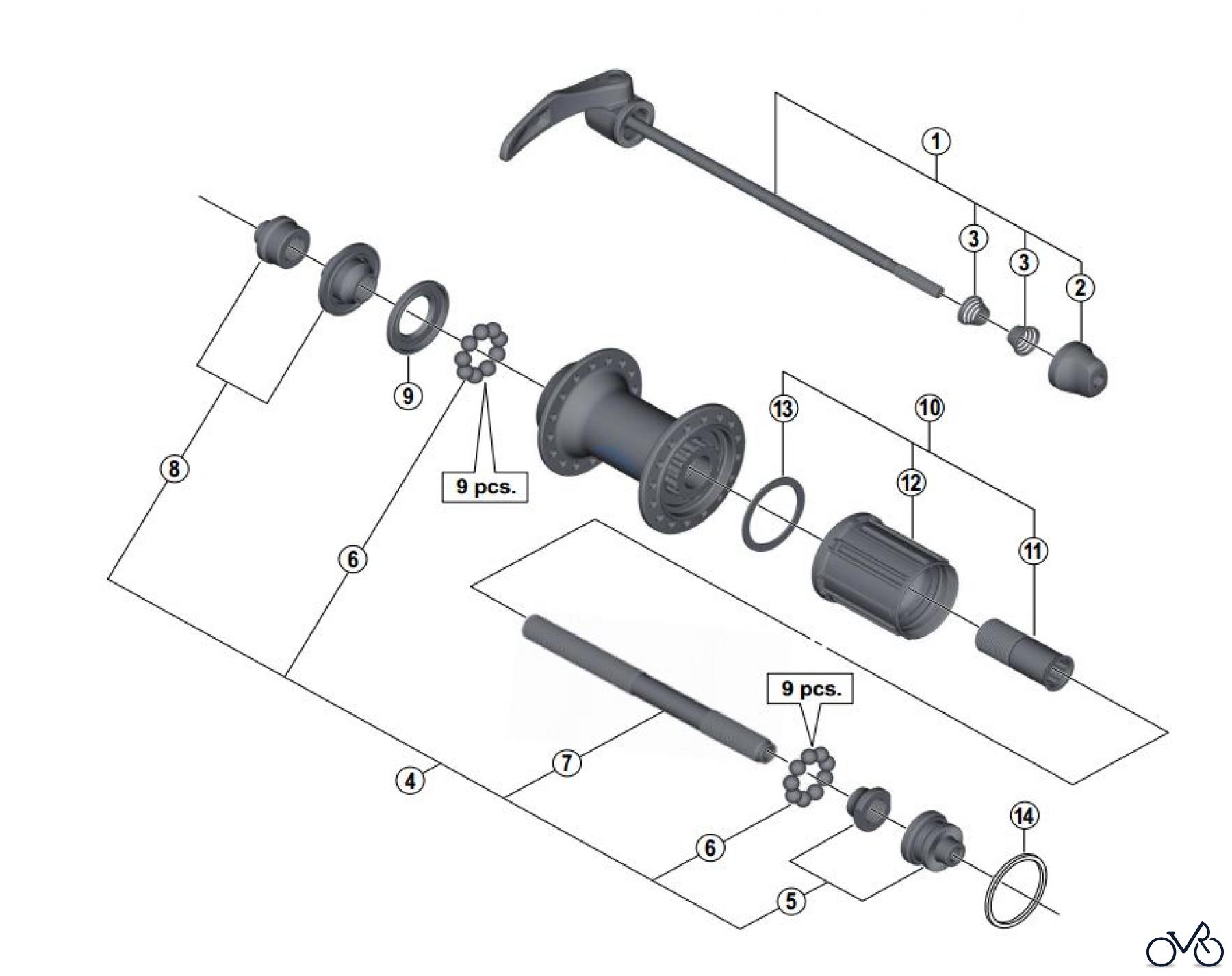

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-5800. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-31F98010	Complete Quick Release 163 mm (6-13/32") Y31F98010
01	Y-31F98020	Complete Quick Release 168 mm (6-5/8") Y31F98020
02	Y-4CP98080	Quick Release Nut Y4CP98080
03	Y-23111000	Volute Spring Y23111000
04	Y-31F98030	Complete Hub Axle 141 mm (5-9/16") Y31F98030
05	Y-31F98040	Right Hand Lock Nut Unit Y31F98040
06	Y-00091310	Steel Ball (1/4") 18 pcs. Y00091310
07	Y-31F07000	Hub Axle 141 mm (5-9/16") Y31F07000
08	Y-31F98050	Left Hand Lock Nut Unit Y31F98050
09	Y-3CR09000	Left Hand Seal Ring Y3CR09000
10	Y-31F98070	Complete Freewheel Body Y31F98070
11	Y-3BL03000	Body Fixing Bolt Y3BL03000
12	Y-31F98080	Freewheel Body Unit Y31F98080
13	Y-3TD06000	Hub Shell Spacer Y3TD06000
14	Y-4T724000	Low Spacer (1.85 mm) Y4T724000
