Shimano FH-T610

FH-T610 FH Free Hub - Freilaufnabe

3515
Shimano FH Free Hub - Freilaufnabe FH-T610

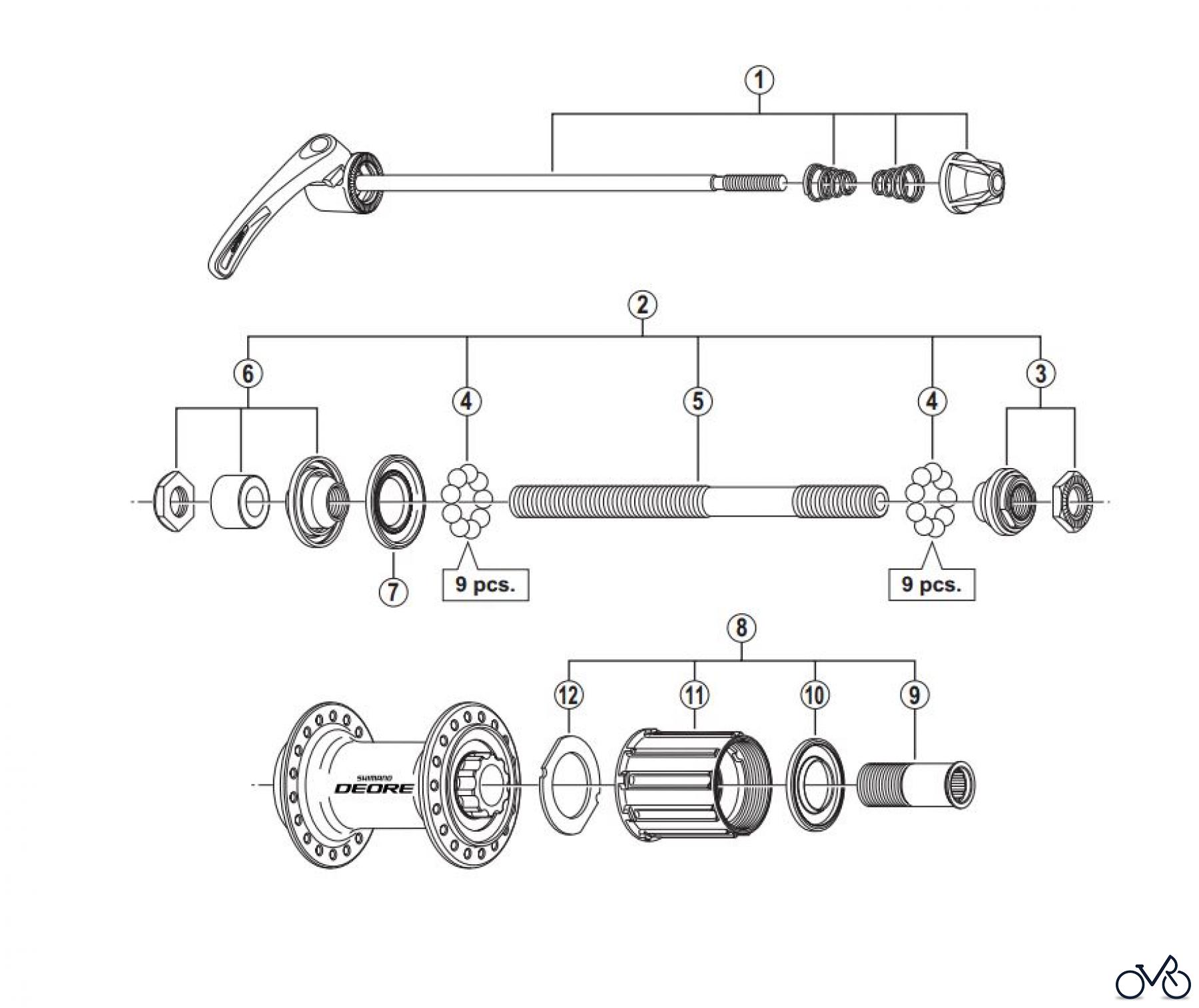

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-T610 . Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-30T98010Complete Quick Release 168 mm (6-5/8") Y30T98010
01 Shimano Complete Quick Release 173 mm (6-13/16")Y-30T98020Complete Quick Release 173 mm (6-13/16") Y30T98020
02 Y-30T98030Complete Hub Axle 146 mm (5-3/4") Y30T98030
03 Shimano Right Hand Lock Nut UnitY-4C898050Right Hand Lock Nut Unit Y4C898050
04 Shimano Steel Ball (1/4") 18 pcsY-00091310Steel Ball (1/4") 18 pcs Y00091310
05 Shimano Hub Axle M10 x 146 mm (5-3/4")Y-30K01200Hub Axle M10 x 146 mm (5-3/4") Y30K01200
06 Y-3SV98020Left Hand Lock Nut Unit Y3SV98020
07 Shimano Left Hand Seal RingY-3CR09000Left Hand Seal Ring Y3CR09000
08 Y-4FL98090Complete Freewheel Body Y4FL98090
09 Shimano Body Fixing BoltY-3BL03000Body Fixing Bolt Y3BL03000
10 Shimano Right Hand Seal RingY-3CR08000Right Hand Seal Ring Y3CR08000
11 Shimano Freewheel Body UnitY-3D698050Freewheel Body Unit Y3D698050
12 Shimano Freewheel Body WasherY-3AN10000Freewheel Body Washer Y3AN10000
