Shimano FD-M591

FD-M591 FD Front Derailleur - Umwerfer

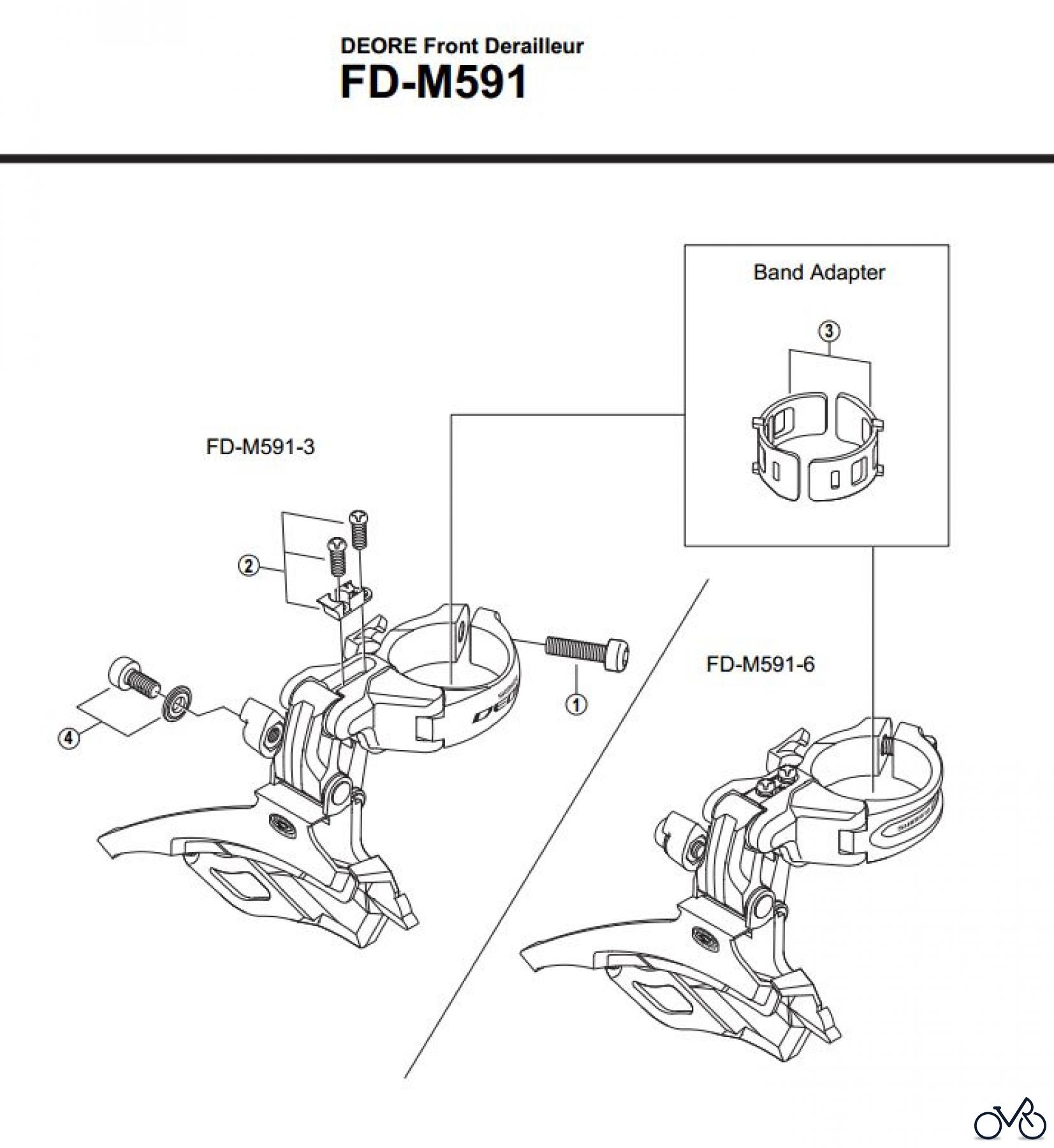

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M591. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-5BG07000	Clamp Bolt (M5 x 18.5) Y5BG07000
02	Y-5LL98010	Stroke Adjust Screws (M4 x 10) & Plate Y5LL98010
03	Y-5LJ98020	Clamp Band Adapters for S-size / 28.6 mm (1-1/8") Y5LJ98020
03	Y-5LJ98030	Clamp Band Adapters for M-size / 31.8 mm (1-1/4") Y5LJ98030
04	Y-5KX98010	Cable Fixing Plate & Bolt (M5 x 10.5) Y5KX98010
