Shimano FD-5703 3053

FD-5703 3053 FD Front Derailleur - Umwerfer

Shimano FD Front Derailleur - Umwerfer FD-5703 3053

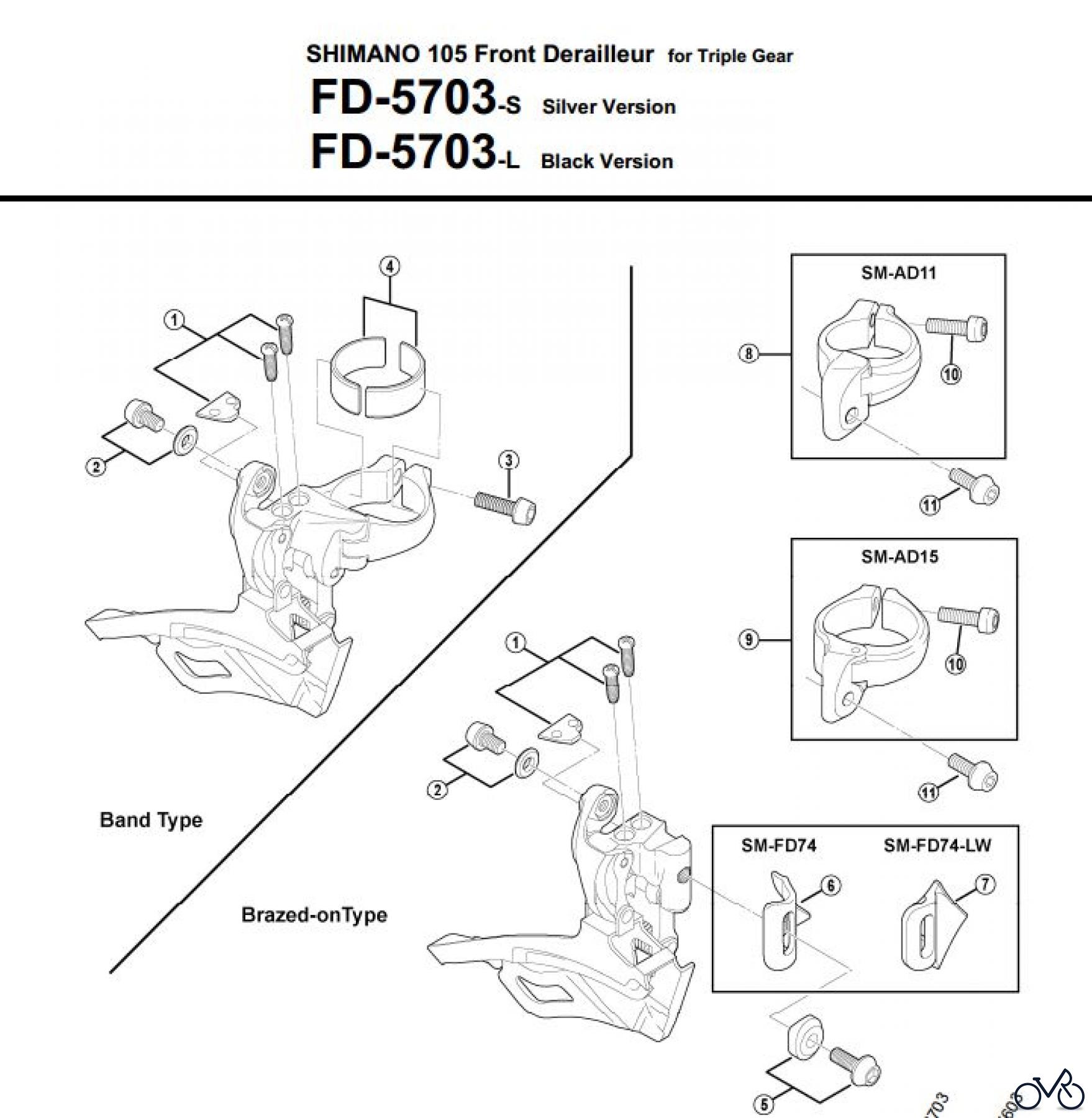

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-5703 3053. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-5MR98010Stroke Adjust Screws (M4 x 13) & Plate Y5MR98010
02 Y-5LW98020Cable Fixing Plate & Bolt (M5 x 8) Y5LW98020
03 Y-5A407020Clamp Bolt (M5 x 15) Y5A407020
04 Y-5JD98020Clamp Band Adapter (2 pcs.) for S-size / 28.6 mm (1-1/8”) Y5JD98020
05 Y-5JD98030Clamp Bolt (M5 x 13.5) & Radius Washer for Brazed-on Type Y5JD98030
06 Y-58032000SM-FD74 Brazed-on Bracket Y58032000
07 Y-58032100SM-FD74-LW Brazed-on Bracket (Investment Cast) Y58032100
08 Y-5JD98040SM-AD11 Clamp Band Unit 31.8 mm (1-1/4”) for Brazed-on Type Y5JD98040
09 Y-5JD98050SM-AD15 Clamp Band Unit 34.9 mm (1-3/8”) for Brazed-on Type Y5JD98050
10 Y-59L19100Clamp Bolt (M5 x 17.5) for SM-AD11 / AD15 Y59L19100
11 Y-5C252000Clamp Bolt (M5 x 13.5) for SM-AD11 / AD15 Y5C252000
