Shimano FD-M9020

FD-M9020 FD Front Derailleur - Umwerfer

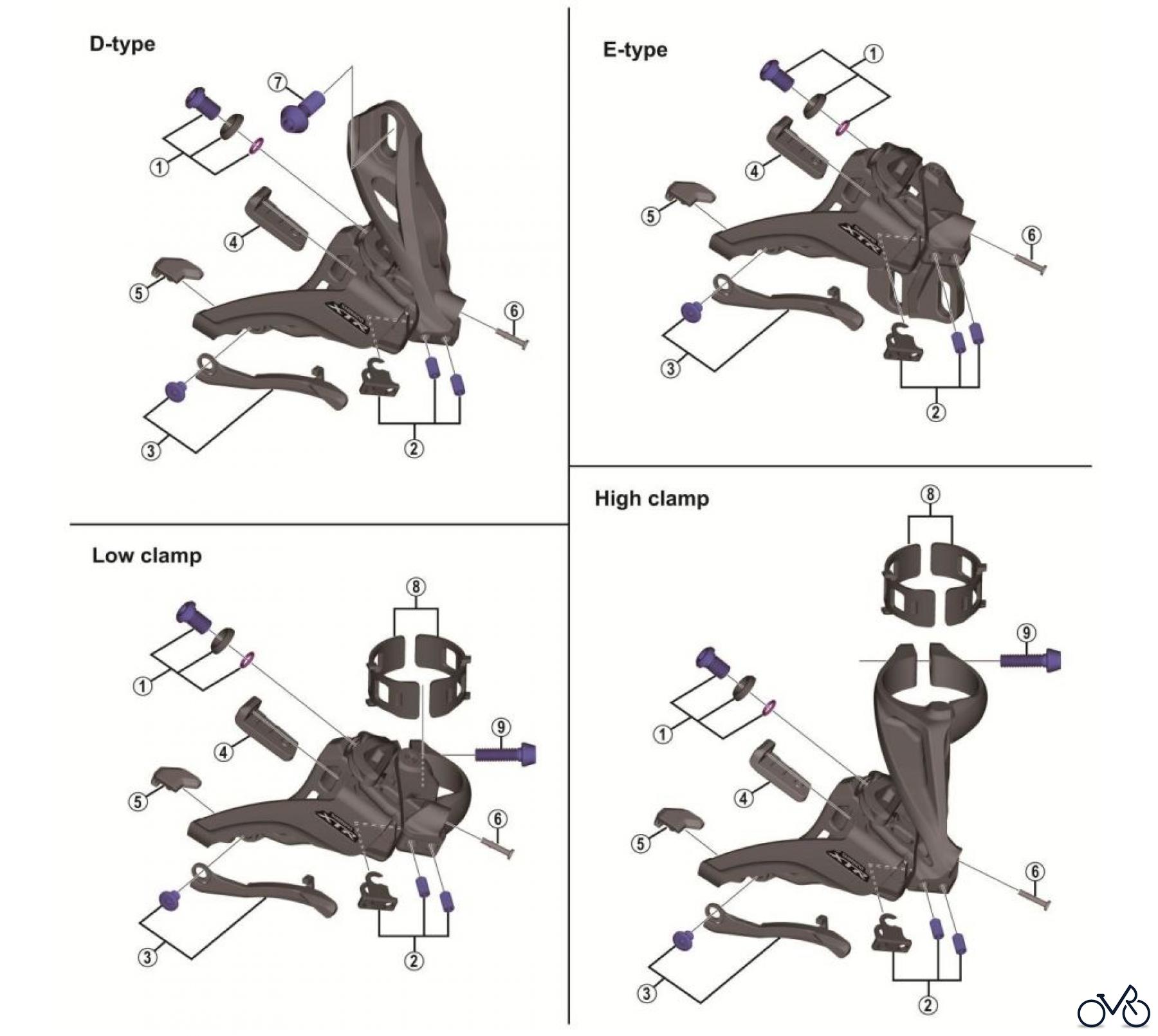

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M9020. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-5R198010	Cable Fixing Bolt & Plate ,O-Ring (M6 x 16) Y5R198010
02	Y-5R198020	Stroke Adjust Screws (M4 x 8) & Plate for FD-M9020 Y5R198020
03	Y-5R198030	Chain Catcher & Fixing Bolt(M4 x 5) Y5R198030
04	Y-5R213000	Rubber Pad A Y5R213000
05	Y-5R214000	Rubber Pad B Y5R214000
06	Y-5PV48000	Guard pipe Y5PV48000
07	Y-5R230000	Clamp Bolt (M6 x 16) Y5R230000
08	Y-57Y98030	Clamp Band Adapters for S-size / 28.6 mm (1-1/8") Y57Y98030
08	Y-57Y98040	Clamp Band Adapters for M-size / 31.8 mm (1-1/4") Y57Y98040
09	Y-5R007000	Clamp Bolt (M5 x 17) Y5R007000
