Shimano DH-S501 2857A

DH-S501 2857A DH Dynamo Hub - Nabendynamo

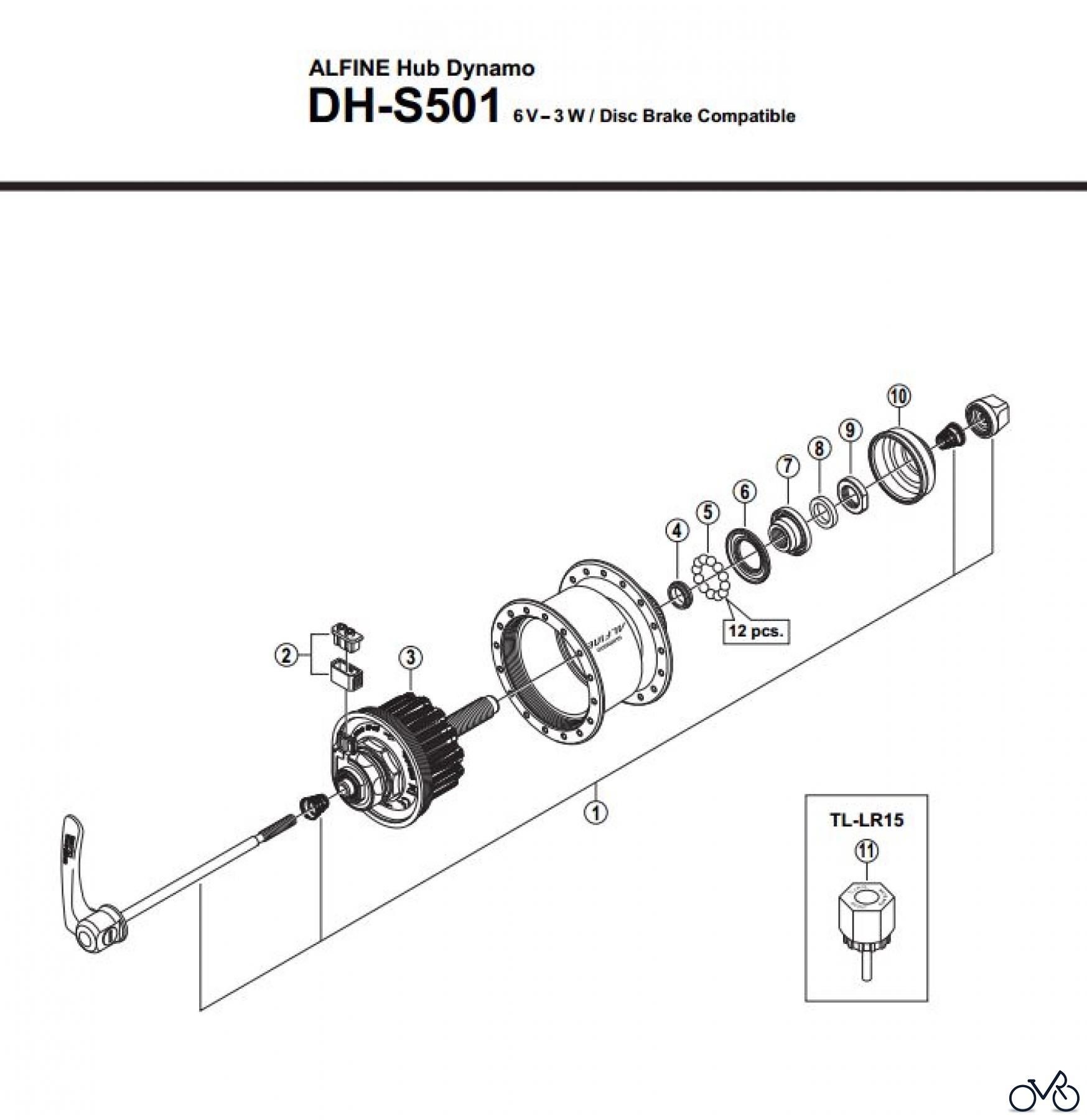

Here you will find the spare parts drawing for Shimano DH Dynamo Hub - Nabendynamo DH-S501 2857A. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-2TB98010	Complete Quick Release 133 mm (5-1/4") Y2TB98010
02	Y-2SS98030	Connector Cap & Cover Y2SS98030
03	Y-2YY98010	Internal Assembly (Axle Length 108 mm) Y2YY98010
04	Y-2ZW20000	Grease Guard Y2ZW20000
05	Y-00091210	Steel Ball (3/16") 20 pcs. Y00091210
06	Y-2YX11000	Seal Ring Y2YX11000
07	Y-2YW98020	Cone (M11 x 12.1 mm) w/Dust Cover Y2YW98020
08	Y-2SX21000	Left Hand Spacer (2.5 mm) Y2SX21000
08	Y-20R02100	Left Hand Spacer (3 mm) Y20R02100
09	Y-3BT04200	Serated Lock Nut (M11 x 4 mm) Y3BT04200
10	Y-24Z02000	Rotor Mount Cover Y24Z02000
11	Y-12009230	Lock Ring Removal Tool (TL-LR15) Y12009230
