Shimano BB-UN26

BB-UN26 BB Bottom Bracket- Tretlager

Shimano BB Bottom Bracket- Tretlager BB-UN26

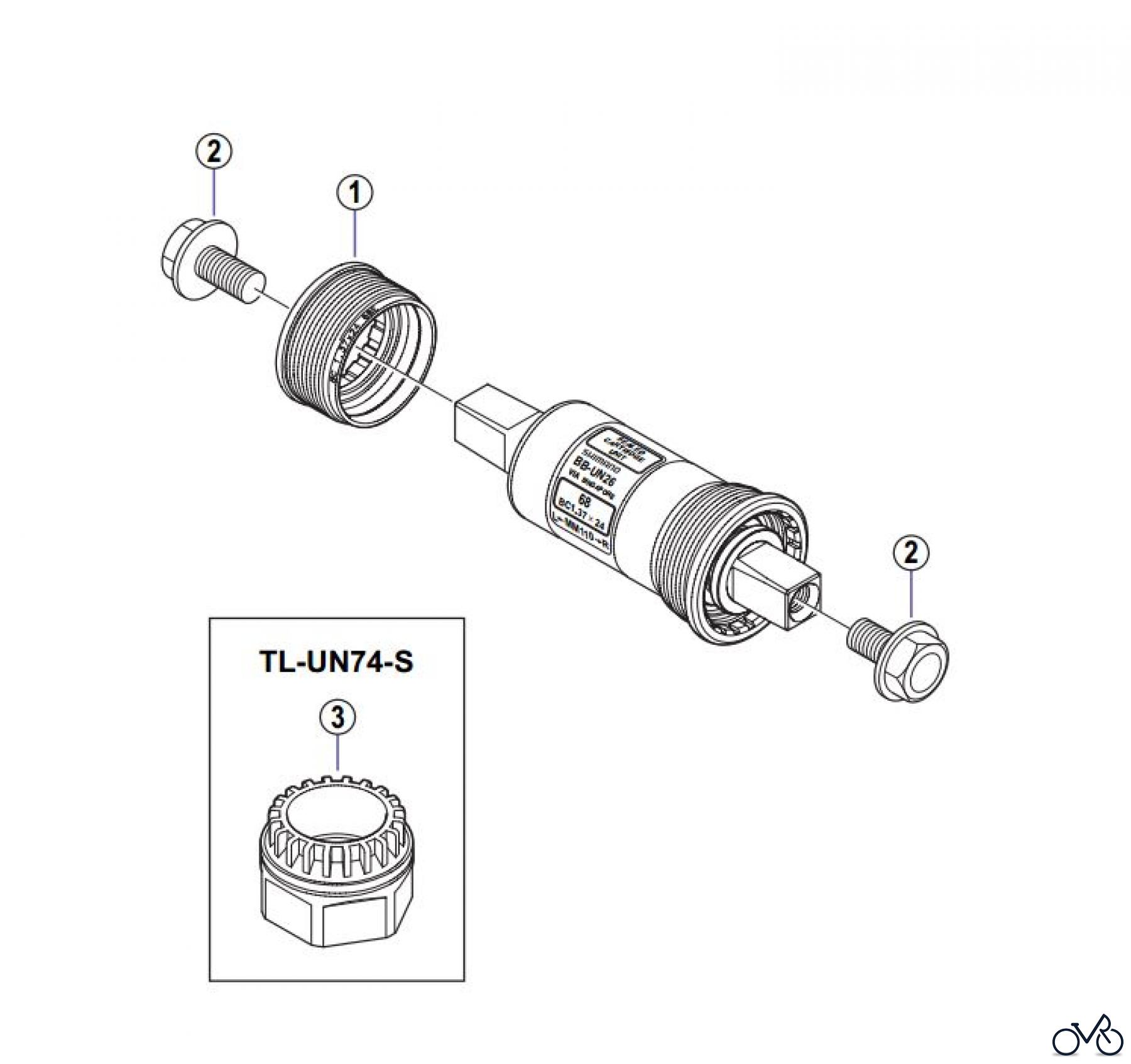

Here you will find the spare parts drawing for Shimano BB Bottom Bracket- Tretlager BB-UN26. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-1SG05000Schale links (B.C.1.37" x 24), BSA-Gewinde, für BB-UN26: Gehäusebreite 68 mm / - D-EL Y1SG05000
01 Y-1SG05030Schale links (B.C.1.37" x 24), BSA-Gewinde, für BB-UN26: Gehäusebreite 68 mm / MM110 - LL113 - YL117 - D-NL / BB-UN26-E: Gehäusebreite 68 mm Y1SG05030
01 Y-1SG05100Schale links (B.C.1.37" x 24), BSA-Gewinde, für BB-UN26-K: Gehäusebreite 68 mm / 117.5 - 130 Y1SG05100
01 Y-1SG05020Schale links (B.C.1.37" x 24), BSA-Gewinde, für BB-UN26: Gehäusebreite 73 mm / BB-UN26-EK: Gehäusebreite 68 mm /BB-UN26-K: Gehäusebreite 68 mm / MM10 – LL113 - YL117 – D-NL Y1SG05020
01 Y-1SG05040Schale links (B.C.1.37" x 24), BSA-Gewinde, für BB-UN26-E: Gehäusebreite 73mm Y1SG05040
01 Y-1SG05010Schale links (M36 x 24), italienisches Gewinde, für BB-UN26: Gehäusebreite 70 mm Y1SG05010
02 Y-15507000Kurbelbefestigungsschraube Y15507000
03 Y-13009073Kompaktlagerwerkzeug TL-UN74-S Y13009073
