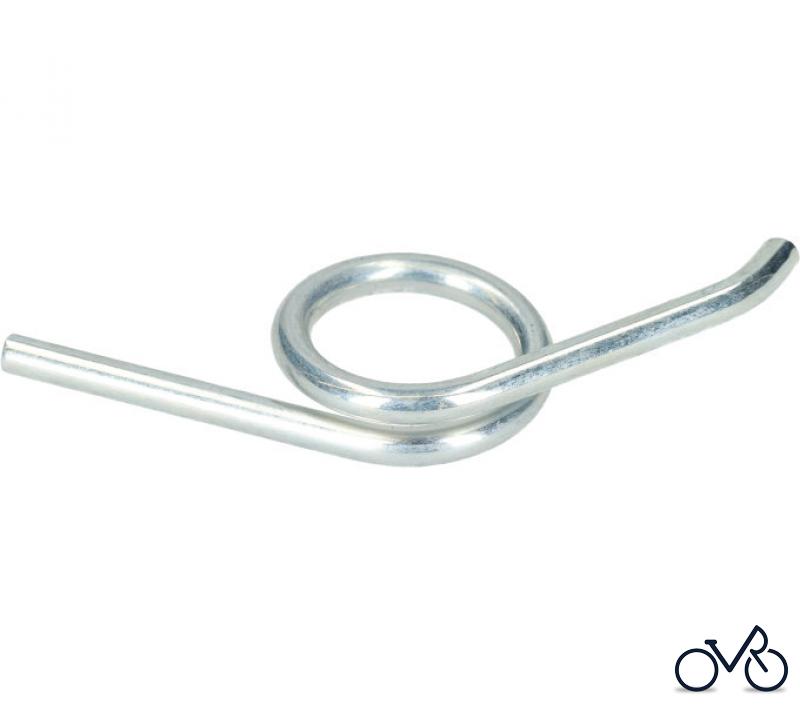

Shimano BR-3500

Arm Spring

Shimano Arm Spring
Article Number:
Y8JY27000
Pos:
005
no longer available
Sora Caliper Brake
Shimano BR Brake - Bremse BR-3500

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-3500. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
001 Y8JY98010Arm Bolt Unit (M6 x 26.5) Y8JY98010
002 Y8JY98020Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 10.5 mm} Y8JY98020
002 Y8JY98030Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 12.5 mm} Y8JY98030
002 Y8JY98040Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 18.0 mm} Y8JY98040
002 Y8JY98050Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 27.0 mm} Y8JY98050
002 Y8JY98060Rear Pivot Bolt Assembly {Pivot Bolt: 35.7 mm (1-13/32") / Pivot Nut: 10.5 mm} Y8JY98060
003 Y85575110Pivot Nut (10.5 mm) for Front/Rear Y85575110
003 Y85575020Pivot Nut (12.5 mm) for Front Y85575020
003 Y85574010Pivot Nut (18.0 mm) for Front Y85574010
003 Y8A023000Pivot Nut (27.0 mm) for Front Y8A023000
004 Y8E604000Lock Nut Y8E604000
005 Y8JY27000Arm Spring Y8JY27000
006 Y8BY08000Spring Guide Y8BY08000
007 Y8JY10000EC-Screw (M4 x 10.2) Y8JY10000
008 Y8JY98070R50T2 Brake Shoe Set (5 pairs) Y8JY98070
009 Y8JY98080Shoe Fixing Bolt Unit (M5 x 11.2) Y8JY98080
010 Y8JY98090Cable Adjusting Bolt (M6 x 21.6) & Clip Y8JY98090
011 Y8BT98010Cable Fixing Bolt (M6 x 9) & Plate Y8BT98010
