Shimano BR-R9270 DURA-ACE

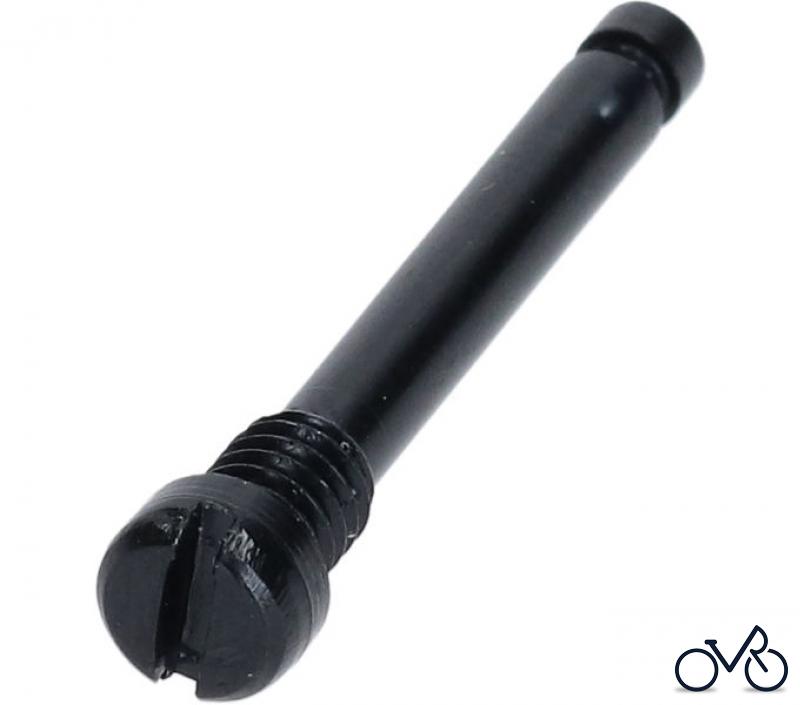

Pad axle

Article Number:

Y-8LV08000

Pos:

4.95 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: Delivery time approx. 5 to 14 working days.

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-R9270 DURA-ACE. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8RD98010	Flange flare nut unit (M9/black) for ST-R9270 Y8RD98010
1	Y-8RD98020	Flare nut unit (M8/silver) for ST-R9180 Y8RD98020
2	Y-8JA98020	Olive and connecter insert Y8JA98020
3	Y-8H198030	TL-BH61 Shimano original tool (2 pcs.) Y8H198030
4	Y-8JA98010	Flare nut unit (M8/black) Y8JA98010
5	Y-83098040	SM-HANG Hose supporter A and B Y83098040
6	Y-2HW08000	Bleed screw cap Y2HW08000
7	Y-2HW10000	Bleed boss cap Y2HW10000
8	Y-8PU98030	Pad axle and snap retainer Y8PU98030
9	Y-8LV08000	Pad axle Y8LV08000
10	Y-8J716000	Snap retainer Y8J716000
11	I-BPK05TIRXA	K05Ti-RX Resin pad and spring (pair) IBPK05TIRXA
11	Y-8PU98050	K05Ti-RX Resin pad and spring (pair) Y8PU98050
12	I-BPK04TIMXA	K04Ti Metal pad and spring (pair) IBPK04TIMXA
12	Y-8PU98020	K04Ti Metal pad and spring (pair) Y8PU98020
13	E-BPL05ARFA	L05A-RF Resin pad with fin and spring (pair) EBPL05ARFA
13	Y-2EM98010	L05A-RF Resin pad with fin and spring (pair) Y2EM98010
13	E-BPL05ARFBS	L05A-RF Resin pad with fin and spring (25 pairs) EBPL05ARFBS
13	Y-2EM98011	L05A-RF Resin pad with fin and spring (25 pairs) Y2EM98011
14	I-BPL04CMFA	L04C Metal pad with fin and spring (pair) IBPL04CMFA
14	Y-8N398040	L04C Metal pad with fin and spring (pair) Y8N398040
15	Y-8N218000	Pad spacer Y8N218000
16	Y-8N207000	Screw fixing pin Y8N207000
17	Y-2HW06010	Caliper fixing screw B2 Y2HW06010
18	Y-8N206000	Caliper fixing screw B Y8N206000
19	Y-8N230000	Front caliper mount bracket Y8N230000
20	Y-8PU07000	Caliper fixing screw A Y8PU07000
21	Y-8N205000	Snap ring Y8N205000
22	Y-2HW08010	Caliper fixing screw C2 for 20 mm rear mount thickness Y2HW08010
22	Y-2HW08020	Caliper fixing screw C2 for 25 mm rear mount thickness Y2HW08020
22	Y-2HW08030	Caliper fixing screw C2 for 30 mm rear mount thickness Y2HW08030
23	Y-8PU08010	Caliper fixing screw C for 20 mm rear mount thickness Y8PU08010
23	Y-8PU08020	Caliper fixing screw C for 25 mm rear mount thickness Y8PU08020
23	Y-8PU08030	Caliper fixing screw C for 30 mm rear mount thickness Y8PU08030
24	Y-2HW12000	Screw length selector Y2HW12000
25	Y-8NU02000	Washer for R160 adapter Y8NU02000
26	Y-8NU03000	Snap retainer Y8NU03000
27	Y-8K198010	Lock ring and washer Y8K198010
28	Y-12009230	TL-LR15 Lock ring removal tool Y12009230
29	Y-26L98030	Lock ring and washer (external spline type) Y26L98030
30	Y-13098000	TL-FC36 Lock ring removal tool Y13098000
31	Y-83998020	Mineral oil (100 ml) Y83998020
31	Y-83998030	Mineral oil (500 ml) Y83998030
32	Y-2HW15000	Bleeding spacer Y2HW15000
33	Y-8JA98026	Connecting insert (100 pcs.) Y8JA98026
34	Y-8H298047	Olive (100 pcs.) Y8H298047
