Shimano SG-C7000-5D (-4450B) NEXUS 5-speed E-Bike Dedicated Mechanical Internal Hub

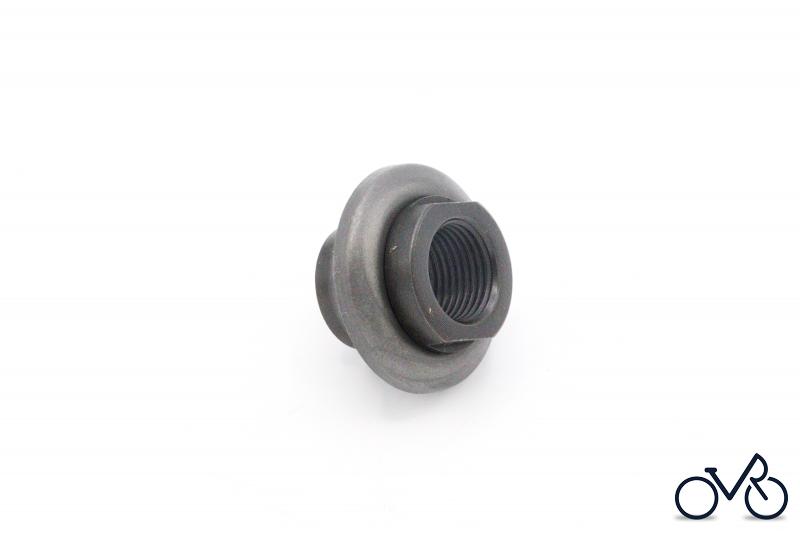

Left Hand Cone w/Dust Cap & Seal Ring A A

Shimano Left Hand Cone w/Dust Cap & Seal Ring A A
Article Number:
Y-31L98040
Pos:
14
6.95 €
for EU incl. VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
in Stock in Stock
Shimano SG Getriebenabe /Nabenschaltung SG-C7000-5D (-4450B) Shimano NEXUS 5-speed E-Bike Dedicated Mechanical Internal Hub

Here you will find the spare parts drawing for Shimano SG Getriebenabe /Nabenschaltung SG-C7000-5D (-4450B) Shimano NEXUS 5-speed E-Bike Dedicated Mechanical Internal Hub. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-3FJ98010 Internal Assembly (Axle Length 187 mm) Y3FJ98010
2 Y-3FF49000 Stop Ring Diameter (12 mm / 1.3 mm) A Y3FF49000
3 Y-3FF98020 Carrier Unit A Y3FF98020
4 Shimano Ball Retainer O (3/16" x 26) A A Y-38X98050 Ball Retainer O (3/16" x 26) A A Y38X98050
5 Y-3FJ98020 Hub Axle Unit (Axle Length 187 mm) Y3FJ98020
6 Y-3FF98040 Driver Unit A Y3FF98040
7 Shimano Ball Retainer A (7/32" x 13) A Y-3FF98050 Ball Retainer A (7/32" x 13) A Y3FF98050
8 Y-3FJ98030 Right Hand Cone w/Seal Y3FJ98030
9 Shimano Drive Plate Y-31L04000 Drive Plate Y31L04000
10 Shimano Lock Washer Y-31L98030 Lock Washer Y31L98030
11 Shimano Joint Nut Stop Washer A Y-34R09000 Joint Nut Stop Washer A Y34R09000
12 Shimano Right Hand Serated Lock Nut (5.4 mm) A Y-35Z11000 Right Hand Serated Lock Nut (5.4 mm) A Y35Z11000
13 Shimano Left Hand Serated Lock Nut (10.7 mm) A A Y-35Z19000 Left Hand Serated Lock Nut (10.7 mm) A A Y35Z19000
14 Shimano Left Hand Cone w/Dust Cap & Seal Ring A A Y-31L98040 Left Hand Cone w/Dust Cap & Seal Ring A A Y31L98040
15 Shimano Seal Ring A A Y-37710000 Seal Ring A A Y37710000
16 Shimano Left Hand Inner Dust Cap A A Y-32T08100 Left Hand Inner Dust Cap A A Y32T08100
17 Shimano Ball Retainer (7/32" x 9) A A Y-36U98030 Ball Retainer (7/32" x 9) A A Y36U98030
18 Shimano Right Hand Dust Cap A w/Seal A B Y-37G98080 Right Hand Dust Cap A w/Seal A B Y37G98080
19 Y-3FF47000 Right Hand Dust Cap C A Y3FF47000
20 Y-70811000 TL-AF30 Left Hand Inner Dust Cap Installation Tool A A Y70811000
21 Y-13098022 TL-S702 Right Hand Cone Installation Tool A Y13098022
22 Y-70821000 TL-C7001 Right Hand Cone Removal Tool A Y70821000
23 Shimano Internal Hub Grease (Net. 100g) A A Y-04120800 Internal Hub Grease (Net. 100g) A A Y04120800
24 Y-00298010 WB maintenance oil set A A Y00298010
25 Y-00201000 WB maintenance oil (1L) A A Y00201000
26 Shimano Bottle A A Y-00201100 Bottle A A Y00201100
27 Shimano Cap Nut (3/8") Y-31414010 Cap Nut (3/8") Y31414010
28 Shimano Non-turn Washer 5R (Yellow) Y-33Z20500 Non-turn Washer 5R (Yellow) Y33Z20500
28 Shimano Non-turn Washer 6R (Silver) Y-33M39600 Non-turn Washer 6R (Silver) Y33M39600
28 Shimano Non-turn Washer 7R (Black) Y-33M39700 Non-turn Washer 7R (Black) Y33M39700
28 Shimano Non-turn Washer 8R (Dark Blue) Y-34R85010 Non-turn Washer 8R (Dark Blue) Y34R85010
29 Shimano Non-turn Washer 5L (Brown) Y-33M39510 Non-turn Washer 5L (Brown) Y33M39510
29 Y-33M39610 Non-turn Washer 6L (White) Y33M39610
29 Shimano Non-turn Washer 7L (Gray) Y-33M39710 Non-turn Washer 7L (Gray) Y33M39710
29 Shimano Non-turn Washer 8L (Dark Green) Y-34R85000 Non-turn Washer 8L (Dark Green) Y34R85000
30 Shimano Sprocket Wheel 24T (CS-C7000) Y-0FM24000 Sprocket Wheel 24T (CS-C7000) Y0FM24000
30 Y-0FM01000 Sprocket Wheel 27T (CS-C7000) Y0FM01000
30 Y-0FM30000 Sprocket Wheel 30T (CS-C7000) Y0FM30000
31 Shimano Snap Ring Y-7ZP04000 Snap Ring Y7ZP04000
32 Shimano CJ-C7000-5 Cassette Joint Unit Y-7ZP98010 CJ-C7000-5 Cassette Joint Unit Y7ZP98010
32 Y-7ZP98030 CJ-C7000-5 Cassette Joint Unit for Belt drive system Y7ZP98030
33 Shimano Driver Cap Y-7ZP05000 Driver Cap Y7ZP05000
34 Shimano CJ-C7000-5 Cassette Joint Y-7ZP98020 CJ-C7000-5 Cassette Joint Y7ZP98020
34 Shimano CJ-C7000-5 Cassette Joint for Belt drive system Y-7ZP98040 CJ-C7000-5 Cassette Joint for Belt drive system Y7ZP98040
35 Shimano Cassette Joint Fixing RingY-33Z98020 Cassette Joint Fixing Ring Y33Z98020
