Shimano BR-IM41-R -2128 SHIMANO NEXUS 7-SPEED HUB

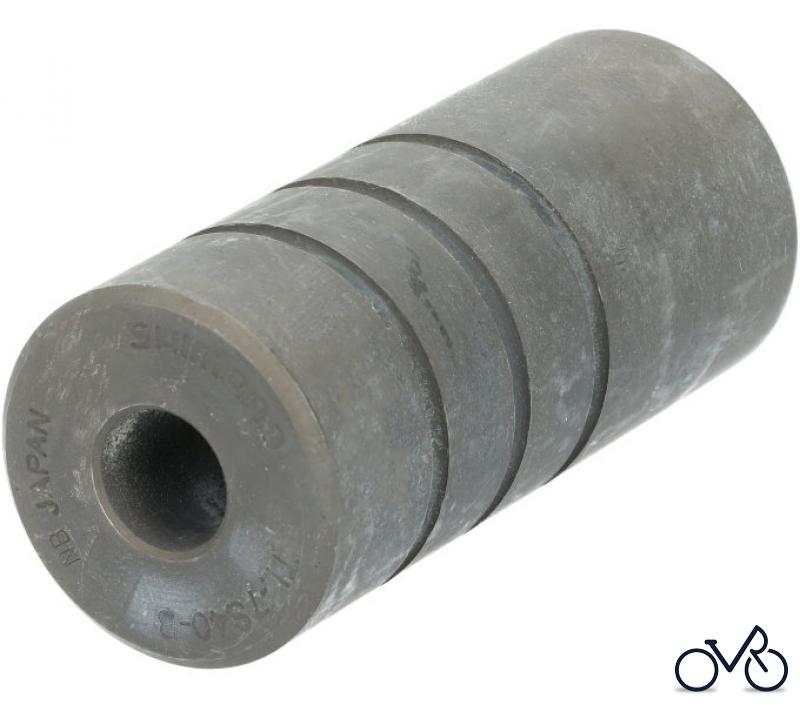

TL-7S40-B Right Hand Cone Tool

Article Number:

Y-30889000

Pos:

no longer available

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-IM41-R -2128 SHIMANO NEXUS 7-SPEED HUB. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-35D98010	Internal Assembly (Axle Length 182 mm) Y35D98010
01	Y-35D98020	Internal Assembly (Axle Length 201 mm) Y35D98020
02	Y-30807000	Stop Ring for Carrier Guide 2 Y30807000
03	Y-33E03000	Carrier Guide 2 Y33E03000
04	Y-33E98070	Carrier Unit 2 Y33E98070
05	Y-30898040	Ring Gear Unit 2 Y30898040
06	Y-33F98060	Sun Gear Unit 2 & 3 Y33F98060
07	Y-33098060	Carrier Unit 1 Y33098060
08	Y-35D98030	Carrier guide 2 / Axle & Driver Unit (Axle Length 182 mm) Y35D98030
08	Y-35D98040	Carrier guide 2 / Axle & Driver Unit (Axle Length 201 mm) Y35D98040
09	Y-33091800	Ball Retainer M (3/16" x 26) Y33091800
10	Y-35C07000	Right Hand Dust Cap B Y35C07000
11	Y-33Z26000	Right Hand Dust Cap C Y33Z26000
12	Y-34L98050	Axle Unit (Axle Length 182 mm) Y34L98050
12	Y-34L98060	Axle Unit (Axle Length 201 mm) Y34L98060
13	Y-33024000	Return Spring A Y33024000
14	Y-33Z10000	Gear Shifting Cam Y33Z10000
15	Y-33Z11000	Feed Cam Y33Z11000
16	Y-35D98050	Driver Unit w/Right Hand Dust Cap B & C Y35D98050
17	Y-35D98060	Driver Unit Y35D98060
18	Y-33091600	Ball Retainer F (3/16" x 12) Y33091600
19	Y-33Z98030	Right Hand Cone w/Seal Y33Z98030
20	Y-33Z28000	Right Hand Cone Seal Y33Z28000
21	Y-33F98040	Driver Plate w/Seal Y33F98040
22	Y-33012000	Driver Plate Seal Y33012000
23	Y-33E98120	Lock Washer Y33E98120
24	Y-33Z08000	Stop Washer Y33Z08000
25	Y-30803020	Right Hand Lock Nut (6 mm) Y30803020
26	Y-31414010	Cap Nut (3/8") Y31414010
27	Y-22006040	Washer (3.2 mm) for Axle Length 201 mm Y22006040
28	Y-33Z20500	Non-turn Washer 5R (Yellow) Y33Z20500
28	Y-33M39600	Non-turn Washer 6R (Silver) Y33M39600
28	Y-33M39700	Non-turn Washer 7R (Black) Y33M39700
29	Y-33M39510	Non-turn Washer 5L (Brown) Y33M39510
29	Y-33M39610	Non-turn Washer 6L (White) Y33M39610
29	Y-33M39710	Non-turn Washer 7L (Gray) Y33M39710
30	Y-75V13000	Brake Unit Fixing Nut (8.2 mm) Y75V13000
31	Y-75V16010	Grease Hole Cap Y75V16010
32	Y-33F98090	Brake Arm Clip Unit (5/8") Y33F98090
32	Y-33F98100	Brake Arm Clip Unit (3/4") Y33F98100
33	Y-75P98030	Brake Cable Adjusting Bolt Unit Y75P98030
34	Y-75M98070	Inner Cable Fixing Bolt Unit Y75M98070
35	Y-31Z06020	Lock Nut for Left Hand Cone Y31Z06020
36	Y-30898070	Left Hand Cone w/Dust Cap Y30898070
37	Y-30898080	Ball Retainer I (3/16" x 11) Y30898080
38	Y-32203220	Sprocket Wheel 16T (Silver) Y32203220
38	Y-32203420	Sprocket Wheel 18T (Silver) Y32203420
38	Y-32203520	Sprocket Wheel 19T (Silver) Y32203520
38	Y-32203620	Sprocket Wheel 20T (Silver) Y32203620
38	Y-33060000	Sprocket Wheel 21T (Silver) Y33060000
38	Y-33060100	Sprocket Wheel 22T (Silver) Y33060100
39	Y-32120010	Snap Ring C Y32120010
40	Y-74Y98010	CJ-7S40 Cassette Joint Unit Y74Y98010
41	Y-74Y02000	Cassette Joint Pulley Y74Y02000
42	Y-74Y98020	Cassette Joint Bracket Y74Y98020
43	Y-33Z98020	Cassette Joint Fixing Ring Y33Z98020
44	Y-74Y98030	Inner Cable Fixing Bolt Unit for CJ-7S40 Y74Y98030
45	Y-30889000	TL-7S40-B Right Hand Cone Tool Y30889000
46	Y-04120600	Internal Hub Grease (Net. 100g) Y04120600
46	Y-04120400	Roller Brake Grease (Net. 100g) Y04120400
47	Y-04140020	Roller Brake Grease (Net. 10g) Y04140020
