Sram MONARCH XX B1 (2014)

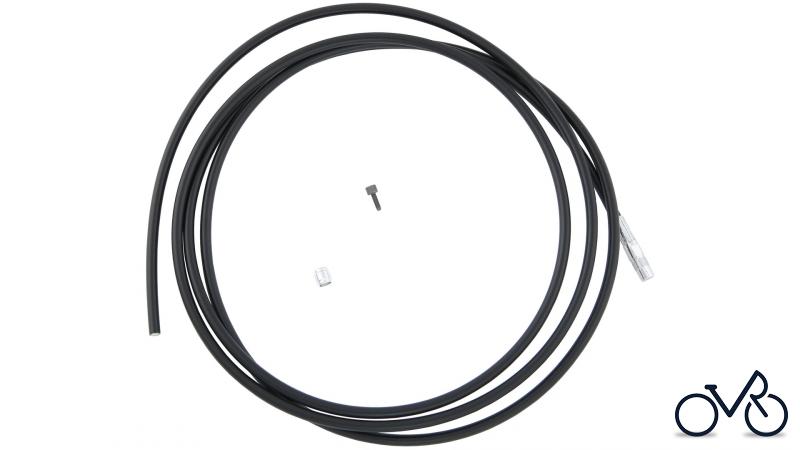

Hydraulic Hose/Barb/Compression Fitting XLoc Monarch XX Full Sprint Connectamajig 2000mm Qty 1 (use with suspension fluid only) B1

Sram Hydraulic Hose/Barb/Compression Fitting XLoc Monarch XX Full Sprint Connectamajig 2000mm Qty 1 (use with suspension fluid only) B1
Article Number:
11.4318.002.020
Pos:
21
29.40 €
for EU incl. VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: delivery time approx. 5 working days.
Sram RockShox MONARCH XX B1 (2014)

Here you will find the spare parts drawing for Sram RockShox MONARCH XX B1 (2014). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
1 11.4118.034.013Damper Assy - Monarch XX 152X32 Mid Rebound/Mid Compression Black B1 11.4118.034.013
1 11.4118.034.014Damper Assy - Monarch XX 165X38 Mid Rebound/Mid Compression Black B1 11.4118.034.014
1 11.4118.034.015Damper Assy - Monarch XX 184X44 Mid Rebound/Mid Compression Black B1 11.4118.034.015
1 11.4118.034.016Damper Assy - Monarch XX 190x51 Mid Rebound/Mid Compression Black B1 11.4118.034.016
1 11.4118.034.017Damper Assy - Monarch XX 200X51 Mid Rebound/Mid Compression Black B1 11.4118.034.017
1 11.4118.034.018Damper Assy - Monarch XX 165X38 Mid Rebound/Mid Compression Black High Volume Eyelet B1 11.4118.034.018
1 11.4118.034.019Damper Assy - Monarch XX 184X44 Mid Rebound/Mid Compression Black High Volume Eyelet B1 11.4118.034.019
1 11.4118.034.020Damper Assy - Monarch XX 190x51 Mid Rebound/Mid Compression Black High Volume Eyelet B1 11.4118.034.020
1 11.4118.034.021Damper Assy - Monarch XX 200X51 Mid Rebound/Mid Compression Black High Volume Eyelet B1 11.4118.034.021
2 11.4118.033.008Air Can Assembly Monarch Black 152x31, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.008
2 11.4118.033.009Air Can Assembly Monarch Black 165x38, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.009
2 11.4118.033.010Air Can Assembly Monarch Black 184x44, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.010
2 11.4118.033.011Air Can Assembly Monarch Black 190x51/200x51, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.011
2 11.4118.033.012Air Can Assembly Monarch Black 200x57, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.012
2 11.4118.033.013Air Can Assembly Monarch Black 216x63, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.013
2 11.4118.033.018Air Can Assembly Monarch White 152x31, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.018
2 11.4118.033.019Air Can Assembly Monarch White 165x38, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.019
2 11.4118.033.020Air Can Assembly Monarch White 184x44, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.020
2 11.4118.033.021Air Can Assembly Monarch White 190x51/200x51, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.021
2 11.4118.033.022Air Can Assembly Monarch White 200x57, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.022
2 11.4118.033.023Air Can Assembly Monarch White 216x63, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.023
3 11.4118.033.014Air Can Assembly Monarch Black High Volume 165x38, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.014
3 11.4118.033.015Air Can Assembly Monarch Black High Volume 190x51/200x51, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.015
3 11.4118.033.016Air Can Assembly Monarch Black High Volume 200x57, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.016
3 11.4118.033.017Air Can Assembly Monarch Black High Volume 216x63, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.017
3 11.4118.033.024Air Can Assembly Monarch White High Volume 165x38, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.024
3 11.4118.033.025Air Can Assembly Monarch White High Volume 190x51/200x51, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.025
3 11.4118.033.026Air Can Assembly Monarch White High Volume 200x57, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.026
3 11.4118.033.027Air Can Assembly Monarch White High Volume 216x63, B1(Plus,RL,XX), C1(R,RT,RT3) 11.4118.033.027
4 11.4118.035.006Eyelet Assembly - Monarch XX B1 11.4118.035.006
4 11.4118.035.014Eyelet Assembly - Monarch White XX B1 11.4118.035.014
5 11.4118.035.007Eyelet Assembly - Monarch XX HVI B1 11.4118.035.007
5 11.4118.035.015Eyelet Assembly - Monarch White XX HVI B1 11.4118.035.015
6 11.4118.036.007Shaft & Adjuster Rod Kit - Monarch XX 152x31 B1 11.4118.036.007
6 11.4118.036.008Shaft & Adjuster Rod Kit - Monarch XX 165x38 B1 11.4118.036.008
6 11.4118.036.009Shaft & Adjuster Rod Kit - Monarch XX 184x44 B1 11.4118.036.009
6 11.4118.036.010Shaft & Adjuster Rod Kit - Monarch XX 190x51 / 200x51 B1 11.4118.036.010
6 11.4118.036.011Shaft & Adjuster Rod Kit - Monarch XX 200x57/203x57 B1 11.4118.036.011
6 11.4118.036.012Shaft & Adjuster Rod Kit - Monarch XX 216x63 B1 11.4118.036.012
6 11.4118.036.013Shaft & Adjuster Rod Kit - Monarch XX 222x66 B1 11.4118.036.013
7 Sram Rebound Knob Assy Monarch XX A1-B1 11.4118.001.001Rebound Knob Assy Monarch XX A1-B1 11.4118.001.001
8 11.4118.023.019Tune Assy, Monarch XX/RT Reb-Low/Comp-Low 3 (CF-60lbs ), LF-320, B1(XX), C1(RT) 11.4118.023.019
8 11.4118.023.020Tune Assy, Monarch XX/RT Reb-Low/Comp-Low (CF-80lbs), LF-320, B1(XX), C1(RT) 11.4118.023.020
8 11.4118.023.021Tune Assy, Monarch XX/RT Reb-Low/Comp-Mid (CF-97lbs), LF-320, B1(XX), C1(RT) 11.4118.023.021
8 11.4118.023.022Tune Assy, Monarch XX/RT Reb-Mid/Comp-Low 3 (CF-60 lbs), LF-320, B1(XX), C1(RT) 11.4118.023.022
8 11.4118.023.023Tune Assy, Monarch XX/RT Reb-Mid/Comp-Low (CF-80lbs), LF-320, B1(XX), C1(RT) 11.4118.023.023
8 11.4118.023.024Tune Assy, Monarch XX/RT Reb-Mid/Comp-Mid (CF-97lbs), LF-320, B1(XX), C1(RT) 11.4118.023.024
8 11.4118.023.025Tune Assy, Monarch XX/RT Reb-Mid/Comp-High (CF-110lbs), LF-320, B1(XX), C1(RT) 11.4118.023.025
8 11.4118.023.026Tune Assy, Monarch XX/RT Reb-High/Comp-High (CF-110lbs), LF-320, B1(XX), C1(RT) 11.4118.023.026
8 11.4118.023.027Tune Assy, Monarch XX/RL Reb-Low/Comp-Low 3 (CF-60lbs ), LF-430, B1 11.4118.023.027
8 11.4118.023.028Tune Assy, Monarch XX/RL Reb-Low/Comp-Low (CF-80lbs), LF-430, B1 11.4118.023.028
8 11.4118.023.029Tune Assy, Monarch XX/RL Reb-Low/Comp-Mid (CF-97lbs), LF-430, B1 11.4118.023.029
8 11.4118.023.030Tune Assy, Monarch XX/RL Reb-Mid/Comp-Low 3 (CF-60 lbs), LF-430, B1 11.4118.023.030
8 11.4118.023.031Tune Assy, Monarch XX/RL Reb-Mid/Comp-Low (CF-80lbs), LF-430, B1 11.4118.023.031
8 11.4118.023.032Tune Assy, Monarch XX/RL Reb-Mid/Comp-Mid (CF-97lbs), LF-430, B1 11.4118.023.032
8 11.4118.023.033Tune Assy, Monarch XX/RL Reb-Mid/Comp-High (CF-110lbs), LF-430, B1 11.4118.023.033
8 11.4118.023.034Tune Assy, Monarch XX/RL Reb-High/Comp-High (CF-110lbs), LF-430, B1 11.4118.023.034
9 11.4118.037.000Damper Body/IFP - Monarch RT3/RL/RT/R 152X31, B1(RL,XX), C1(R,RT,RT3) 11.4118.037.000
9 11.4118.037.001Damper Body/IFP - Monarch RT3/RL/RT/R 165x38, B1(RL,XX), C1(R,RT,RT3) 11.4118.037.001
9 11.4118.037.002Damper Body/IFP - Monarch RT3/RL/RT/R 184x44, B1(RL,XX), C1(R,RT,RT3) 11.4118.037.002
9 11.4118.037.003Damper Body/IFP - Monarch Plus/RT3/RL/RT/R 190x51, B1(Plus,RL,XX), C1(R,RT,Plus/RT3) 11.4118.037.003
9 11.4118.037.004Damper Body/IFP - Monarch Plus/RT3/RL/RT/R 200x51, B1(Plus,RL,XX), C1(R,RT,Plus/RT3) 11.4118.037.004
9 11.4118.037.005Damper Body/IFP - Monarch Plus/RT3/RL/RT/R 200x57, B1(Plus,RL,XX), C1(R,RT,Plus/RT3) 11.4118.037.005
9 11.4118.037.006Damper Body/IFP - Monarch Plus/RT3/RL/RT/R 203x57, B1(Plus,RL,XX), C1(R,RT,Plus/RT3) 11.4118.037.006
9 11.4118.037.007Damper Body/IFP - Monarch Plus/RT3/RL/RT/R 216x63, B1(Plus,RL,XX), C1(R,RT,Plus/RT3) 11.4118.037.007
9 11.4118.037.008Damper Body/IFP - Monarch Plus/RT3/RL/RT/R 222x66, B1(Plus,RL,XX), C1(R,RT,Plus/RT3) 11.4118.037.008
10 Sram Service Kit Full - Monarch XX B1 11.4118.038.001Service Kit Full - Monarch XX B1 11.4118.038.001
11 Sram AM Rear Shock Air Can Service Kit, Basic - Monarch B1(Plus,XX,RL) C1 (R,RT3) 00.4315.032.380AM Rear Shock Air Can Service Kit, Basic - Monarch B1(Plus,XX,RL) C1 (R,RT3) 00.4315.032.380
12 Sram AM Rear Shock Air Can Service Kit, Basic - Monarch High Volume B1(Plus,XX,RL) C1 (R,RT3) 00.4315.032.390AM Rear Shock Air Can Service Kit, Basic - Monarch High Volume B1(Plus,XX,RL) C1 (R,RT3) 00.4315.032.390
13 11.4115.132.010Ball Nylon, Bleed, Fixed Piston - Monarch/Monarch Plus, Qty 20 11.4115.132.010
14 Sram Schrader Valve Core Qty 2 11.4308.327.002Schrader Valve Core Qty 2 11.4308.327.002
15 Sram Rear Shock Eyelet Bushing 1/2”X1/2” Qty 2 11.4115.013.000Rear Shock Eyelet Bushing 1/2”X1/2” Qty 2 11.4115.013.000
16 Sram Banjo/Compression Fitting/Threaded Barb Kit - Monarch XX 11.4118.002.000Banjo/Compression Fitting/Threaded Barb Kit - Monarch XX 11.4118.002.000
17 Sram Remote Xloc Monarch XX Left Black (hose/banjo) 11.4318.000.000Remote Xloc Monarch XX Left Black (hose/banjo) 11.4318.000.000
17 Sram Remote Xloc Monarch XX Right Black (hose/banjo) 11.4318.000.010Remote Xloc Monarch XX Right Black (hose/banjo) 11.4318.000.010
ns Sram Xloc Remote Service Kit MN XX 11.4318.001.000Xloc Remote Service Kit MN XX 11.4318.001.000
18 Sram Remote XLoc Full Sprint Left Gold Adjuster (includes hose/banjo) 11.4315.013.070Remote XLoc Full Sprint Left Gold Adjuster (includes hose/banjo) 11.4315.013.070
18 Sram Remote XLoc Full Sprint Right Gold Adjuster (includes hose/banjo) 11.4315.013.080Remote XLoc Full Sprint Right Gold Adjuster (includes hose/banjo) 11.4315.013.080
ns 11.4318.006.000XLoc Full Sprint Remote Service Kit 11.4318.006.000
19 Sram Connectamajig Collar Suspension Black - Reverb/XLoc Full sprint 11.4318.005.000Connectamajig Collar Suspension Black - Reverb/XLoc Full sprint 11.4318.005.000
20 Sram Hydraulic Hoses/Barbs/Compression Fittings XLoc Monarch XX 1250mm Qty 2 (use with suspension fluid only) A2-B1 (2013-2014) 11.4318.002.040Hydraulic Hoses/Barbs/Compression Fittings XLoc Monarch XX 1250mm Qty 2 (use with suspension fluid only) A2-B1 (2013-2014) 11.4318.002.040
20 11.4318.002.050Hydraulic Hoses/Barbs/Compression Fittings XLoc Monarch XX 1250mm Qty 10 (use with suspension fluid only) A2-B1 (2013-2014) 11.4318.002.050
21 Sram Hydraulic Hose/Barb/Compression Fitting XLoc Monarch XX Full Sprint Connectamajig 2000mm Qty 1 (use with suspension fluid only) B1 11.4318.002.020Hydraulic Hose/Barb/Compression Fitting XLoc Monarch XX Full Sprint Connectamajig 2000mm Qty 1 (use with suspension fluid only) B1 11.4318.002.020
21 11.4318.002.030Hydraulic Hoses/Barbs/Compression Fittings XLoc Monarch XX Full Sprint Connectamajig 2000mm Qty 10 (use with suspension fluid only) B1 11.4318.002.030
ns 11.4318.003.239Decal Kit Monarch R/RL/RT3/XX White Can 190/200 B1(RL,XX), C1(R,RT3) 11.4318.003.239
ns 11.4318.003.240Decal Kit Monarch R/RL/RT3/XX Black Can 190/200 B1(RL,XX), C1(R,RT3) 11.4318.003.240
ns 11.4318.003.241Decal Kit Monarch R/RL/RT3/XX White Can 216 B1(RL,XX), C1(R,RT3) 11.4318.003.241
ns 11.4318.003.242Decal Kit Monarch R/RL/RT3/XX Black Can 216 B1(RL,XX), C1(R,RT3) 11.4318.003.242
ns 11.4318.003.243Decal Kit Monarch R/RL/RT3/XX High Volume White Can 165 B1(RL,XX), C1(R,RT3) 11.4318.003.243
ns 11.4318.003.244Decal Kit Monarch R/RL/RT3/XX High Volume Black Can 165 B1(RL,XX), C1(R,RT3) 11.4318.003.244
ns 11.4318.003.245Decal Kit Monarch R/RL/RT3/XX High Volume White Can 190/200 B1(RL,XX), C1(R,RT3) 11.4318.003.245
ns 11.4318.003.246Decal Kit Monarch R/RL/RT3/XX High Volume Black Can 190/200 B1(RL,XX), C1(R,RT3) 11.4318.003.246
ns 11.4318.003.247Decal Kit Monarch R/RL/RT3/XX High Volume White Can 216 B1(RL,XX), C1(R,RT3) 11.4318.003.247
ns 11.4318.003.248Decal Kit Monarch R/RL/RT3/XX High Volume Black Can 216 B1(RL,XX), C1(R,RT3) 11.4318.003.248
ns 11.4115.115.010Decal, Rear Shock, Tune (ML) - 2011 Vivid/Monarch Qty 10 11.4115.115.010
ns 11.4115.115.020Decal, Rear Shock, Tune (MM) - 2011 Vivid/Monarch Qty 10 11.4115.115.020
ns 11.4115.115.030Decal, Rear Shock, Tune (MH) - 2011 Vivid/Monarch Qty 10 11.4115.115.030
ns 11.4115.115.040Decal, Rear Shock, Tune (ML3) - 2011 Vivid/Monarch Qty 10 11.4115.115.040
ns 11.4115.115.050Decal, Rear Shock, Tune (MH3) - 2011 Vivid/Monarch Qty 10 11.4115.115.050
ns 11.4115.115.060Decal, Rear Shock, Tune (LL3) - 2011 Vivid/Monarch Qty 10 11.4115.115.060
ns 11.4115.115.070Decal, Rear Shock, Tune (LL) - 2011 Vivid/Monarch Qty 10 11.4115.115.070
ns 11.4115.115.080Decal, Rear Shock, Tune (LM) - 2011 Vivid/Monarch Qty 10 11.4115.115.080
ns 11.4115.115.090Decal, Rear Shock, Tune (LH) - 2011 Vivid/Monarch Qty 10 11.4115.115.090
ns 11.4115.115.100Decal, Rear Shock, Tune (LH3) - 2011 Vivid/Monarch Qty 10 11.4115.115.100
ns 11.4115.115.110Decal, Rear Shock, Tune (HL) - 2011 Vivid/Monarch Qty 10 11.4115.115.110
ns 11.4115.115.120Decal, Rear Shock, Tune (HL3) - 2011 Vivid/Monarch Qty 10 11.4115.115.120
ns 11.4115.115.130Decal, Rear Shock, Tune (HM) - 2011 Vivid/Monarch Qty 10 11.4115.115.130
ns 11.4115.115.140Decal, Rear Shock, Tune (HH) - 2011 Vivid/Monarch Qty 10 11.4115.115.140
ns 11.4115.115.150Decal, Rear Shock, Tune (HH3) - 2011 Vivid/Monarch Qty 10 11.4115.115.150
22 Sram Air Valve Adapter Tool - RockShox Monarch 00.4315.027.010Air Valve Adapter Tool - RockShox Monarch 00.4315.027.010
23 Sram Rear Shock Vise blocks, RockShox Monarch/Vivid/Vivid Air 00.4115.154.010Rear Shock Vise blocks, RockShox Monarch/Vivid/Vivid Air 00.4115.154.010
24 Sram Rear Shock Body Vise blocks, RockShox Monarch 00.4118.013.000Rear Shock Body Vise blocks, RockShox Monarch 00.4118.013.000
25 Sram 1/2”x1/2” Rear Shock Bushing Tool (Eyelet/SealHead) RockShox 00.4315.026.0101/2”x1/2” Rear Shock Bushing Tool (Eyelet/SealHead) RockShox 00.4315.026.010
ns Sram Schrader Valve Removal Tool Rockshox 00.4315.022.010Schrader Valve Removal Tool Rockshox 00.4315.022.010
ns Sram High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010
ns Sram High-Pressure Fork/Shock Pump (600 psi Max) RockShox 00.4315.023.030High-Pressure Fork/Shock Pump (600 psi Max) RockShox 00.4315.023.030
ns Sram Lubricant, Rear Shock Air Can, Maxima 15W 50, 1 Liter Bottle 11.4115.094.010Lubricant, Rear Shock Air Can, Maxima 15W 50, 1 Liter Bottle 11.4115.094.010
ns Sram Lubricant, Rear Shock Seals, Parker O-Lube, 2g tube 11.4115.094.020Lubricant, Rear Shock Seals, Parker O-Lube, 2g tube 11.4115.094.020
ns Sram RockShox Rear Suspension Damping Fluid 7wt 16oz bottle 11.4315.004.030RockShox Rear Suspension Damping Fluid 7wt 16oz bottle 11.4315.004.030
ns Sram RockShox Rear Suspension Damping Fluid 7wt 120ml bottle11.4315.021.060RockShox Rear Suspension Damping Fluid 7wt 120ml bottle 11.4315.021.060
