Sram SID A - 80mm/100mm (2008-2014) Dual Air

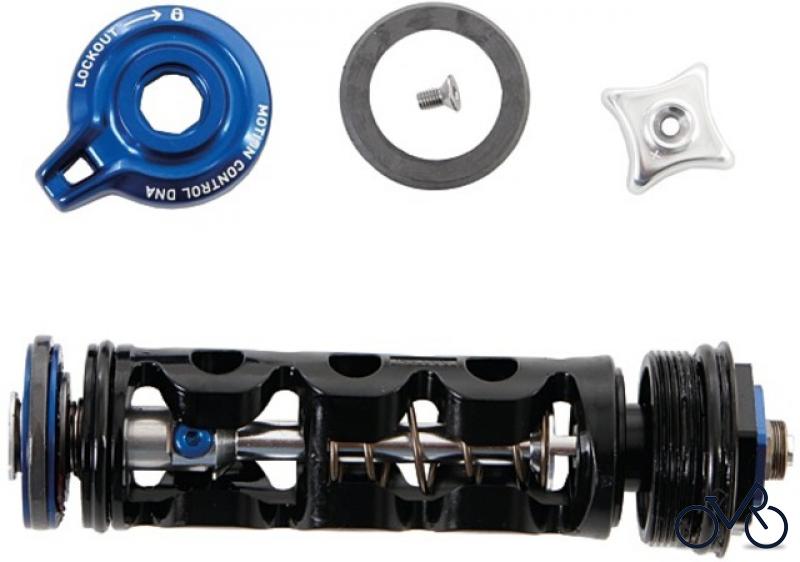

Compression Damper, Crown Adjust, Black, Motion Control RCT3DNA (includes comp damper and knobs) - SIDA (80/1 00mm chassis only) 2009-2012

Sram Compression Damper, Crown Adjust, Black, Motion Control RCT3DNA (includes comp damper and knobs) - SIDA (80/1 00mm chassis only) 2009-2012
Article Number:
11.4015.544.030
Pos:
14
ROCKSHOX SID Team/World Cup BlackBox Motion Control 2008-2010 (32 mm) Ausführung: Druckstufe BlackBox Motion Control, Standard, schwarz
no longer available
Sram RockShox SID A - 80mm/100mm (2008-2014) Dual Air

Here you will find the spare parts drawing for Sram RockShox SID A - 80mm/100mm (2008-2014) Dual Air. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
1 11.4018.006.160Lower Leg SID/Reba 26Q Disc Black (decals not included) A1-A3 (Sid 2011-2014, Reba 2012-2014) 11.4018.006.160
1 11.4018.006.161Lower Leg SID/Reba 26Q Disc White (decals not included) A1-A3 (Sid 2011-2014, Reba 2012-2014) 11.4018.006.161
1 11.4018.006.055Lower Leg SIDA XX World Cup 26Q 80/100 Disc Keronite Grey/Silver 11.4018.006.055
1 11.4018.006.058Lower Leg SIDA World Cup 26Q 80/100 Disc Keronite Grey/Silver 11.4018.006.058
2a 11.4015.289.000SIDA CSU Alum Black 32mm 1 1/8” (Dual Air 80/100mm only) 11.4015.289.000
2a 11.4015.289.010SIDA CSU Alum White 32mm 1 1/8” (Dual Air 80/100mm only) 11.4015.289.010
2a 11.4015.289.050SIDA XX CSU Alum Black 32mm 1 1/8” (Dual Air 80/100mm only) 11.4015.289.050
2a 11.4015.289.060SIDA XX CSU Alum White 32mm 1 1/8” (Dual Air 80/100mm only) 11.4015.289.060
2b 11.4015.289.080SIDA CSU Tapered Aluminum Black 32mm (Dual Air 80/100mm only) 11.4015.289.080
2b 11.4015.289.090SIDA CSU Tapered Aluminum White 32mm (Dual Air 80/100mm only) 11.4015.289.090
2b 11.4015.289.110SIDA XX CSU Tapered Aluminum Black 32mm 1 1/8” (Dual Air 80/100mm only) 11.4015.289.110
2b 11.4015.289.120SIDA XX CSU Tapered Aluminum White 32mm 1 1/8” (Dual Air 80/100mm only) 11.4015.289.120
2c 11.4015.289.040SIDA XX CSU Carbon 32mm 1 1/8” (Dual Air 80/100mm only) 11.4015.289.040
2c 11.4015.289.160SIDA WC CSU Carbon 1 1/8” 32mm (Dual Air 80/100mm only) 11.4015.289.160
3 Sram SID Carbon Steerer Tube Expander Plug 11.4306.531.000SID Carbon Steerer Tube Expander Plug 11.4306.531.000
ns Sram Brake Post Kit Titanium (Qty 2) 11.4307.470.000Brake Post Kit Titanium (Qty 2) 11.4307.470.000
ns Sram Brake Post Kit Steel (Qty 2) 11.4307.469.000Brake Post Kit Steel (Qty 2) 11.4307.469.000
4 Sram Dust Seal/Foam Ring Grey 32mm Seal, 5mm Foam Ring- SID 2011-2013 /Reba 2012-2013 11.4015.489.010Dust Seal/Foam Ring Grey 32mm Seal, 5mm Foam Ring- SID 2011-2013 /Reba 2012-2013 11.4015.489.010
5 11.4015.292.000Shaft Fastener Kit (rebound shaft bolt/dual air nut) - 2008-2012 SID/2009-2011 Reba 29”/2012 Reba 11.4015.292.000
6 Sram Rebound Damper Adjuster Knob/Shaft Bolt Kit - 2008-2014 SID/2012-2014 Reba 11.4015.293.000Rebound Damper Adjuster Knob/Shaft Bolt Kit - 2008-2014 SID/2012-2014 Reba 11.4015.293.000
7 11.4015.294.000Compression Knob (set screw)/External Floodgate Adjuster Knob Alum, Motion Control - SID RLT (2009-2011)/Reba RLT (2011-2012)/Revelation RLT (2011-2012) 11.4015.294.000
8 Sram Compression Remote Spool 17mm (set screw)/External FloodgateAdj Knob/Cable Clamp, Motion Control-SIDRLT 09-11/RebaRLT 11-12/RevelationRLT 11-12 (not compatible w/13PushLoc 10mm) 11.4015.295.000Compression Remote Spool 17mm (set screw)/External FloodgateAdj Knob/Cable Clamp, Motion Control-SIDRLT 09-11/RebaRLT 11-12/RevelationRLT 11-12 (not compatible w/13PushLoc 10mm) 11.4015.295.000
9 11.4015.296.000Compression Damper, Crown Adjust, Motion Control, Black (includes - comp knob/external gate knob) - 08-11 SID Race/RLT (80/100mm only) 11.4015.296.000
10 11.4015.296.010Compression Damper, Remote Adjust 17mm, Motion Control, Black (includes - cable clamp/remote spool/external gate knob) 08-11 SIDA Race/RLT (80/100mm only) 11.4015.296.010
11 Sram Compression Knob (set screw)/Floodgate Adjuster Knob Carbon,Black Box Motion Control - SID Reba (2009-2011) 11.4015.294.010Compression Knob (set screw)/Floodgate Adjuster Knob Carbon,Black Box Motion Control - SID Reba (2009-2011) 11.4015.294.010
12 11.4015.295.010Compression Remote Spool 17mm (set screw)/Floodgate AdjusterKnob/Cable Clamp, Black Box Motion Control - SID Reba 09-11 (not compatible with 2013 PushLoc 10mm)(not compatible with 2013 PushLoc 10mm) 11.4015.295.010
13 11.4015.547.010Knob Kit, Compression Damper, RCT3 - SID/REVELATION A1-A3 (2012-2014) 11.4015.547.010
14 Sram Compression Damper, Crown Adjust, Black, Motion Control RCT3DNA (includes comp damper and knobs) - SIDA (80/1 00mm chassis only) 2009-2012 11.4015.544.030Compression Damper, Crown Adjust, Black, Motion Control RCT3DNA (includes comp damper and knobs) - SIDA (80/1 00mm chassis only) 2009-2012 11.4015.544.030
15 Sram Remote XLoc Left Gold Adjuster (includes hose/banjo) 2014 11.4315.013.050Remote XLoc Left Gold Adjuster (includes hose/banjo) 2014 11.4315.013.050
15 Sram Remote XLoc Right Gold Adjuster (includes hose/banjo) 2014 11.4315.013.060Remote XLoc Right Gold Adjuster (includes hose/banjo) 2014 11.4315.013.060
16 Sram Remote XLoc Full Sprint Left Gold Adjuster (includes hose/banjo) 11.4315.013.070Remote XLoc Full Sprint Left Gold Adjuster (includes hose/banjo) 11.4315.013.070
16 Sram Remote XLoc Full Sprint Right Gold Adjuster (includes hose/banjo) 11.4315.013.080Remote XLoc Full Sprint Right Gold Adjuster (includes hose/banjo) 11.4315.013.080
ns 11.4318.006.000XLoc Full Sprint Remote Service Kit 11.4318.006.000
17 Sram Button/Boot/Master Piston Assembly, XLoc Left 11.4315.014.010Button/Boot/Master Piston Assembly, XLoc Left 11.4315.014.010
17 Sram Button/Boot/Master Piston Assembly, XLoc Right 11.4315.014.020Button/Boot/Master Piston Assembly, XLoc Right 11.4315.014.020
17 11.4318.007.000Button/Boot/Master Piston Assembly, XLoc Full Sprint, Gold Adjuster 11.4318.007.000
18 Sram Clamp/Bracket Hardware, XLoc Left, Ti Hardware 11.4315.016.010Clamp/Bracket Hardware, XLoc Left, Ti Hardware 11.4315.016.010
18 Sram Clamp/Bracket Hardware, XLoc Right, Ti Hardware 11.4315.016.020Clamp/Bracket Hardware, XLoc Right, Ti Hardware 11.4315.016.020
19 11.4315.017.000Floodgate Adjuster Assembly, Xloc - Silver Adjuster 11.4315.017.000
19 11.4318.008.000Floodgate Adjuster Assembly, Xloc Sprint/Full Sprint- 2014/Gold Adjuster 11.4318.008.000
20 11.4315.018.000Banjo/Retaining Ring, Xloc Qty 1 - Silver Adjuster 11.4315.018.000
20 11.4318.009.000Banjo/Retaining Ring, Xloc Sprint/Full Sprint Qty 1 - 2014/Gold Adjuster 11.4318.009.000
21 Sram XLoc Remote Service Kit 11.4315.019.000XLoc Remote Service Kit 11.4315.019.000
22 Sram Hydraulic Hose XLoc 460mm Qty 2 (use with suspension fluid only) - Silver Adjuster 11.4015.434.010Hydraulic Hose XLoc 460mm Qty 2 (use with suspension fluid only) - Silver Adjuster 11.4015.434.010
22 11.4015.434.020Hydraulic Hose XLoc 460mm Qty 10 (use with suspension fluid only) - Silver Adjuster 11.4015.434.020
22 Sram Hydraulic Hose XLoc 500mm Qty 2 (use with suspension fluid only) - Sprint/Full Sprint, 2014/ Gold Adjuster 11.4015.434.030Hydraulic Hose XLoc 500mm Qty 2 (use with suspension fluid only) - Sprint/Full Sprint, 2014/ Gold Adjuster 11.4015.434.030
22 11.4015.434.040Hydraulic Hose XLoc 500mm Qty 10 (use with suspension fluid only) - Sprint/Full Sprint, 2014/ Gold Adjuster 11.4015.434.040
ns Sram ROCKSHOX Bleed Kit (XLoc/Totem) Qty 2 (includes two syringesand fittings, one torx tool) 11.4315.011.030ROCKSHOX Bleed Kit (XLoc/Totem) Qty 2 (includes two syringesand fittings, one torx tool) 11.4315.011.030
23 11.4015.297.010Rebound Damper and Seal Head Assembly/Shaft Bolt (BBMC Dual Flow) - 2009-2011 SIDA (80/100mm only) 11.4015.297.010
24 Sram Seal Head Assembly (Rebound Damper, Motion Control) - SIDA/Reba2009-2014 11.4015.353.010Seal Head Assembly (Rebound Damper, Motion Control) - SIDA/Reba2009-2014 11.4015.353.010
25 Sram Air Top Cap, Reba/SID/Revelation Black (32mm aluminum upper tubes only) 11.4018.012.002Air Top Cap, Reba/SID/Revelation Black (32mm aluminum upper tubes only) 11.4018.012.002
25 11.4018.012.003Air Top Cap, Reba/SID/Revelation Silver (32mm aluminum uppertubes only) 11.4018.012.003
26 11.4015.546.030Spring Assembly (Dual Air) and Air Top Cap Kit - 2012 SIDA 26” (80-100mm chassis only) (not compatible with 2013 Solo Air CSU) 11.4015.546.030
27 Sram All-Travel Spacer Kit (not compatible with SID/Reba/Revelation Solo Air Spring) 11.4015.450.000All-Travel Spacer Kit (not compatible with SID/Reba/Revelation Solo Air Spring) 11.4015.450.000
28 Sram Remote Upgrade Kit, Xloc Full Sprint, Revelation, Left, MMX,Black (includes Motion Control X DNA comp damper, rear shoc k hydraulic hose, bleed syringes) 00.4318.004.003Remote Upgrade Kit, Xloc Full Sprint, Revelation, Left, MMX,Black (includes Motion Control X DNA comp damper, rear shoc k hydraulic hose, bleed syringes) 00.4318.004.003
28 Sram Remote Upgrade Kit, Xloc Full Sprint, Revelation, Right, MMX, Black (includes Motion Control X DNA comp damper, rear shock hydraulic hose, bleed syringes) 00.4318.004.004Remote Upgrade Kit, Xloc Full Sprint, Revelation, Right, MMX, Black (includes Motion Control X DNA comp damper, rear shock hydraulic hose, bleed syringes) 00.4318.004.004
29 Sram Remote Upgrade Kit, XLoc Sprint, Revelation, Left, MMX, Black (includes Motion Control X DNA comp damper, bleed syringes) 00.4318.004.007Remote Upgrade Kit, XLoc Sprint, Revelation, Left, MMX, Black (includes Motion Control X DNA comp damper, bleed syringes) 00.4318.004.007
29 Sram Remote Upgrade Kit, XLoc Sprint, Revelation, Right, MMX, Black (includes Motion Control X DNA comp damper, bleed syringes) 00.4318.004.008Remote Upgrade Kit, XLoc Sprint, Revelation, Right, MMX, Black (includes Motion Control X DNA comp damper, bleed syringes) 00.4318.004.008
30 Sram Schrader Valve Core Qty 2 11.4308.327.002Schrader Valve Core Qty 2 11.4308.327.002
ns Sram Service Kit 08-12 SIDA (80/100mm chassis only) 11.4015.300.000Service Kit 08-12 SIDA (80/100mm chassis only) 11.4015.300.000
31 Sram AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Reba and SID (2012-2013) 00.4315.032.080AM Fork Service Kit, Basic (includes dust seals, foam rings, o-ring seals) - Reba and SID (2012-2013) 00.4315.032.080
ns 11.4318.003.299Decal Kit SID 26 Silver/White Lower Leg A3 11.4318.003.299
ns 11.4318.003.300Decal Kit SID 26 Silver/Black Lower Leg A3 11.4318.003.300
ns 11.4318.003.301Decal Kit SID 26 Silver/Diffusion Black Lower Leg A3 11.4318.003.301
ns 11.4318.003.302Decal Kit SID 27.5 Silver/White Lower Leg A3 11.4318.003.302
ns 11.4318.003.303Decal Kit SID 27.5 Silver/Black Lower Leg A3 11.4318.003.303
ns 11.4318.003.304Decal Kit SID 27.5 Silver/Diffusion Black Lower Leg A3 11.4318.003.304
ns 11.4318.003.305Decal Kit SID 29 Silver/White Lower Leg A3 11.4318.003.305
ns 11.4318.003.306Decal Kit SID 29 Silver/Black Lower Leg A3 11.4318.003.306
ns 11.4318.003.307Decal Kit SID 29 Silver/Diffusion Black Lower Leg A3 11.4318.003.307
bulk Sram Crush Washer 8mm, Qty 50 11.4015.259.000Crush Washer 8mm, Qty 50 11.4015.259.000
bulk Sram Crush Washer Retainer, Qty 50 11.4015.260.000Crush Washer Retainer, Qty 50 11.4015.260.000
bulk Sram Dust Seal 32mm Grey - SID/Revelation/Reba/Argyle/Sektor/Tora/Recon/XC32 QTY 20 11.4310.695.000Dust Seal 32mm Grey - SID/Revelation/Reba/Argyle/Sektor/Tora/Recon/XC32 QTY 20 11.4310.695.000
bulk Sram Foam Ring 32mm x 5mm - SID A1-A3 /Reba A2-A3 Qty 20 11.4015.496.010Foam Ring 32mm x 5mm - SID A1-A3 /Reba A2-A3 Qty 20 11.4015.496.010
ns Sram High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010
ns Sram Schrader Valve Removal Tool Rockshox00.4315.022.010Schrader Valve Removal Tool Rockshox 00.4315.022.010
