Sram REVERB / REVERB STEALTH

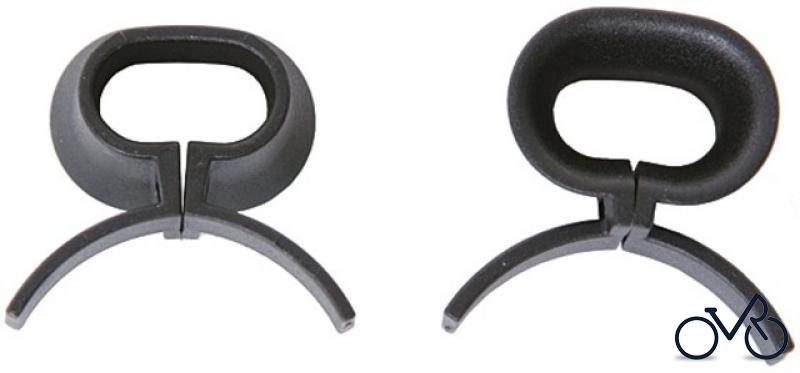

Cable/Hose Line Guide, Black - RockShox Qty 2

Sram Cable/Hose Line Guide, Black - RockShox Qty 2
Article Number:
00.4315.020.010
Pos:
38
ROCKSHOX Ersatz für Variosattelstütze "Reverb / Reverb Stealth" Ausführung: Kabelführung
9.45 €
for EU incl. VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: delivery time approx. 5 working days.
Sram RockShox REVERB / REVERB STEALTH

Here you will find the spare parts drawing for Sram RockShox REVERB / REVERB STEALTH. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
1 116.815.006.010Post Clamp Kit - Reverb (includes upper/lower clamp plates/clamp nuts/clamp bolts) 116.815.006.010
2 116.815.007.010Clamp Nut and Bolt Kit - Reverb 116.815.007.010
3 116.818.013.000Reverb Poppet Kit A1 116.818.013.000
4 116.818.013.010Reverb Poppet Kit A2 116.818.013.010
5 116.818.014.000Reverb Stealth Air Valve Assembly 116.818.014.000
6 116.818.015.000Reverb Upper Assy 100mm A1 116.818.015.000
6 116.818.015.010Reverb Upper Assy 125mm A1 116.818.015.010
6 116.818.015.020Reverb Upper Assy 100mm A2 116.818.015.020
6 116.818.015.030Reverb Upper Assy 125mm A2 116.818.015.030
7 116.818.015.040Reverb Stealth Upper Assy 100mm A1 116.818.015.040
7 116.818.015.050Reverb Stealth Upper Assy 125mm A1 116.818.015.050
7 116.818.015.060Reverb Stealth Upper Assy 150mm A1 116.818.015.060
8 116.818.016.000Reverb/Reverb Stealth IFP Tube 100mm 116.818.016.000
8 116.818.016.010Reverb/Reverb Stealth IFP Tube 125mm 116.818.016.010
8 116.818.016.020Reverb/Reverb Stealth IFP Tube 150mm 116.818.016.020
9 116.818.017.000Reverb Inner SealHead 116.818.017.000
10 116.818.017.010Reverb Stealth Inner SealHead 116.818.017.010
11 116.818.018.000Reverb Main Piston/Shaft 355X100mm/380X125mm 116.818.018.000
11 116.818.018.010Reverb Main Piston/Shaft 420x100mm 116.818.018.010
11 116.818.018.020Reverb Main Piston/Shaft 420x125mm 116.818.018.020
12 116.818.019.000Reverb Stealth A1 Main Piston/Poppet Kit 355x100mm/380x125mm 116.818.019.000
12 116.818.019.010Reverb Stealth A1 Main Piston/Poppet Kit 420x100mm 116.818.019.010
12 116.818.019.020Reverb Stealth A1 Main Piston/Poppet Kit 420x125mm 116.818.019.020
12 116.818.019.030Reverb Stealth A2 Main Piston/Poppet Kit 355x100mm/380x125mm 116.818.019.030
12 116.818.019.040Reverb Stealth A2 Main Piston/Poppet Kit 420x100mm 116.818.019.040
12 116.818.019.050Reverb Stealth A2 Main Piston/Poppet Kit 420x125mm 116.818.019.050
12 116.818.019.060Reverb Stealth Main Piston/Poppet Kit 430x150mm 116.818.019.060
13 116.815.030.010Lower Hose Barb Assembly Kit - Reverb Stealth 116.815.030.010
14 116.815.009.010Lower/Outer Tube 355x100, 380x125/100 30.9 - Reverb (includes lower/outer tube only) 116.815.009.010
14 116.815.009.020Lower/Outer Tube 355x100, 380x125/100 31.6 - Reverb (includes lower/outer tube only) 116.815.009.020
14 116.818.020.000Lower/Outer Tube 355/380 34.9 - Reverb (includes lower/outertube only) 116.818.020.000
14 116.815.009.030Lower/Outer Tube 420x125 30.9 - Reverb (includes lower/outertube only) 116.815.009.030
14 116.815.009.040Lower/Outer Tube 420x125 31.6 - Reverb (includes lower/outertube only) 116.815.009.040
14 116.818.020.020Lower/Outer Tube 420x100 34.9 - Reverb (includes lower/outertube only) 116.818.020.020
14 116.815.009.070Lower/Outer Tube 420x100 30.9 - Reverb (includes lower/outertube only) 116.815.009.070
14 116.815.009.080Lower/Outer Tube 420x100 31.6 - Reverb (includes lower/outertube only) 116.815.009.080
14 116.818.020.010Lower/Outer Tube 420x125 34.9 - Reverb (includes lower/outertube only) 116.818.020.010
14 116.818.020.030Lower/Outer Tube 430x150 30.9 - Reverb (includes lower/outertube only) 116.818.020.030
14 116.818.020.040Lower/Outer Tube 430x150 31.6 - Reverb (includes lower/outertube only) 116.818.020.040
14 116.818.020.050Lower/Outer Tube 430x150 34.9 - Reverb (includes lower/outertube only) 116.818.020.050
15 116.815.010.010Top Cap/Dust Wiper Assembly Kit - Reverb 116.815.010.010
15 116.815.010.020Top Cap Black/Dust Wiper Assembly Kit - Reverb 116.815.010.020
16 116.815.031.000Reverb Basic Service Kit (includes o-rings only) 116.815.031.000
17 116.818.003.000Reverb Complete Service Kit (Requires Post Bleed Tool, Oil Height Tool & IFP Height Tool) 116.818.003.000
18 116.818.021.000Reverb A2 Complete Service Kit 2013 (requires post bleed tool, oil height tool and IFP height tool) 116.818.021.000
19 116.818.022.000Reverb Stealth A2 Complete Service Kit 2013 (requires post bleed tool, oil height tool and IFP height tool) 116.818.022.000
20 116.818.023.000Reverb Volume Spacers 355x100mm 116.818.023.000
21 116.818.023.010Reverb Volume Spacers 420x100mm 116.818.023.010
22 116.818.023.020Reverb Volume Spacers 420x125mm 116.818.023.020
23 114.308.327.002Schrader Valve Core Qty 2 114.308.327.002
24a 116.815.025.010Hydraulic Hose (2000mm) Kit - Reverb (includes new hose, newstrain relief, new barb) 116.815.025.010
24a 116.815.025.020Hydraulic Hose White (2000mm) Kit - Reverb (includes new hose, new strain relief, new barb) 116.815.025.020
24b 116.815.025.030Hydraulic Hose (2000mm) Kit - Reverb Connectamajig (use only with Connectamajic Post) A2 116.815.025.030
25 116.815.028.010Strain Relief (Hydraulic Hose)- Reverb New 116.815.028.010
26 116.815.026.010Remote Lever Assembly/new hose Kit (Left/MMX) - Reverb (includes left remote lever, MMX clamp, new hose 1500mm, new hosebarb, new strain relief) 116.815.026.010
26 116.815.026.020Remote Lever Assembly/new hose Kit (Right/MMX) - Reverb (includes right remote lever, MMX clamp, new hose 1500mm, new hose barb, new strain relief) 116.815.026.020
26 116.815.026.030Remote Lever Assembly/new hose Kit (Left) - Reverb (includesleft remote lever, new hose 1500mm, new hose barb, new stra in relief) 116.815.026.030
26 116.815.026.040Remote Lever Assembly/new hose Kit (Right) - Reverb (includes right remote lever, new hose 1500mm, new hose barb, new strain relief) 116.815.026.040
26 116.815.026.050Remote Lever Assembly A2/hose Kit (Left/MMX) - Reverb (includes left remote lever, MMX clamp, discrete puck, new hose 2000mm, new hose barb, new strain relief) 116.815.026.050
26 116.815.026.060Remote Lever Assembly A2/hose Kit (Right/MMX) - Reverb (includes right remote lever, MMX clamp, discrete puck, new hose 2000mm, new hose barb, new strain relief) 116.815.026.060
27 116.815.015.010Remote Lever Service Kit - Reverb 116.815.015.010
28 116.818.024.001Remote Lever Service Kit - Reverb New A2 116.818.024.001
29 116.815.016.010Button Kit, Left, Remote - Reverb 116.815.016.010
29 116.815.016.020Button Kit, Right, Remote - Reverb 116.815.016.020
30 116.818.025.020Button Kit Reverb Remote, Left New A2 116.818.025.020
30 116.818.025.030Button Kit Reverb Remote, Right New A2 116.818.025.030
31 116.815.027.010Return Speed Adjuster Knob Kit, Remote - Reverb New 116.815.027.010
32 116.818.026.000Return Speed Adjuster Knob Kit, Remote A2 - 2013 Reverb 116.818.026.000
33 114.315.016.010Clamp/Bracket Hardware, XLoc Left, Ti Hardware 114.315.016.010
33 114.315.016.020Clamp/Bracket Hardware, XLoc Right, Ti Hardware 114.315.016.020
33 115.315.049.010MMX/Shifter Mounting Bracket, Left - Elixir CR Mag/X0/XX, Stainless Hardware 115.315.049.010
33 115.315.049.020MMX/Shifter Mounting Bracket, Right - Elixir CR Mag/X0/XX, Stainless Hardware 115.315.049.020
34 116.818.001.000Discrete Puck Hydraulic Remote (Spacer) For XLoc Remotes Qty 2 116.818.001.000
35 116.815.022.010Hose Barb Reverb Post, Qty 1 116.815.022.010
35 116.815.022.020Hose Barb Reverb Post, Qty 10 116.815.022.020
36 116.815.022.030Hose Barb Reverb Remote, Qty 1 116.815.022.030
36 116.815.022.040Hose Barb Reverb Remote, Qty 10 116.815.022.040
37 116.818.000.000Foam Reverb Filter, Reverb Qty 10 116.818.000.000
38 Sram Cable/Hose Line Guide, Black - RockShox Qty 2 00.4315.020.010Cable/Hose Line Guide, Black - RockShox Qty 2 00.4315.020.010
39 Sram Oil Height Tool - Reverb 00.6815.066.010Oil Height Tool - Reverb 00.6815.066.010
40 Sram Post Bleed Tool - Reverb 00.6815.066.020Post Bleed Tool - Reverb 00.6815.066.020
41 Sram Barb Connector - Reverb Stealth 00.6815.066.030Barb Connector - Reverb Stealth 00.6815.066.030
42 Sram IFP Height Tool - Reverb 00.6815.066.040IFP Height Tool - Reverb 00.6815.066.040
43 114.318.005.000Connectamajig Collar Suspension Black - Reverb/XLoc Full sprint 114.318.005.000
ns 114.315.021.070RockShox Reverb Hydraulic Fluid, 120ml Bottle new 114.315.021.070
ns 00.6815.064.010Reverb Hydraulic Bleed Kit (includes 2 syringes, Reverb fittings, Reverb Hydraulic Fluid, 120ml Bottle new) 00.6815.064.010
ns Sram High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010High-Pressure Fork/Shock Pump (300 psi Max) RockShox 00.4315.023.010
ns Sram Schrader Valve Removal Tool Rockshox 00.4315.022.010Schrader Valve Removal Tool Rockshox 00.4315.022.010
ns Sram Cable Housing/Hydraulic Line Rotating Hooks, SRAM Qty 400.5315.027.000Cable Housing/Hydraulic Line Rotating Hooks, SRAM Qty 4 00.5315.027.000
