Sram REBA-12 non-Boost - A2-A8 (2012-2025)

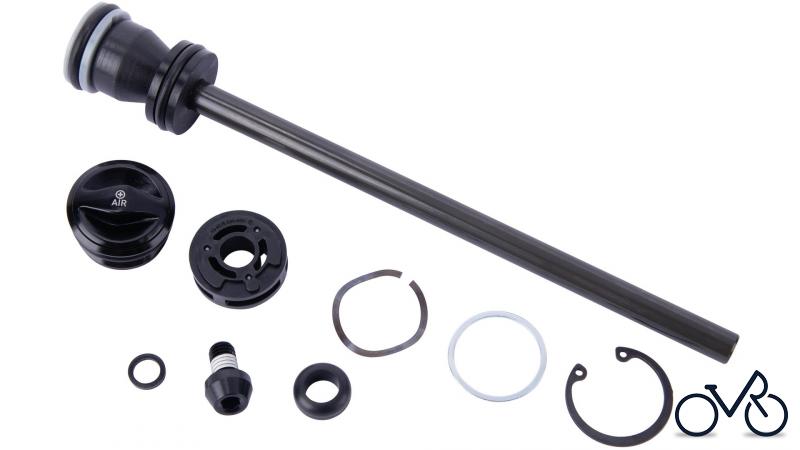

FORK SPRING SOLO AIR ASSEMBLY - 120MM-27.5/29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - REBA-12 A7-A9(2018-2025)

Article Number:

11.4018.010.230

Pos:

109.19 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: delivery time approx. 5 working days.

FS-REBA-12NB-A2, FS-REBA-12NB-A3, FS-REBA-12NB-A4, FS-REBA-12NB-A5, FS-REBA-12NB-A6, FS-REBA-12NB-A7, FS-REBA-12NB-A8

Here you will find the spare parts drawing for Sram RockShox REBA-12 non-Boost - A2-A8 (2012-2025). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
U1	00.4018.783.011	DAMPER UPGRADE KIT - CHARGER RLC,120 MAX TRAVEL, REMOTE(INCLUDES RIGHT SIDE INTERNALS, ONELOCREMOTE)-SID27/29(A2-A4/2012-2016),SID120(B1-B4/2020,REBA-12 A1-A9(2012-2025)/BLUTOA1+ 00.4018.783.011
U2	00.4018.783.003	DAMPER UPGRADE KIT - CHARGER2 RLC CROWN 120MM MAX TRAVEL (RIGHT SIDE INTERNALS) - SID27/29(A2-A4/2012-16),SID120(B1-B4/2020, REBA-12 A1-A9(2012-2025)/BLUTO A1+ 00.4018.783.003
U3	00.4318.045.002	FORK DUST WIPER UPGRADE KIT - 32MM BLACK FLANGED LOW FRICTION SEALS (INCLUDES DUST WIPERS, 5MM, 10MM FOAM RINGS)-15X100 SID/REVELATION/REBA/ARGLE/SEKTOR/TORA/RECON/XC32 00.4318.045.002
U4	11.4018.096.002	FORK SPRING SEALHEAD - 32MM DEBONAIR BLACK (REPLACES FLOATING SEALHEAD, BASEPLATE, WAVE WASHER) SID A1-A4(2011-2016),REBA-10/REBA-12/REBA-15 A2-A9(2013-2025),BLUTO A1+(2015+) 11.4018.096.002
200h	00.4315.032.633	200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RING SEALS) - REBA-12 NONBOOST A7-A8(2017-2025) 00.4315.032.633
200h	11.4018.018.001	FORK SERVICE KIT - FULL SERVICE SOLO AIR (INCLUDES AIR SEALS, DAMPER SEALS, HARDWARE, BLACK SEALS) - SID A2-A4/REBA-12NB A2-A6(2012-2016), NON-BOOST 11.4018.018.001
BS	00.4315.032.420	AM FORK SERVICE KIT, BASIC (INCLUDES BLACK DUST SEALS, FOAM RINGS,O-RING SEALS) - REBA-12DA A1(2011-2012),REBA-12NB A2-A6 (2011-2017) AND SID A1-A4 (2012-2014), NON-BOOST 00.4315.032.420
LOWER LEG
1	11.4015.534.010	FORK HOSE CLAMP - PIKE/LYRIK/YARI/SID/REVELATION/BOXXER/XC30/30G/30S/RECON/SEKTOR/BLUTO/REBA/35G/35S 11.4015.534.010
2	11.4018.008.528	FORK CSU - SOLO AIR 27 15x100 120MM MAX ALUMINUM TAPER BLACK (NO GRADIENTS) - REBA-12 A2-A9(2012-2025) 11.4018.008.528
2	11.4018.008.534	FORK CSU - SOLO AIR 29 15x100 120MM MAX ALUMINUM TAPER BLACK (NO GRADIENTS) - REBA-12 A2-A9(2012-2025) 11.4018.008.534
2	11.4018.008.530	FORK CSU - SOLO AIR 27 15x100 120MM MAX ALUMINUM TAPER DIFFUSION BLACK (NO GRADIENTS) - REBA-12 A2-A9(2012-2025) 11.4018.008.530
2	11.4018.008.536	FORK CSU - SOLO AIR 29 15x100 120MM MAX ALUMINUM TAPER DIFFUSION BLACK (NO GRADIENTS) - REBA-12 A2-A9(2012-2025) 11.4018.008.536
4	11.4018.012.011	FORK SPRING AIR TOP CAP - 32MM SPLINE (INCLUDES TOP CAP, VALVE COVER, USES CASSETTE TOOL) - SID B1-B4 (2017-2020),SID SL C1+ (2021+),REBA-10/REBA-12/REBA-15 A2-A8(2018-2025) 11.4018.012.011
4	11.4018.012.006	FORK SPRING AIR TOP CAP - 32MM (ALUMINUM UPPER TUBES ONLY, BOTTOMLESS TOKEN COMPATIBLE) - REBA-12 A1-A6/SIDA1-A4/REVELATION A1-A4/RS-1 A+/BLUTO A1+/ARGYLE A1+ 11.4018.012.006
4	11.4018.032.002	FORK SPRING AIR TOP CAP - 32MM SOLO AIR/DEBONAIR (INCLUDES 5 TOKENS, INTERNALLY THREADED AIR CAP) REBA/SID/REVELATION/RS-1/BLUTO/ARGYLE RCT 11.4018.032.002
5	11.4018.032.003	FORK SPRING BOTTOMLESS TOKENS - SOLO AIR/DEBONAIR (QTY 5) - SID/REBA/REVELATION/RS-1/BLUTO/ARGYLE RCT SOLO AIR/35G 11.4018.032.003
ns	11.4308.327.002	AIR VALVE KIT - SCHRADER CORE (QTY 2) - FORKS/SHOCKS/REVERB 11.4308.327.002
17	11.4018.010.230	FORK SPRING SOLO AIR ASSEMBLY - 120MM-27.5/29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - REBA-12 A7-A9(2018-2025) 11.4018.010.230
17	11.4018.010.046	FORK SPRING SOLO AIR ASSEMBLY - 120MM-27.5/29 BLACK (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6/SIDB A2-A4 11.4018.010.046
17	11.4018.010.056	FORK SPRING SOLO AIR ASSEMBLY - 120MM-26 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6/SIDB A2-A4 11.4018.010.056
17	11.4018.010.119	FORK SPRING SOLO AIR ASSEMBLY - 110MM-29 (INCLUDES TOP CAP, 1 BOTTOMLESS TOKEN, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6,SID A1-A4 (2011- 2016) 11.4018.010.119
17	11.4018.010.120	FORK SPRING SOLO AIR ASSEMBLY - 100MM-27.5/29 (INCLUDES TOP CAP, 2 BOTTOMLESS TOKENS, SOLO AIR SPRING, SHAFT BOLT) - REBA-12 A2-A6, SID A1-A4 (2011- 2016) 11.4018.010.120
17	11.4018.010.125	FORK SPRING SOLO AIR ASSEMBLY - 100MM-26 (INCLUDES TOP CAP, 2 BOTTOMLESS TOKENS, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6, SID A1-A4 (2011- 2016) 11.4018.010.125
17	11.4018.010.121	FORK SPRING SOLO AIR ASSEMBLY - 95MM-29 (INCLUDES TOP CAP, 2 BOTTOMLESS TOKENS, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6, SID A1-A4 (2011- 2016) 11.4018.010.121
17	11.4018.010.122	FORK SPRING SOLO AIR ASSEMBLY - 90MM-29 (INCLUDES TOP CAP, 3 BOTTOMLESS TOKENS, AIR PISTON, SHAFT BOLT) - REBA-12 A2-A6, SID A1-A4 (2011- 2016) 11.4018.010.122
26	11.4018.021.000	FORK SPRING SOLO AIR SHAFT - 120MM-27.5"/(29"A3+) NOT COMPATIBLE WITH PRE 2014/A3 29" (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(2013-2016), REBA-12 A2-A6 11.4018.021.000
26	11.4018.021.001	FORK SPRING SOLO AIR SHAFT - 110MM-27.5"/29" (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(2013-2016), REBA-12 A2-A6 11.4018.021.001
26	11.4018.021.002	FORK SPRING SOLO AIR SHAFT - 100MM-27.5"/29" (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(2013-2016), REBA-12 A2-A6 11.4018.021.002
26	11.4018.021.005	FORK SPRING SOLO AIR SHAFT - 120MM-26"/RS-1 (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(26")/REBA-12 A2-A6, RS-1 11.4018.021.005
26	11.4018.021.007	FORK SPRING SOLO AIR SHAFT - 100MM-26"/RS-1 (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(26"), REBA-12 A2-A6, RS-1 11.4018.021.007
26	11.4018.021.009	FORK SPRING SOLO AIR SHAFT - 80MM-26"/RS-1 (INCLUDES AIR SHAFT, PISTON, SEAL) - SIDB A2-A4(26"),REBA-12 A2-A6, RS-1 11.4018.021.009
REMOTES/Dampers 17mm	(A2-A5)	(A2A5)
ns	11.4308.848.000	REMOTE - POPLOC LEFT 17MM CABLE PULL - RL (PRE-2013), ALL TK DAMPERS, (NOT COMPATIBLE WITH 2013+ MOCO) 11.4308.848.000
ns	11.4309.207.000	REMOTE - POPLOC RIGHT 17MM CABLE PULL - RL (PRE-2013), ALL TK DAMPERS 11.4309.207.000
REMOTES/Dampers 10mm	(A6-A8)	(A6A8)
ns	00.4318.079.000	Remote - TwistLoc Ultimate Full Sprint Left 2 Position (Includes Cables, Housing, Left and Right Textured Grips) - 2 Position Remote Forks and Shocks B1 00.4318.079.000
ns	00.4318.059.000	Remote - TwistLoc Base Full Sprint Left 2 Position (Includes Cables, Housing, Left and Right Grips) - 2 Position Remote Forks and Shocks B1 00.4318.059.000
6	00.4318.002.009	REMOTE - ONELOC LEFT/ABOVE, RIGHT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+), CHARGER DAMPERS 00.4318.002.009
6	00.4318.002.010	REMOTE - ONELOC RIGHT/ABOVE, LEFT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+), CHARGER DAMPERS 00.4318.002.010
7a	11.4015.544.330	FORK COMPRESSION DAMPER - CROWN, MOCO RL (INCLUDES COMPRESSION KNOB, SCREW) - BLUTO A1,RREBA-10/REBA-12 A5-A9(2018-2025) 11.4015.544.330
7b	11.4015.544.420	FORK COMPRESSION DAMPER - REMOTE 10MM (2013+ PUSHLOC, ONELOC, TWISTLOC) MOCO (INCLUDES SPOOL, CABLE CLAMP, SCREW),REBA-10/REBA-12 A6-A9(2018-2025) 11.4015.544.420
8	11.4018.025.011	FORK REBOUND DAMPER - (INCLUDES SHAFT BOLT, SEALHEAD) - RAPID RECOVERY REBA 27/29 A5, BLUTO26 A1-A3, REBA-10/REBA-12 A5-A9(2017-2025) 11.4018.025.011
10	11.4015.461.010	FORK COMPRESSION DAMPER KNOB KIT - CROWN MOCO (INCLUDES SCREW) - REBA-12 A1-A6(2011-2016)/RECON, SEKTOR GOLD (2011-2016) 11.4015.461.010
ns	11.4015.544.010	FORK COMPRESSION DAMPER - CROWN MOCO DNA (INCLUDES COMPRESSION KNOB, GATE KNOB, BOLT) - SIDA1-A3/REBA-12 A1-A3(2011-2016) 11.4015.544.010
23	11.4015.353.010	FORK DAMPER SEALHEAD ASSEMBLY - MOCO 32MM - SIDA 2009-2014, SIDB 2011-2013, REBA-12 A1-A6(2011-2017), REVELATION 2009-2013, BLUTO RL A1-A5 11.4015.353.010
11	11.4015.461.020	FORK COMPRESSION DAMPER KNOB KIT - REMOTE 10/17MM TK/MOCO (INCLUDES SPOOL, CABLE STOP, SCREW) - REBA-12 A1-A6(2011-2016)/RECON, SEKTOR GOLD (2011-2016) 11.4015.461.020
11	11.4018.011.002	FORK COMPRESSION DAMPER KNOB KIT - REMOTE 10MM (2013+ PUSHLOC, ONELOC, TWISTLOC) TURNKEY - RECON GOLD A1-A3 (2011-2017)/SEKTOR A1-B1 (2011-2018)/REBA-12 A1-A5 (2012-2017) 11.4018.011.002
16	11.4018.082.014	FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB, BOLT) 29 REBA-10/REBA-12/REBA-15 A7-A9,SID B2-B4(2017-2020),SID SELECTC1/SID SL SELECTC1/SID RLC3(2021)/SID BASE C1+(2022+) 11.4018.082.014
16	11.4018.082.015	FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB, BOLT) - 27.5 - SID B2+ (2017+),REBA-10/REBA-12/REBA-15 A7-A9(2018-2025) 11.4018.082.015
16	11.4015.293.000	FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB, BOLT) - 2008-2016 SID/REBA-12 A1-A6(2011-2016) 11.4015.293.000
9	11.4015.259.000	FORK CRUSH WASHERS - 8MM (QTY 50) 11.4015.259.000
12	11.4015.260.000	FORK CRUSH WASHER RETAINER - 8MM (QTY 50) 11.4015.260.000
15	11.4015.496.010	FORK FOAM RING KIT - 32MM X 5MM (QTY 20) - SID A1-A3 /REBA A2-A3/BLUTO A1/SID SL C1 (2021) 11.4015.496.010
ns	11.4118.107.000	SCHRADER AIR CAP - (INCLUDES CAP AND O-RING) - ROCKSHOX UNIVERSAL AIR CAP FOR FORKS AND SHOCKS 11.4118.107.000
ns	00.4318.031.000	FORK LOWER LEG DUST SEAL INSTALLATION TOOL 32MM (FOR FLANGELESS AND FLANGED DUST SEALS) 00.4318.031.000
ns	00.4318.012.003	FORK TOP CAP/CASSETTE TOOL (FOR SRAM/SHIMANO CASSETTES) - PIKE, LYRIK, ZEB, BOXXER, SID, REVELATION, REBA, AND PARAGON FORKS 00.4318.012.003
ns	00.4318.018.000	ROCKSHOX SUSPENSION CLEANER 16.9 OZ. (FOR USE WITH ALL SUSPENSION PRODUCTS) 00.4318.018.000
ns	00.4315.023.010	HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX 00.4315.023.010
ns	00.4315.022.010	REAR SHOCK SCHRADER VALVE REMOVAL TOOL ROCKSHOX 00.4315.022.010
ns	11.4315.021.020	ROCKSHOX SUSPENSION OIL, 5WT, 120ML BOTTLE - FORK DAMPER 11.4315.021.020
ns	11.4015.354.010	ROCKSHOX SUSPENSION OIL, 5WT, 1 LITER BOTTLE - FORK DAMPER 11.4015.354.010
ns	11.4315.021.040	ROCKSHOX SUSPENSION OIL, 15WT, 120ML BOTTLE - LOWER LEGS 11.4315.021.040
ns	11.4015.354.030	ROCKSHOX SUSPENSION OIL, 15WT, 1 LITER BOTTLE - LOWER LEGS 11.4015.354.030
ns	00.4318.008.000	GREASE SRAM BUTTER 20ML SYRINGE, FRICTION REDUCING GREASE BYSLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS, REVERB SERVICE 00.4318.008.000
ns	00.4318.008.001	GREASE SRAM BUTTER 1OZ CONTAINER, FRICTION REDUCING GREASE BY SLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS, REVERB SERVICE 00.4318.008.001
