Sram RUDY XPLR A1 (2022+)

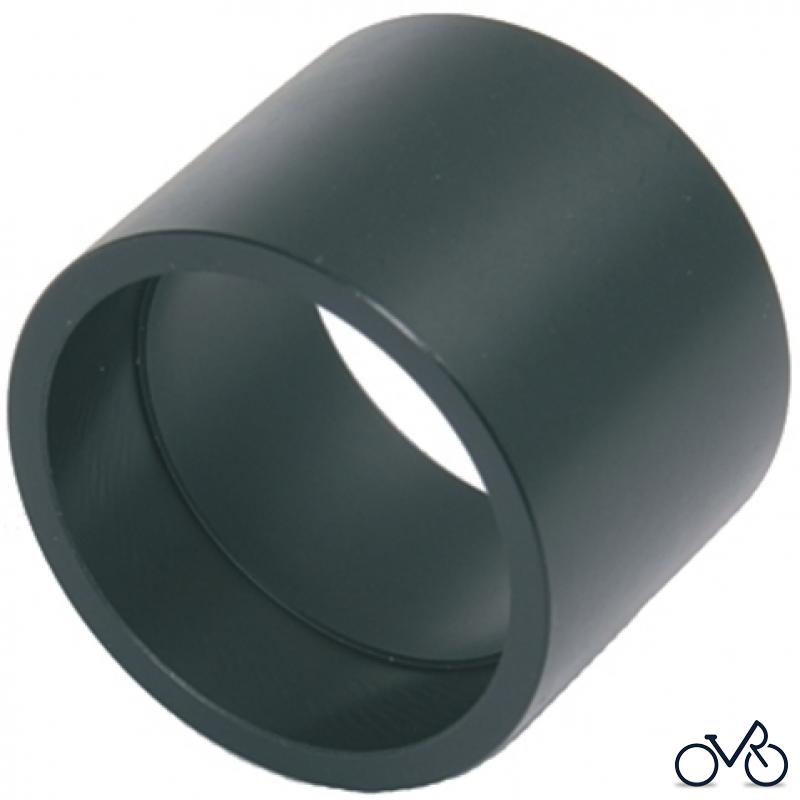

FORK LOWER LEG DUST SEAL INSTALLATION TOOL (28MM/30MM)

Article Number:

11.4310.444.000

Pos:

ROCKSHOX Einbauwerkzeug Für Staub-/ Öldichtungen im Tauchrohr Ausführung: 28/30 mm

23.10 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: delivery time approx. 5 working days.

FS-RUDY-BSE-A1, FS-RUDY-ULT-A1, FS-RUDY-ULT-A2

Here you will find the spare parts drawing for Sram RockShox RUDY XPLR A1 (2022+). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
U1	00.4318.086.004	Damper Upgrade Kit - CHARGER RACE DAY 2 2-Position Rudy Crown (Includes Complete Right Side Internals) - 30mm (40mm Max Travel) - RUDY (A1+/2022+) 00.4318.086.004
U2	00.4318.054.000	ROCKSHOX GRAVEL FENDER BLACK SHORT 3 BOLT 28MM - RUDY (A1+/2022+) 00.4318.054.000
200h	00.4318.025.191	200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RING SEALS, DMPR SEALHEAD) RUDY XPLR BASE/ULTIMATE A1+ (2022+) 00.4318.025.191
1	11.4018.091.060	FORK LOWER LEG - (FOIL DECALS INCLUDED) 700C GLOSS BLACK - RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.091.060
1	11.4018.091.061	FORK LOWER LEG - (FOIL DECALS INCLUDED) 700C DIFFUSION BLACK - RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.091.061
1	11.4018.091.062	FORK LOWER LEG - (FOIL DECALS INCLUDED) 700C KWIQSAND - RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.091.062
2	11.4018.090.068	FORK CSU - SOLO AIR 700C 45 OFF-SET ALUMINUM 1 1/8" STEER TO 1.5" CROWN, GLOSS BLACK ANO - RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.090.068
2	11.4018.090.069	FORK CSU - SOLO AIR 700C 45 OFF-SET ALUMINUM 1 1/8" STEER TO 1.5" CROWN, DIFFUSION BLACK ANO - RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.090.069
2	11.4018.090.070	FORK CSU - SOLO AIR 700C 51 OFF-SET ALUMINUM 1 1/4" STEER TO 1.5" CROWN, GLOSS BLACK ANO - RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.090.070
2	11.4018.090.071	FORK CSU - SOLO AIR 700C 51 OFF-SET ALUMINUM 1 1/4" STEER TO 1.5" CROWN, DIFFUSION BLACK ANO - RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.090.071
2	11.4018.090.085	FORK CSU - SOLO AIR 700C 45 OFF-SET ALUMINUM 1 1/4" STEER TO 1.5" CROWN, DIFFUSION BLACK ANO - RUDY XPLR BASE/ULTIMATE A1+ CANYON GRIZL (2022+) 11.4018.090.085
3	11.4018.111.019	FORK SPRING DEBONAIR SHAFT - (INCLUDES AIR SHAFT AND BUMPERS) 30MM- 700C - RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.111.019
3	11.4018.111.020	FORK SPRING DEBONAIR SHAFT - (INCLUDES AIR SHAFT AND BUMPERS) 40MM- 700C - RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.111.020
4	11.4018.096.006	FORK SPRING SEALHEAD - 30MM SOLO AIR (INCLUDES SEALHEAD ASSY) RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.096.006
5	11.4018.083.004	FORK SPRING AIR TOP CAP ASSEMBLY- 30MM (INCLUDES TOP CAP & AIR SPACER) - RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.083.004
6a	11.4018.082.055	FORK COMPRESSION DAMPER KNOB KIT- CROWN RACE DAY 2 DAMPER (INCLUDES KNOB, SCREW, AND STRIKE PLATE) - RUDY ULTIMATE A2+ (2025+) 11.4018.082.055
6b	11.4018.082.035	FORK COMPRESSION DAMPER KNOB KIT- CROWN RACE DAY DAMPER (INCLUDES KNOB & SCREW) - RUDY ULTIMATE A1 (2022-2024) 11.4018.082.035
ns	11.4018.082.036	FORK COMPRESSION DAMPER KNOB KIT- CROWN RUSH DAMPER (ALSO FITS RUDY AIR SPRING CAP) - RUDY A1+ (2022+) 11.4018.082.036
7	11.4018.082.032	FORK REBOUND DAMPER KNOB KIT - (INCLUDES COMPLETE REBOUND CONTROLS) - RUDY XPLR BASE/ULTIMATE A1+ (2022+) 11.4018.082.032
10	11.4018.124.001	FORK SHAFT FASTENER KIT - (INCLUDES SHAFT BOLTS & CRUSH WASHERS) - RUDY BASE/ULTIMATE A1+ (2022+) 11.4018.124.001
11	11.4018.115.000	FORK HOSE CLAMP - SID 35 C1+ (2021+)/SID SL C1+ (2021+)/RUDY A1+ (2022+) 11.4018.115.000
12	11.4018.125.000	FORK LOWER LEG THREADED MAXLE INSERT SET (INCLUDES LEFT AND RIGHT) RUDY BASE/ULTIMATE A1+ (2022+) 11.4018.125.000
13	00.4318.005.034	AXLE MAXLE STEALTH FRONT, 12X100, LENGTH 134MM, THREAD LENGTH 9MM, THREAD PITCH M12X1.50 - RUDY 00.4318.005.034
13	00.4318.005.035	AXLE MAXLE ULTIMATE FRONT, 12X100, LENGTH 134MM, THREAD LENGTH 9MM, THREAD PITCH M12X1.50 - RUDY 00.4318.005.035
14	00.4318.045.001	FORK DUST WIPER UPGRADE KIT - 30MM BLACK FLANGELESS LOW FRICTION SEALS (INCLUDES DUST WIPERS & 10MM FOAM RINGS) - JUDY SILVER/JUDY GOLD (BOOST™ FORKS)/RUDY 00.4318.045.001
ns	00.5318.005.010	BRACKET MOUNTING BOLTS - STAINLESS T25 42MM (2 PCS) - FLAT MOUNT CALIPER - RUDY 00.5318.005.010
ns	00.5318.018.001	FLAT MOUNT BRACKET FRONT/REAR- 20FD (FLATMOUNT DIRECT), INCLUDES 2 STAINLESS BRACKET MOUNTING BOLTS - RUDY 00.5318.018.001
ns	11.4118.107.000	SCHRADER AIR CAP - (INCLUDES CAP AND O-RING) - ROCKSHOX UNIVERSAL AIR CAP FOR FORKS AND SHOCKS 11.4118.107.000
ns	11.4310.444.000	FORK LOWER LEG DUST SEAL INSTALLATION TOOL (28MM/30MM) 11.4310.444.000
ns	00.4315.023.010	HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX 00.4315.023.010
ns	00.4315.023.040	HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX DIGITALGAUGE 00.4315.023.040
ns	00.4315.022.010	REAR SHOCK SCHRADER VALVE REMOVAL TOOL ROCKSHOX 00.4315.022.010
ns	11.4318.016.002	MAXIMA PLUSH DYNAMIC SUSPENSION LUBE HEAVY, 120ML BOTTLE - SID/SIDSL/RUDY/PIKE/LYRIK/ZEB - LOWER LEGS/AIR SPRINGS 11.4318.016.002
ns	11.4318.016.003	MAXIMA PLUSH DYNAMIC SUSPENSION LUBE HEAVY, 1 LITER BOTTLE - SID/SIDSL/RUDY/PIKE/LYRIK/ZEB - LOWER LEGS/AIR SPRINGS 11.4318.016.003
ns	00.4318.007.000	ROCKSHOX CHARGER DAMPER STANDARD BLEED KIT (INCLUDES SYRINGE, CHARGER1 FITTING, STANDARD FITTING, SUSPENSION OIL 3W) - CHARGER/RACEDAY DAMPERS 00.4318.007.000
ns	00.4318.008.000	GREASE SRAM BUTTER 20ML SYRINGE, FRICTION REDUCING GREASE BYSLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.000
ns	00.4318.008.001	GREASE SRAM BUTTER 1OZ CONTAINER, FRICTION REDUCING GREASE BY SLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.001
ns	00.4318.008.003	GREASE SRAM BUTTER 500ML CONTAINER, FRICTION REDUCING GREASEBY SLICKOLEUM - RECOMMENDED FOR SRAM DOUBLE TIME HUBS & WHEELS, ROCKSHOX FORKS AND REVERB SERVICE 00.4318.008.003
