Shimano BR-RX820-LE

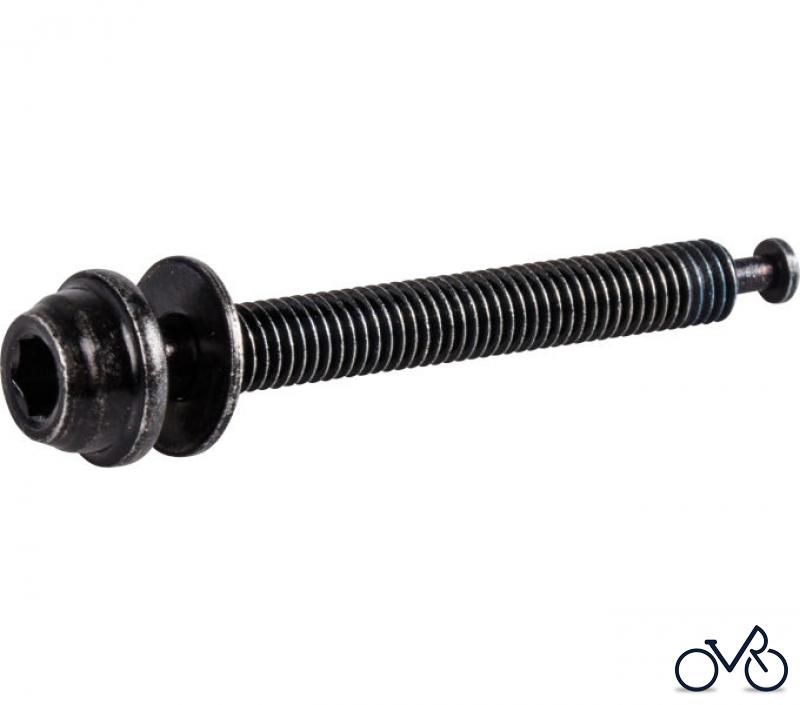

Caliper fixing screw C for 30 mm rear mount thickness A

Article Number:

Y-8N208030

Pos:

5.95 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: Delivery time approx. 5 to 14 working days.

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-RX820-LE. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8RD98010	Flange flare nut unit (M9/black) A Y8RD98010
2	Y-8JA98020	Olive and connecter insert A Y8JA98020
3	Y-8H198030	TL-BH61 Shimano original tool (2 pcs.) A Y8H198030
4	Y-8JA98010	Flare nut unit (M8/black) A Y8JA98010
5	Y-83098040	SM-HANG Hose supporter A and B A Y83098040
6	Y-2J706000	Bleed screw cap A Y2J706000
7	Y-2HW10000	Bleed boss cap A Y2HW10000
8	Y-2GM98020	Pad axle and snap retainer A Y2GM98020
9	Y-8EB12010	Pad axle A Y8EB12010
10	Y-8J716000	Snap retainer A Y8J716000
11	E-BPK05SRXA	K05S-RX Resin pad and spring (pair) A EBPK05SRXA
11	Y-2GM98030	K05S-RX Resin pad and spring (pair) A Y2GM98030
12	E-BPL05ARFA	L05A-RF Resin pad with fin and spring (pair) A EBPL05ARFA
12	Y-2EM98010	L05A-RF Resin pad with fin and spring (pair) A Y2EM98010
13	I-BPL04CMFA	L04C Metal pad with fin and spring (pair) A IBPL04CMFA
13	Y-8N398040	L04C Metal pad with fin and spring (pair) A Y8N398040
14	Y-8N218000	Pad spacer A Y8N218000
15	Y-8N207000	Screw fixing pin A Y8N207000
16	Y-2HW06010	Caliper fixing screw B2 A Y2HW06010
17	Y-8N206000	Caliper fixing screw B A Y8N206000
18	Y-8N230000	Front caliper mount bracket A Y8N230000
19	Y-8N204000	Caliper fixing screw A A Y8N204000
20	Y-8N205000	Snap ring A Y8N205000
21	Y-2J708000	Caliper fixing screw C2 for 10 mm rear mount thickness A Y2J708000
21	Y-2J708050	Caliper fixing screw C2 for 15 mm rear mount thickness A Y2J708050
21	Y-2J708010	Caliper fixing screw C2 for 20 mm rear mount thickness A Y2J708010
21	Y-2J708020	Caliper fixing screw C2 for 25 mm rear mount thickness A Y2J708020
21	Y-2J708030	Caliper fixing screw C2 for 30 mm rear mount thickness A Y2J708030
21	Y-2J708040	Caliper fixing screw C2 for 35 mm rear mount thickness A Y2J708040
22	Y-8N208000	Caliper fixing screw C for 10 mm rear mount thickness A Y8N208000
22	Y-8N208050	Caliper fixing screw C for 15 mm rear mount thickness A Y8N208050
22	Y-8N208010	Caliper fixing screw C for 20 mm rear mount thickness A Y8N208010
22	Y-8N208020	Caliper fixing screw C for 25 mm rear mount thickness A Y8N208020
22	Y-8N208030	Caliper fixing screw C for 30 mm rear mount thickness A Y8N208030
22	Y-8N208040	Caliper fixing screw C for 35 mm rear mount thickness A Y8N208040
23	Y-2HW12000	Screw length selector A Y2HW12000
24	Y-8NU02000	Washer for R160 adapter A Y8NU02000
25	Y-8NU03000	Snap retainer A Y8NU03000
26	Y-8K198010	Lock ring and washer A Y8K198010
27	Y-12009230	TL-LR15 Lock ring removal tool A Y12009230
28	Y-2A598030	Lock ring and washer (external spline type) A Y2A598030
29	Y-13098000	TL-FC36 Lock ring removal tool A Y13098000
30	Y-83998020	Mineral oil (100 ml) A Y83998020
30	Y-83998030	Mineral oil (500 ml) A Y83998030
31	Y-2HW15000	Bleeding spacer A Y2HW15000
32	Y-8H802000	Hose cover for easy hose joint system, not used with easy hose joint direct system A Y8H802000
33	Y-8JA98026	Connecting insert (100 pcs.) A Y8JA98026
34	Y-8H298047	Olive (100 pcs Y8H298047
