Shimano SG-C3000-7C, SG-C3000-7C-DX NEXUS 7-Speed Internal Hub w/Coaster Brake

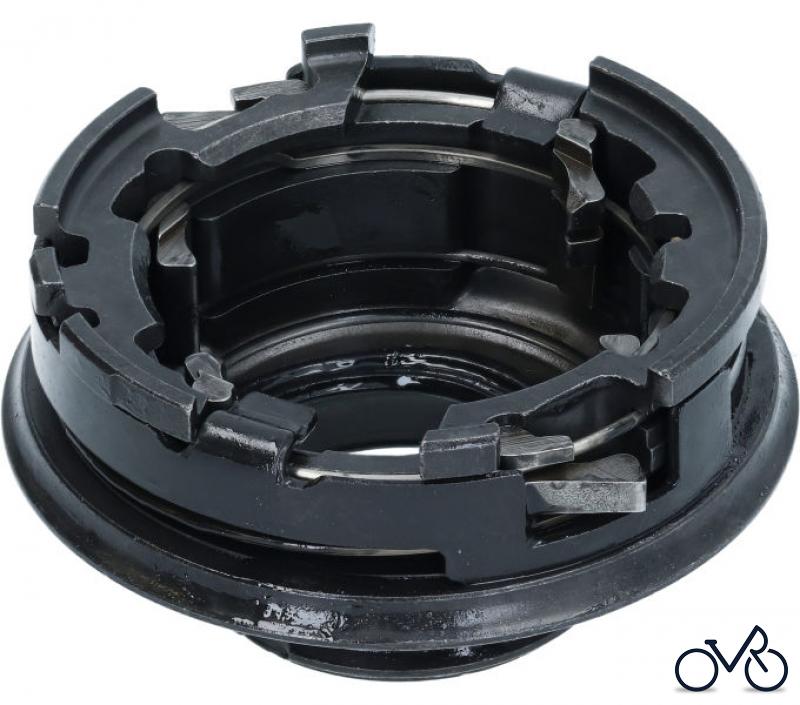

Driver Unit

Shimano Driver Unit
Article Number:
Y-35K98080
Pos:
20
26.95 €
for EU incl. VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: Delivery time approx. 5 to 14 working days.
Shimano SG Getriebenabe /Nabenschaltung SG-C3000-7C, SG-C3000-7C-DX NEXUS 7-Speed Internal Hub w/Coaster Brake

Here you will find the spare parts drawing for Shimano SG Getriebenabe /Nabenschaltung SG-C3000-7C, SG-C3000-7C-DX NEXUS 7-Speed Internal Hub w/Coaster Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-38R98010 Internal Assembly (Axle Length 175.5 mm) for SG-C3000-7C B Y38R98010
1 Y-38R98020 Internal Assembly (Axle Length 175.5 mm) for SG-C3000-7C-DX B Y38R98020
1 Y-38R98030 Internal Assembly (Axle Length 184 mm) for SG-C3000-7C-DX Y38R98030
2 Shimano Brake Shoe Unit Y-38R98040 Brake Shoe Unit Y38R98040
3 Shimano Stop Ring ( ø9 mm) Y-32532000 Stop Ring ( ø9 mm) Y32532000
4 Y-38R98050 Carrier Unit 2 Y38R98050
5 Shimano Ring Gear Unit 2 Y-35K98040 Ring Gear Unit 2 Y35K98040
6 Y-38R09000 Sun Gear 3 Y38R09000
7 Y-38R11000 Sun Gear Guide Ring 2 Y38R11000
8 Y-38R08000 Sun Gear 2 Y38R08000
9 Y-38P98050 Carrier Unit 1 Y38P98050
10 Y-35K98050 Ring Gear Unit 1 Y35K98050
11 Y-38R98060 Ball Retainer H (3/16" x 29) Y38R98060
12 Y-38R98070 Axle & Driver Unit (Axle Length 175.5 mm) w/Right Hand Dust Cap B & C for SG-C3000-7C Y38R98070
12 Y-38R98080 Axle & Driver Unit (Axle Length 175.5 mm) w/Right Hand Dust Cap B & C for SG-C3000-7C-DX Y38R98080
12 Y-38R98090 Axle & Driver Unit (Axle Length 184 mm) w/Right Hand Dust Cap B & C for SG-C3000-7C-DX Y38R98090
13 Y-35B05000 Right Hand Dust Cap B for SG-C3000-7C Y35B05000
13 Shimano Right Hand Dust Cap B for SG-C3000-7C-DX Y-35K06000 Right Hand Dust Cap B for SG-C3000-7C-DX Y35K06000
14 Shimano Right Hand Dust Cap C Y-33Z26000 Right Hand Dust Cap C Y33Z26000
15 Shimano Cassette Joint Fixing Ring Y-33Z98020 Cassette Joint Fixing Ring Y33Z98020
16 Y-38R98100 Axle Unit (Axle Length 175.5 mm) Y38R98100
16 Y-38R98110 Axle Unit (Axle Length 184 mm) Y38R98110
17 Shimano Return Spring Y-33024000 Return Spring Y33024000
18 Y-33Z10000 Gear Shifting Cam Y33Z10000
19 Y-33Z11000 Feed Cam Y33Z11000
20 Shimano Driver Unit Y-35K98080 Driver Unit Y35K98080
21 Shimano Ball Retainer F (3/16" x 12) Y-33091600 Ball Retainer F (3/16" x 12) Y33091600
22 Y-35K98100 Right Hand Cone w/Seal Y35K98100
23 Shimano Right Hand Cone Seal Y-35K07000 Right Hand Cone Seal Y35K07000
24 Shimano Driver Plate w/Seal Y-33F98040 Driver Plate w/Seal Y33F98040
25 Shimano Driver Plate Seal Y-33012000 Driver Plate Seal Y33012000
26 Shimano Lock Washer Y-33E98120 Lock Washer Y33E98120
27 Shimano Stop Washer Y-33Z08000 Stop Washer Y33Z08000
28 Shimano Right Hand Lock Nut (3.4 mm) Y-33Z07020 Right Hand Lock Nut (3.4 mm) Y33Z07020
29 Shimano Cap Nut (3/8") Y-31414010 Cap Nut (3/8") Y31414010
30 Shimano Non-turn Washer 5R (Yellow) Y-33Z20500 Non-turn Washer 5R (Yellow) Y33Z20500
30 Shimano Non-turn Washer 6R (Silver) Y-33M39600 Non-turn Washer 6R (Silver) Y33M39600
30 Shimano Non-turn Washer 7R (Black) Y-33M39700 Non-turn Washer 7R (Black) Y33M39700
31 Shimano Non-turn Washer 5L (Brown) Y-33M39510 Non-turn Washer 5L (Brown) Y33M39510
31 Y-33M39610 Non-turn Washer 6L (White) Y33M39610
31 Shimano Non-turn Washer 7L (Gray) Y-33M39710 Non-turn Washer 7L (Gray) Y33M39710
32 Y-32138040 Lock Nut (3.5 mm) Y32138040
33 Y-33548110 Stop Nut Y33548110
34 Y-38R98120 Brake Arm Unit for SG-C3000-7C Y38R98120
34 Y-38R98130 Brake Arm Unit for SG-C3000-7C-DX Y38R98130
35 Y-38R98140 Internal Assembly (Axle Length 175.5 mm) & Brake Arm Unit for SG-C3000-7C Y38R98140
35 Y-38R98150 Internal Assembly (Axle Length 175.5 mm) & Brake Arm Unit for SG-C3000-7C-DX Y38R98150
36 Y-38R98160 Internal Assembly (Axle Length 184 mm) & Brake Arm Unit for SG-C3000-7C-DX Y38R98160
36 Y-38R98170 Brake Shoe Unit & Brake Arm Unit for SG-C3000-7C Y38R98170
37 Y-38R98180 Brake Shoe Unit & Brake Arm Unit for SG-C3000-7C-DX Y38R98180
38 Shimano Ball Retainer B (3/16" x 16) Y-38R98190 Ball Retainer B (3/16" x 16) Y38R98190
38 Shimano Sprocket Wheel 16T (Silver) Y-32203220 Sprocket Wheel 16T (Silver) Y32203220
38 Shimano Sprocket Wheel 18T (Silver) Y-32203420 Sprocket Wheel 18T (Silver) Y32203420
38 Shimano Sprocket Wheel 19T (Silver) Y-32203520 Sprocket Wheel 19T (Silver) Y32203520
38 Shimano Sprocket Wheel 20T (Silver) Y-32203620 Sprocket Wheel 20T (Silver) Y32203620
38 Shimano Sprocket Wheel 21T (Silver) Y-33060000 Sprocket Wheel 21T (Silver) Y33060000
38 Shimano Sprocket Wheel 22T (Silver) Y-33060100 Sprocket Wheel 22T (Silver) Y33060100
38 Shimano Sprocket Wheel 23T (Silver) Y-33060200 Sprocket Wheel 23T (Silver) Y33060200
39 Shimano Snap Ring C Y-32120100 Snap Ring C Y32120100
40 Y-74Y98050 CJ-NX10 Cassette Joint Unit Y74Y98050
41 Shimano Driver Cap Y-74Y18000 Driver Cap Y74Y18000
42 Shimano CJ-NX10 Cassette Joint Y-74Y93100 CJ-NX10 Cassette Joint Y74Y93100
43 Y-74Y98060 Inner Cable Fixing Bolt Unit Y74Y98060
44 Y-33F98090 Brake Arm Clip Unit (5/8") Y33F98090
45 Y-75M06000 Clip Screw (M6 x 16) Y75M06000
46 Y-31727200 Clip Nut Y31727200
47 Shimano TL-7S20 Hub Spanner (17 mm x 22 mm) 2 pcs. Y-13098900 TL-7S20 Hub Spanner (17 mm x 22 mm) 2 pcs. Y13098900
48 Shimano TL-7S40-B Right Hand Cone Tool Y-30889000 TL-7S40-B Right Hand Cone Tool Y30889000
49 Shimano Internal Hub Grease (Net. 100g) Y-04120800 Internal Hub Grease (Net. 100g) Y04120800
50 Y-00298010 WB maintenance oil set Y00298010
51 Y-00201000 WB maintenance oil (1L) Y00201000
52 Shimano Bottle Y-00201100 Bottle Y00201100
