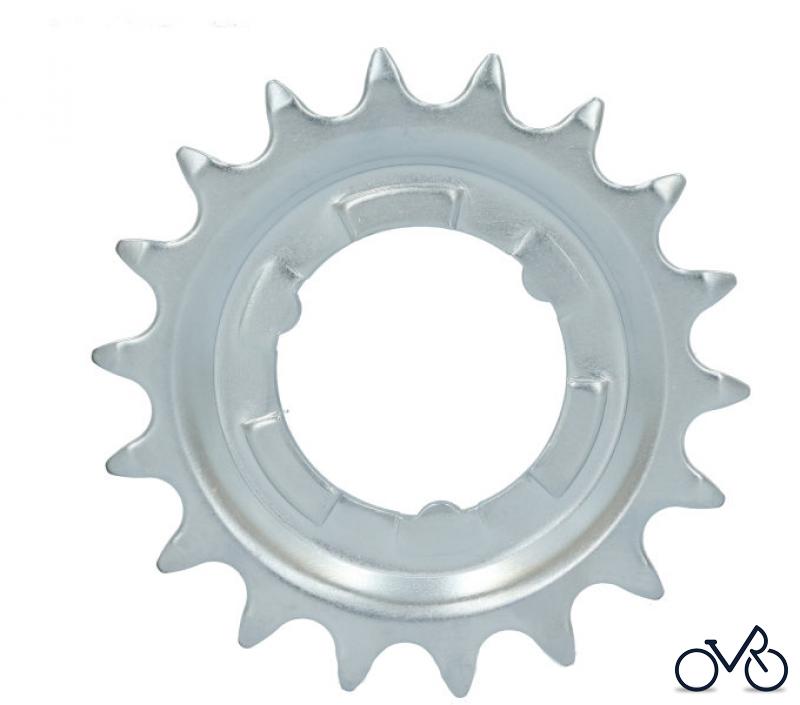

Shimano SG-8R35 NEXUS 8-Speed Internal Hub

Sprocket Wheel 18T (Silver)

Article Number:

Y-32203420

Pos:

7.95 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

in Stock

Here you will find the spare parts drawing for Shimano SG Getriebenabe /Nabenschaltung SG-8R35 NEXUS 8-Speed Internal Hub. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-36W98010	Internal Assembly (Axle Length 184 mm) Y36W98010
2	Y-34R79000	Stop Ring ( 12 / 1.0 mm) Y34R79000
2	Y-34R79010	Stop Ring ( 12 / 1.3 mm) Y34R79010
2	Y-34R79020	Stop Ring ( 12 / 1.6 mm) Y34R79020
3	Y-36W98020	Ring Gear Unit Y36W98020
4	Y-36W98030	Carrier Unit Y36W98030
5	Y-36W07000	Ring Gear 1 Y36W07000
6	Y-34R80000	Ring Gear 1 Stop Ring Y34R80000
7	Y-34R98030	Ball Retainer O (3/16" x 26) Y34R98030
8	Y-36W98040	Hub Axle Unit (Axle Length 184 mm) Y36W98040
9	Y-34R98050	Clutch Unit Y34R98050
10	Y-34R21000	Return Spring A Y34R21000
11	Y-36W98050	Driver Unit Y36W98050
12	Y-34R98070	Ball Retainer P (3/16" x 13) Y34R98070
13	Y-34R98080	Right Hand Cone w/Seal Y34R98080
14	Y-34R12000	Driver Plate Y34R12000
15	Y-34R98090	Lock Washer Y34R98090
16	Y-34R09000	Stop Washer Y34R09000
17	Y-33Z07020	Right Hand Lock Nut (3.4 mm) Y33Z07020
18	Y-31414010	Cap Nut (3/8") Y31414010
19	Y-33Z20500	Non-turn Washer 5R (Yellow) Y33Z20500
19	Y-33M39600	Non-turn Washer 6R (Silver) Y33M39600
19	Y-33M39700	Non-turn Washer 7R (Black) Y33M39700
19	Y-34R85010	Non-turn Washer 8R (Dark Blue) Y34R85010
20	Y-33M39510	Non-turn Washer 5L (Brown) Y33M39510
20	Y-33M39610	Non-turn Washer 6L (White) Y33M39610
20	Y-33M39710	Non-turn Washer 7L (Gray) Y33M39710
20	Y-34R85000	Non-turn Washer 8L (Dark Green) Y34R85000
21	Y-34R98100	Left Hand Dust Cap Unit Y34R98100
22	Y-31Z06030	Lock Nut for Left Hand Cone Y31Z06030
23	Y-35J90000	Left Hand Cone w/Dust Cap Y35J90000
24	Y-36R98020	Right Hand Dust Cap A w/Seal Y36R98020
25	Y-36V98060	Right Hand Dust Cap A w/Seal Y36V98060
26	Y-36R07000	Right Hand Dust Cap C Y36R07000
27	Y-34R0E000	Right Hand Dust Cap B Y34R0E000
28	Y-32203220	Sprocket Wheel 16T (Silver) Y32203220
28	Y-32203420	Sprocket Wheel 18T (Silver) Y32203420
28	Y-32203520	Sprocket Wheel 19T (Silver) Y32203520
28	Y-32203620	Sprocket Wheel 20T (Silver) Y32203620
28	Y-33060000	Sprocket Wheel 21T (Silver) Y33060000
28	Y-33060100	Sprocket Wheel 22T (Silver) Y33060100
28	Y-33060200	Sprocket Wheel 23T (Silver) Y33060200
29	Y-32120100	Snap Ring C Y32120100
30	Y-74Y98120	CJ-8S20 Cassette Joint Unit Y74Y98120
31	Y-74Y18000	Driver Cap Y74Y18000
32	Y-74Y98130	CJ-8S20 Cassette Joint Y74Y98130
33	Y-33Z98020	Cassette Joint Fixing Ring Y33Z98020
34	Y-74Y98030	Inner Cable Fixing Bolt Unit Y74Y98030
35	Y-70800300	TL-8S30 Carrier Unit Tool Y70800300
36	Y-70800200	TL-8S20 Right Hand Cone Installation Tool Y70800200
37	Y-70800600	TL-8S11 Right Hand Cone Removal Tool Y70800600
38	Y-04120800	Internal Hub Grease (Net. 100g) Y04120800
39	Y-00298010	Internal Hub Maintenance Oil Set Y00298010
40	Y-00201000	Oil (1L) Y00201000
41	Y-00201100	Bottle Y00201100
--	Y-34R0D000	Right Hand Hub Cup Y34R0D000
