Shimano WH-MT500-CL-F15-B-29 Front Wheel

Nipple

Article Number:

Y-012Y3352

Pos:

4.95 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: Delivery time approx. 5 to 14 working days.

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-MT500-CL-F15-B-29 Front Wheel. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2AJ98010	Complete Hub Axle A A Y2AJ98010
2	Y-24612000	Right Hand Lock Nut A A Y24612000
3	Y-24613000	Adjusting Washer A A Y24613000
4	Y-24698040	Right Hand Cone w/Dust Cap A A Y24698040
5	Y-27X15000	Right Hand Seal Ring AAA Y27X15000
6	Y-27X98030	Right Hand Ball Retainer (5/32" x 17) AAA Y27X98030
7	Y-27X98040	Left Hand Ball Retainer (5/32" x 15) AAA Y27X98040
8	Y-27X14000	Left Hand Seal Ring AAA Y27X14000
9	Y-2AJ98020	Hub Axle Unit AAB Y2AJ98020
10	Y-24698030	Lock Ring & Washer AAB Y24698030
11	--	Rim {24H}
12	-	-Spoke Unit {Spoke (290 mm x 24 pcs.) / Nipple (24 pcs.)}
13	Y-0ERS2000	Spoke (290 mm) Y0ERS2000

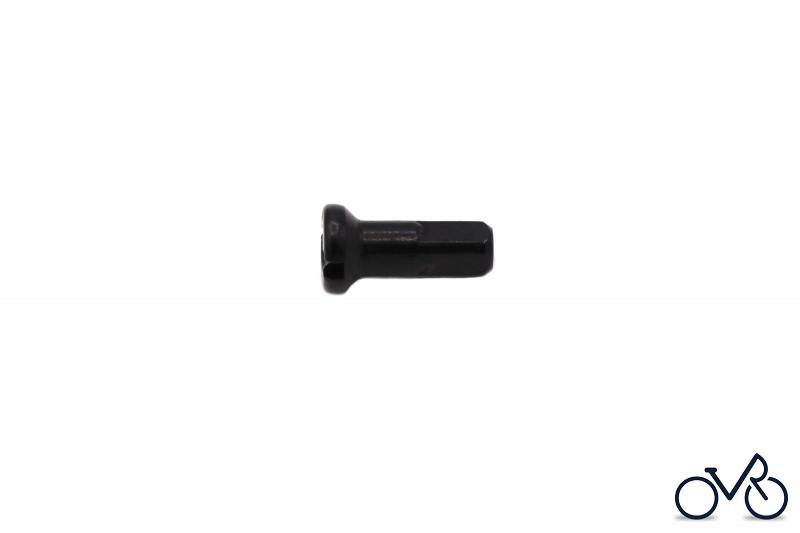

14	Y-012Y3352	Nipple Y012Y3352
15	Y-0ER98010	Rim Sticker Unit Y0ER98010
16	Y-20W98020	TL-HB16 Hub Setting Tool AAA Y20W98020
17	Y-23098030	TL-HS37 Hub Spanner (17 mm) AAA Y23098030
18	Y-13098900	TL-7S20 Hub Spanner (17 mm x 22 mm) 2 pcs Y13098900
