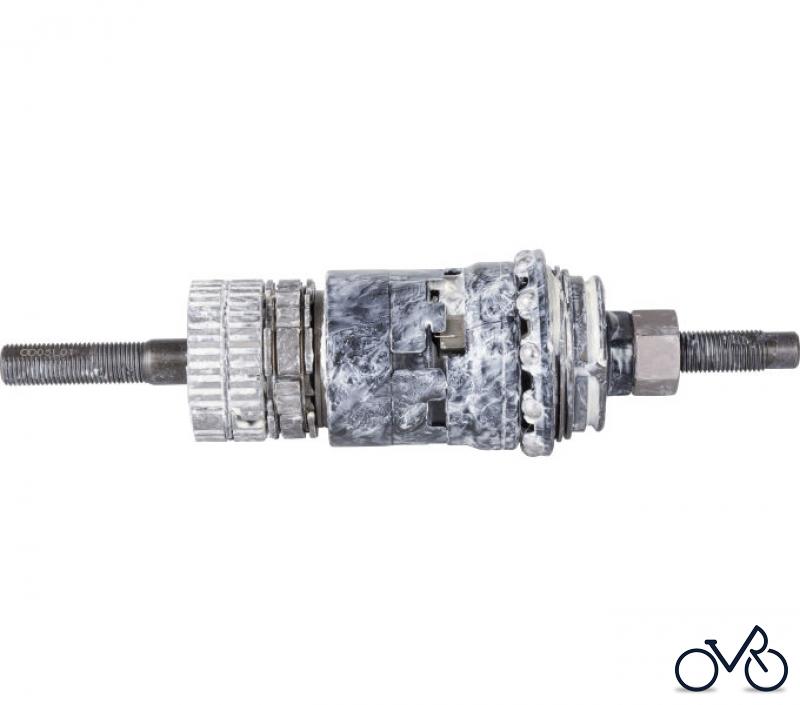

Shimano SG-3C41 (-2330B) NEXUS 3-SPEED HUB w/Coaster Brake

Internal Assembly (Axle Length 175 mm)

Article Number:

Y-33R98020

Pos:

66.95 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: Delivery time approx. 5 to 14 working days.

Here you will find the spare parts drawing for Shimano SG Getriebenabe /Nabenschaltung SG-3C41 (-2330B) NEXUS 3-SPEED HUB w/Coaster Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-35U98010	Internal Assembly (Axle Length 168 mm) Y35U98010
1	Y-33R98020	Internal Assembly (Axle Length 175 mm) Y33R98020
1	Y-35U98020	Internal Assembly (Axle Length 178 mm) Y35U98020
2	Y-33R90600	Brake Shoe Unit Y33R90600
3	Y-32532000	Stop Ring (ø9 mm) Y32532000
4	Y-33R90700	Carrier Unit Y33R90700
5	Y-33R90800	Ring Gear Unit Y33R90800
6	Y-35U98060	Ball Retainer K (7/32" x 11) Y35U98060
7	Y-33R98050	Axle Unit (Axle Length 168 mm) Y33R98050
7	Y-33R98040	Axle Unit (Axle Length 175 mm) Y33R98040
7	Y-35U98030	Axle Unit (Axle Length 178 mm) Y35U98030
8	Y-33R90400	Driver Unit Y33R90400
9	Y-35U98070	Ball Retainer J (7/32" x 8) Y35U98070
10	Y-33R90500	Right Hand Cone w/Dust Seal Y33R90500
11	Y-32139040	Right Hand Lock Nut (4.5 mm) for Axle Length 168 mm/178 mm Y32139040
11	Y-32530100	Right Hand Lock Nut (9.9 mm) for Axle Length 175 mm Y32530100
12	Y-22015010	Flange Nut Y22015010
13	Y-33Z20200	Non-turn Washer 2 (Yellow) Y33Z20200
14	Y-33R49010	Left Hand Lock Nut (3 mm) for Axle Length 168 mm/178 mm Y33R49010
14	Y-33R49020	Left Hand Lock Nut (5 mm) for Axle Length 175 mm Y33R49020
15	Y-33R48010	Stop Nut (3 mm) Y33R48010
16	Y-35U98040	Brake Arm Unit Y35U98040
17	Y-33F98090	Brake Arm Clip Unit (5/8") Y33F98090
17	Y-33F98100	Brake Arm Clip Unit (3/4") Y33F98100
18	Y-75M06000	Clip Screw (M6 x 16) Y75M06000
19	Y-31727200	Clip Nut Y31727200
20	Y-33R90200	Ball Retainer L (3/16" x 14) Y33R90200
21	Y-33R05000	Right Hand Dust Cap A Y33R05000
22	Y-33R52001	Right Hand Dust Cap B Y33R52001
23	Y-32203200	Sprocket Wheel 16T (Black) Y32203200
23	Y-73T21830	Sprocket Wheel 18T (Black) Y73T21830
23	Y-73T21930	Sprocket Wheel 19T (Black) Y73T21930
23	Y-73T22030	Sprocket Wheel 20T (Black) Y73T22030
23	Y-73T22130	Sprocket Wheel 21T (Black) Y73T22130
23	Y-73T22230	Sprocket Wheel 22T (Black) Y73T22230
23	Y-73T22330	Sprocket Wheel 23T (Black) Y73T22330
24	Y-32120010	Snap Ring C Y32120010
25	Y-33R98080	Push Rod (81.85 mm) for Axle Length 168 mm Y33R98080
25	Y-33S98180	Push Rod (86.85 mm) for Axle Length 175 mm/178 mm Y33S98180
26	Y-6P198030	SM-BC06 Bell Crank Unit Y6P198030
26	Y-33S95100	Bell Crank 3 Unit Y33S95100
27	Y-33S98010	Cable Adjusting Bolt & Nut Y33S98010
28	Y-33S74000	Bell Crank Body Fixing Bolt for SM-BC06 Y33S74000
28	Y-33S57000	Bell Crank Body Fixing Bolt for Bell Crank 3 Y33S57000
29	Y-33S98030	Inner Cable Fixing Bolt Unit Y33S98030
30	Y-6P198040	Bell Crank Cover & Fixing Screw for SM-BC06 Y6P198040
30	Y-33S98020	Bell Crank Cover & Fixing Screw for Bell Crank 3 Y33S98020
31	Y-04120800	Internal Hub Grease (Net. 100g) Y04120800
