Shimano SG-C6001-8D (-4131B) NEXUS 8-speed Internal Hub

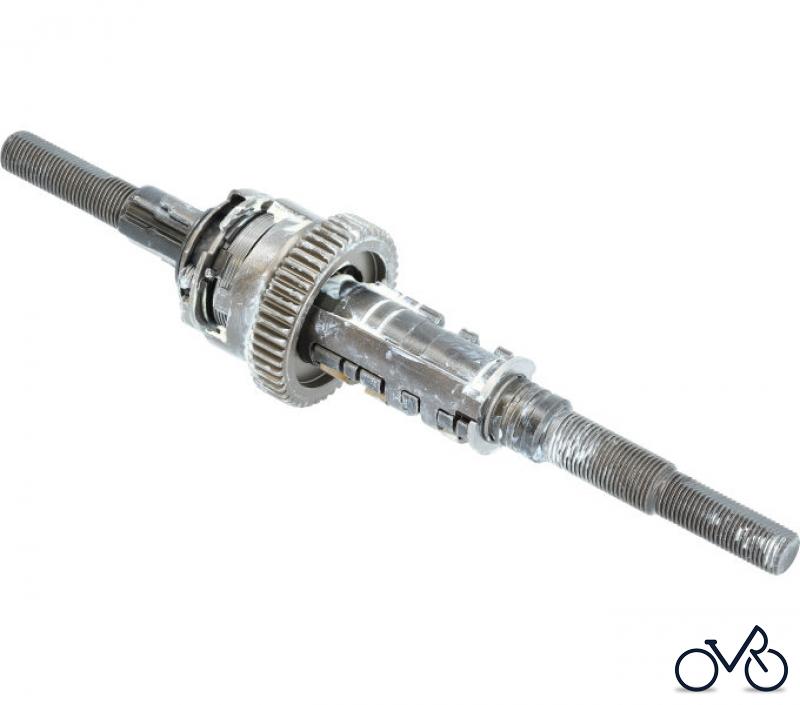

Hub Axle Unit (Axle Length 187 mm) B

Article Number:

Y-3EK98020

Pos:

34.95 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: Delivery time approx. 5 to 14 working days.

Here you will find the spare parts drawing for Shimano SG Getriebenabe /Nabenschaltung SG-C6001-8D (-4131B) NEXUS 8-speed Internal Hub. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3EK98010	Internal Assembly (Axle Length 187 mm) B Y3EK98010
2	Y-34R79000	Stop Ring Diameter (12 mm / 1.0 mm) A A Y34R79000
2	Y-34R79010	Stop Ring Diameter (12 mm / 1.3 mm) A A Y34R79010
2	Y-34R79020	Stop Ring Diameter (12 mm / 1.6 mm) A A Y34R79020
3	Y-3EH98030	Ring Gear Unit B B Y3EH98030
4	Y-3EH98040	Carrier Unit B B Y3EH98040
5	Y-36V22000	Ring Gear 1 A B Y36V22000
6	Y-34R80000	Ring Gear 1 Stop Spring A A Y34R80000
7	Y-38X98050	Ball Retainer O (3/16" x 26) A A Y38X98050
8	Y-3EK98020	Hub Axle Unit (Axle Length 187 mm) B Y3EK98020
9	Y-34R98050	Clutch Unit A A Y34R98050
10	Y-34R21000	Return Spring A A A Y34R21000
11	Y-37J98020	Driver Unit A B Y37J98020
12	Y-34R98070	Ball Retainer P (3/16" x 13) A A Y34R98070
13	Y-37J98080	Right Hand Cone w/Seal A A Y37J98080
14	Y-34R12000	Driver Plate A Y34R12000
15	Y-34R98090	Lock Washer A Y34R98090
16	Y-34R09000	Stop Washer A A Y34R09000
17	Y-35Z11000	Right Hand Serated Lock Nut (5.4 mm) A A Y35Z11000
18	Y-31414010	Cap Nut (3/8") A A Y31414010
19	Y-33Z20500	Non-turn Washer 5R (Yellow) A A Y33Z20500
19	Y-33M39600	Non-turn Washer 6R (Silver) A A Y33M39600
19	Y-33M39700	Non-turn Washer 7R (Black) A A Y33M39700
19	Y-34R85010	Non-turn Washer 8R (Dark Blue) A A Y34R85010
20	Y-33M39510	Non-turn Washer 5L (Brown) A A Y33M39510
20	Y-33M39610	Non-turn Washer 6L (White) A A Y33M39610
20	Y-33M39710	Non-turn Washer 7L (Gray) A A Y33M39710
20	Y-34R85000	Non-turn Washer 8L (Dark Green) A A Y34R85000
21	Y-35Z19000	Left Hand Serated Lock Nut (10.7 mm) A A Y35Z19000
22	Y-31L98040	Left Hand Cone w/Dust Cap & Seal Ring A A Y31L98040
23	Y-37710000	Seal Ring A A Y37710000
24	Y-32T08100	Left Hand Inner Dust Cap A A Y32T08100
25	Y-36U98030	Ball Retainer (7/32" x 9) A A Y36U98030
26	Y-37G98080	Right Hand Dust Cap A w/Seal (A spec.) A Y37G98080
27	Y-36R07000	Right Hand Dust Cap C (A spec.) A Y36R07000
28	Y-32203220	Sprocket Wheel 16T (Silver) A A Y32203220
28	Y-32203420	Sprocket Wheel 18T (Silver) A A Y32203420
28	Y-32203520	Sprocket Wheel 19T (Silver) A A Y32203520
28	Y-32203620	Sprocket Wheel 20T (Silver) A A Y32203620
28	Y-33060000	Sprocket Wheel 21T (Silver) A A Y33060000
28	Y-33060100	Sprocket Wheel 22T (Silver) A A Y33060100
28	Y-33060200	Sprocket Wheel 23T (Silver) A A Y33060200
29	Y-32120100	Snap Ring C A A Y32120100
30	Y-74Y98120	CJ-8S20 Cassette Joint Unit A Y74Y98120
30	Y-73E98020	CJ-8S20 Cassette Joint Unit for Belt drive system Y73E98020
31	Y-74Y18000	Driver Cap A A Y74Y18000
32	Y-74Y98130	CJ-8S20 Cassette Joint A Y74Y98130
32	Y-73E98030	CJ-8S20 Cassette Joint for Belt drive system Y73E98030
33	Y-33Z98020	Cassette Joint Fixing Ring A A Y33Z98020
34	Y-74Y98030	Inner Cable Fixing Bolt Unit A Y74Y98030
35	Y-70800300	TL-8S30 Carrier Unit Tool A A Y70800300
36	Y-70810000	TL-AF20 Right Hand Cone Installation Tool A B Y70810000
37	Y-70800600	TL-8S11 Right Hand Cone Removal Tool A Y70800600
38	Y-04120800	Internal Hub Grease (Net. 100g) A A Y04120800
39	Y-00298010	WB maintenance oil set A A Y00298010
40	Y-00201000	WB maintenance oil (1L) A A Y00201000
41	Y-00201100	Bottle A A Y00201100
42	Y-34R98110	Right Hand Dust Cap A w/Seal (B spec.) Y34R98110
43	Y-34R0E000	Right Hand Dust Cap B (B spec.) Y34R0E000
00	Y-34R0D000	Right Hand Hub Cup Y34R0D000
