Shimano SG-C6001-8C (-4041A) NEXUS 8-Speed Internal Hub w/Coaster Brake

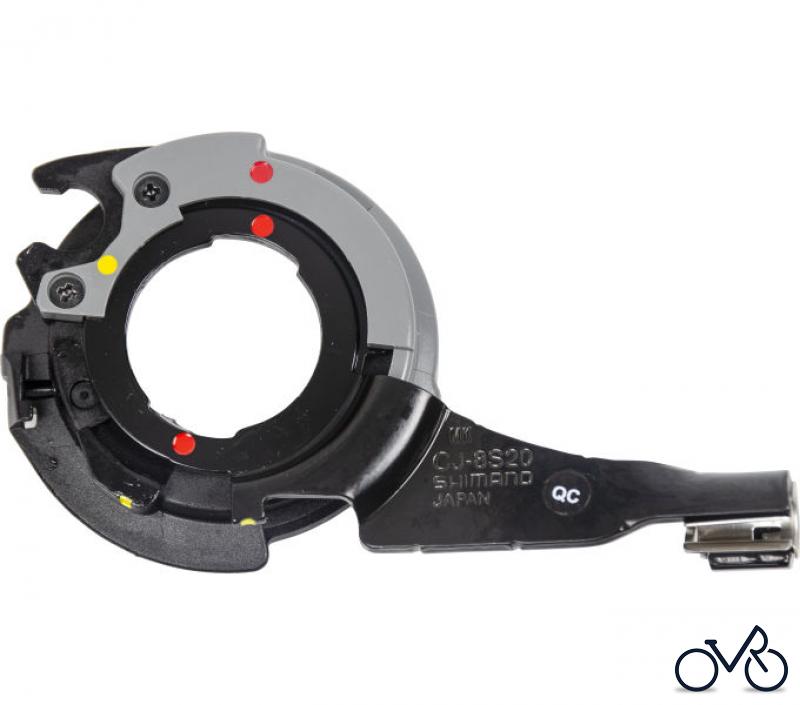

CJ-8S20 Cassette Joint for Belt drive system

Article Number:

Y-73E98030

Pos:

7.95 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: Delivery time approx. 5 to 14 working days.

Shimano SG Getriebenabe /Nabenschaltung SG-C6001-8C (-4041A) NEXUS 8-Speed Internal Hub w/Coaster Brake

Here you will find the spare parts drawing for Shimano SG Getriebenabe /Nabenschaltung SG-C6001-8C (-4041A) NEXUS 8-Speed Internal Hub w/Coaster Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3EJ98010	Internal Assembly (Axle Length 184 mm) B Y3EJ98010
2	Y-3EJ98020	Internal Assembly (Axle Length 184 mm), Brake Arm Unit, Right Hand Dust Cap A&CB Y3EJ98020
3	Y-3EJ98030	Internal Assembly (Axle Length 184 mm), Brake Arm Unit, Right Hand Dust Cap A&BB Y3EJ98030
4	Y-37G98080	Right Hand Dust Cap A w/Seal (A spec.) A Y37G98080
5	Y-34R98110	Right Hand Dust Cap A w/Seal (B spec.) A Y34R98110
6	Y-36R07000	Right Hand Dust Cap C (A spec.) A Y36R07000
7	Y-34R0E000	Right Hand Dust Cap B (B spec.) A Y34R0E000
8	Y-31N98050	Brake Arm Unit (3 Serration) A Y31N98050
9	Y-31N98060	Brake Shoe Unit & Brake Arm Unit A Y31N98060
10	Y-37G98020	Brake Shoe Unit (3 pcs.) A Y37G98020
11	Y-37E08000	O-Ring A Y37E08000
12	Y-37G19000	E-Ring A Y37G19000
13	Y-3EJ98040	Ring Gear Unit B Y3EJ98040
14	Y-3EJ98050	Carrier Unit B Y3EJ98050
15	Y-35P11010	Ring Gear 1 A Y35P11010
16	Y-34R80000	Ring Gear 1 Stop Ring A Y34R80000
17	Y-38X98050	Ball Retainer O (3/16" x 26) A Y38X98050
18	Y-3EJ98060	Hub Axle Unit (Axle Length 184 mm) B Y3EJ98060
19	Y-35P98060	Clutch Unit A Y35P98060
20	Y-34R21000	Return Spring A A Y34R21000
21	Y-37G98060	Driver Unit A Y37G98060
22	Y-34R98070	Ball Retainer P (3/16" x 13) A Y34R98070
23	Y-37J98080	Right Hand Cone w/Seal A Y37J98080
24	Y-34R12000	Driver Plate A Y34R12000
25	Y-34R98090	Lock Washer A Y34R98090
26	Y-34R09000	Stop Washer A Y34R09000
27	Y-33Z07020	Right Hand Lock Nut (3.4 mm) A Y33Z07020
28	Y-31414010	Cap Nut (3/8") A Y31414010
29	Y-33M39510	Non-turn Washer 5L (Brown) A Y33M39510
29	Y-33M39610	Non-turn Washer 6L (White) A Y33M39610
29	Y-33M39710	Non-turn Washer 7L (Gray) A Y33M39710
30	Y-35P28000	Left Hand Lock Nut (3 mm) A Y35P28000
31	Y-35P22000	Stop Nut A Y35P22000
32	Y-33F98090	Brake Arm Clip Unit (5/8") A Y33F98090
32	Y-33F98100	Brake Arm Clip Unit (3/4") A Y33F98100
33	Y-75M06000	Clip Screw (M6 x 16) A Y75M06000
34	Y-31727200	Clip Nut A Y31727200
35	Y-38R98190	Ball Retainer B (3/16" x 16) A Y38R98190
36	Y-35J11100	Hub Shell Slide Spring A Y35J11100
37	Y-32203220	Sprocket Wheel 16T (Silver) A Y32203220
37	Y-32203420	Sprocket Wheel 18T (Silver) A Y32203420
37	Y-32203520	Sprocket Wheel 19T (Silver) A Y32203520
37	Y-32203620	Sprocket Wheel 20T (Silver) A Y32203620
37	Y-33060000	Sprocket Wheel 21T (Silver) A Y33060000
37	Y-33060100	Sprocket Wheel 22T (Silver) A Y33060100
37	Y-33060200	Sprocket Wheel 23T (Silver) A Y33060200
38	Y-32120100	Snap Ring C A Y32120100
39	Y-74Y98120	CJ-8S20 Cassette Joint Unit A Y74Y98120
39	Y-73E98020	CJ-8S20 Cassette Joint Unit for Belt drive system Y73E98020
40	Y-74Y18000	Driver Cap A Y74Y18000
41	Y-74Y98130	CJ-8S20 Cassette Joint A Y74Y98130
41	Y-73E98030	CJ-8S20 Cassette Joint for Belt drive system Y73E98030
42	Y-33Z98020	Cassette Joint Fixing Ring A Y33Z98020
43	Y-74Y98030	Inner Cable Fixing Bolt Unit A Y74Y98030
44	Y-33Z20500	Non-turn Washer 5R (Yellow) A Y33Z20500
44	Y-33M39600	Non-turn Washer 6R (Silver) A Y33M39600
44	Y-33M39700	Non-turn Washer 7R (Black) A Y33M39700
45	Y-70800300	TL-8S30 Carrier Unit Tool A Y70800300
46	Y-70800200	TL-8S20 Right Hand Cone Installation Tool A Y70800200
47	Y-70800600	TL-8S11 Right Hand Cone Removal Tool A Y70800600
48	Y-04120800	Internal Hub Grease (Net. 100g) A Y04120800
49	Y-00298010	WB maintenance oil set A Y00298010
50	Y-00201000	WB maintenance oil (1L) A Y00201000
51	Y-00201100	Bottle A Y00201100
0	Y-34R0D000	Right Hand Hub Cup Y34R0D000
