Shimano SG-S7001-8 ALFINE 8-Gang Nabenschaltung

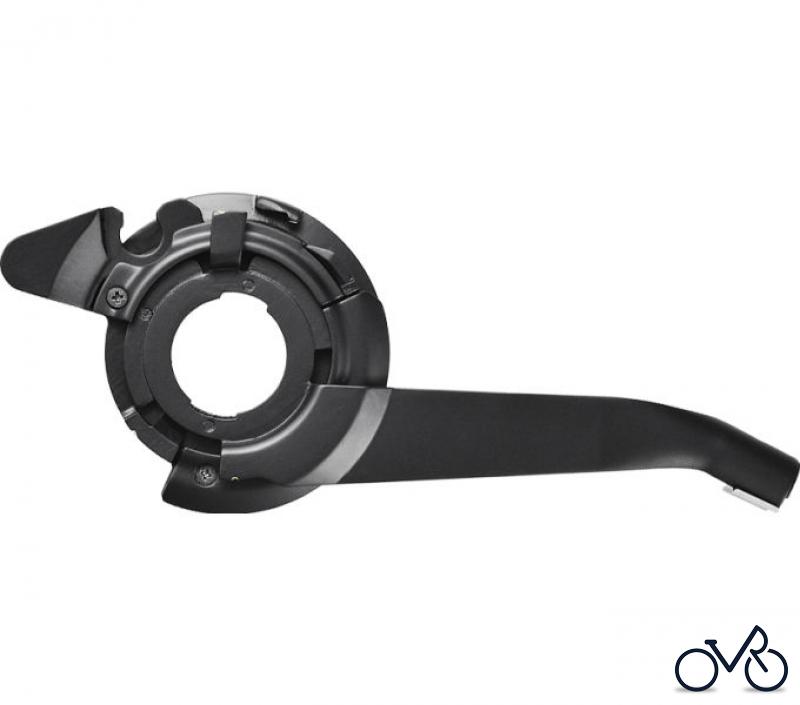

CJ-S7000 Cassette Joint Unit for Belt drive system

Article Number:

Y-7ZR98030

Pos:

12.95 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: Delivery time approx. 5 to 14 working days.

Here you will find the spare parts drawing for Shimano SG Getriebenabe /Nabenschaltung SG-S7001-8 Shimano ALFINE 8-Gang Nabenschaltung. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3EB98010	Internal Assembly (Axle Length 187 mm) Y3EB98010
2	Y-34R79000	Stop Ring Diameter (12 mm / 1.0 mm) Y34R79000
2	Y-34R79010	Stop Ring Diameter (12 mm / 1.3 mm) Y34R79010
2	Y-34R79020	Stop Ring Diameter (12 mm / 1.6 mm) Y34R79020
3	Y-3EG98020	Ring Gear Unit Y3EG98020
4	Y-3EG98030	Carrier Unit Y3EG98030
5	Y-36W07000	Ring Gear 1 Y36W07000
6	Y-34R80000	Ring Gear 1 Stop Ring Y34R80000
7	Y-38X98050	Ball Retainer O (3/16" x 26) Y38X98050
8	Y-3EB98020	Hub Axle Unit (Axle Length 187 mm) Y3EB98020
9	Y-34R98050	Clutch Unit Y34R98050
10	Y-34R21000	Return Spring Y34R21000
11	Y-37L98020	Driver Unit Y37L98020
12	Y-35Z98050	Right Hand Dust Cap w/Seal Y35Z98050
13	Y-35Z20000	Chain Guard Y35Z20000
14	Y-34R0E000	Right Hand Dust Cap Y34R0E000
15	Y-34R98070	Ball Retainer P (3/16" x 13) Y34R98070
16	Y-37J98080	Right Hand Cone w/Seal Y37J98080
17	Y-31L04000	Driver Plate Y31L04000
18	Y-31L98030	Lock Washer Y31L98030
19	Y-34R09000	Stop Washer Y34R09000
20	Y-35Z11000	Right Hand Serated Lock Nut (5.4 mm) Y35Z11000
21	Y-31L12000	Rotor Mount Cover Y31L12000
22	Y-72A01000	Cap Nut (3/8") Y72A01000
23	Y-33Z20500	Non-turn Washer 5R (Yellow) Y33Z20500
23	Y-33M39600	Non-turn Washer 6R (Silver) Y33M39600
23	Y-33M39700	Non-turn Washer 7R (Black) Y33M39700
23	Y-34R85010	Non-turn Washer 8R (Dark Blue) Y34R85010
24	Y-33M39510	Non-turn Washer 5L (Brown) Y33M39510
24	Y-33M39610	Non-turn Washer 6L (White) Y33M39610
24	Y-33M39710	Non-turn Washer 7L (Gray) Y33M39710
24	Y-34R85000	Non-turn Washer 8L (Dark Green) Y34R85000
25	Y-35Z19000	Left Hand Serated Lock Nut (10.7 mm) Y35Z19000
26	Y-31L98040	Left Hand Cone w/Dust Cap & Seal Ring Y31L98040
27	Y-37710000	Seal Ring Y37710000
28	Y-32T08100	Left Hand Inner Dust Cap Y32T08100
29	Y-36U98030	Ball Retainer (7/32" x 9) Y36U98030
30	I-CSS50018	Sprocket Wheel 18T w/Guard Plate (CS-S500) ICSS50018
30	I-CSS50020	Sprocket Wheel 20T w/Guard Plate (CS-S500) ICSS50020
31	Y-32120100	Snap Ring C Y32120100
32	Y-7ZR98010	CJ-S7000 Cassette Joint Unit Y7ZR98010
32	Y-7ZR98030	CJ-S7000 Cassette Joint Unit for Belt drive system Y7ZR98030
33	Y-74Y18000	Driver Cap Y74Y18000
34	Y-7ZR98020	CJ-S7000 Cassette Joint Y7ZR98020
34	Y-7ZR98040	CJ-S7000 Cassette Joint for Belt drive system Y7ZR98040
35	Y-33Z98020	Cassette Joint Fixing Ring Y33Z98020
36	Y-6TV98070	Inner Cable Fixing Bolt Unit Y6TV98070
37	Y-70800300	TL-8S30 Carrier Unit Tool Y70800300
38	Y-70810000	TL-AF20 Right Hand Cone Installation Tool Y70810000
39	Y-70820000	TL-S7001-8 Right Hand Cone Removal Tool Y70820000
40	Y-32010000	TL-AF10 Right Hand Dust Cap A Installation Tool Y32010000
41	Y-70811000	TL-AF30 Left Hand Inner Dust Cap Installation Tool Y70811000
42	Y-72A06000	TL-S700-B Inner Cable Fixing Bolt Installation Tool Y72A06000
43	Y-04120800	Internal Hub Grease (Net. 100g) Y04120800
44	Y-00298010	WB maintenance oil set Y00298010
45	Y-00201000	WB maintenance oil (1L) Y00201000
46	Y-00201100	Bottle Y00201100
0	Y-35Z07010	Right Hand Hub Cup Y35Z07010
