Shimano SG-S7001-11 ALFINE 11-Gang Nabenschaltung

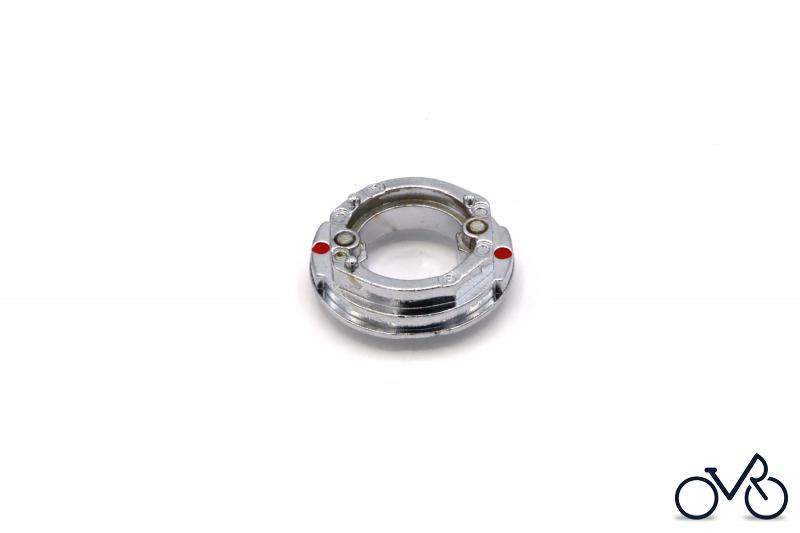

Lock Washer A

Article Number:

Y-37R98090

Pos:

6.95 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

in Stock

Here you will find the spare parts drawing for Shimano SG Getriebenabe /Nabenschaltung SG-S7001-11 ALFINE 11-Gang Nabenschaltung. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3EN98010	Internal Assembly (Axle Length 187 mm) B Y3EN98010
2	Y-37E08000	O-Ring A Y37E08000
3	Y-34R79000	Stop Ring (ø12 / 1.0 mm) A Y34R79000
3	Y-34R79010	Stop Ring (ø12 / 1.3 mm) A Y34R79010
3	Y-34R79020	Stop Ring (ø12 / 1.6 mm) A Y34R79020
4	Y-37R78000	Carrier Hold Plate A Y37R78000
5	Y-37R80000	Carrier 3 Slide Spring A Y37R80000
6	Y-37R81000	Sun Gear 4 Slide Spring A Y37R81000
7	Y-37R98020	Carrier 3 Unit A Y37R98020
8	Y-3EN09000	Sun Gear 4 Y3EN09000
9	Y-37R56000	Sun Gear 3 Guide Ring A Y37R56000
10	Y-3EN98020	Carrier 2 Unit Y3EN98020
11	Y-3EN07000	Sun Gear 2 Y3EN07000
12	Y-3EN98030	Carrier 1 Unit Y3EN98030
13	Y-37R98050	Ball Retainer S (3/16" x 26) A Y37R98050
14	Y-3EN98040	Hub Axle Unit (Axle Length 187 mm) Y3EN98040
15	Y-3EN98050	Clutch Unit Y3EN98050
16	Y-34R21000	Return Spring A A Y34R21000
17	Y-3EN98060	Driver Unit B Y3EN98060
18	Y-34R98070	Ball Retainer P (3/16" x 13) A Y34R98070
19	Y-37R18000	Seal Ring R A Y37R18000
20	Y-37R17000	Right Hand Cone A Y37R17000
21	Y-37R16000	Drive Plate Seal A Y37R16000
22	Y-37R98090	Lock Washer A Y37R98090
23	Y-37R15000	Lock Washer Seal A Y37R15000
24	Y-37R12000	Joint Nut Stop Washer A Y37R12000
25	Y-37R11000	Serated Lock Nut (4.4 mm) A Y37R11000
26	Y-37R98100	Right Hand Dust Cap A w/Seal A Y37R98100
27	Y-35Z20000	Chain Guard A Y35Z20000
28	Y-37R75000	Right Hand Dust Cap D A Y37R75000
29	Y-37R74000	Rotor Mount Cover A Y37R74000
30	Y-37R82000	Rotor Spacer A Y37R82000
31	Y-72A01000	Cap Nut (3/8") A Y72A01000
32	Y-34R85010	Non-turn Washer 8R (Dark Blue) A Y34R85010
33	Y-34R85000	Non-turn Washer 8L (Dark Green) A Y34R85000
34	Y-37R98110	Left Hand Cone w/Dust Cap A Y37R98110
35	Y-37R73000	Seal Ring L A Y37R73000
36	Y-36U98030	Ball Retainer (7/32" x 9) A Y36U98030
37	Y-37R98120	Oil Port Bolt (Silver) & O-Ring A Y37R98120
37	Y-37R98130	Oil Port Bolt (Black) & O-Ring A Y37R98130
38	I-CSS50018	Sprocket Wheel 18T w/Guard Plate (CS-S500) A ICSS50018
38	I-CSS50020	Sprocket Wheel 20T w/Guard Plate (CS-S500) A ICSS50020
39	Y-32120100	Snap Ring C A Y32120100
40	Y-72A98010	CJ-S700 Cassette Joint Unit A Y72A98010
40	Y-72A98030	CJ-S700 Cassette Joint Unit for Belt drive system Y72A98030
41	Y-74Y18000	Driver Cap A Y74Y18000
42	Y-72A98020	CJ-S700 Cassette Joint A Y72A98020
42	Y-72A98040	CJ-S700 Cassette Joint for Belt drive system Y72A98040
43	Y-33Z98020	Cassette Joint Fixing Ring A Y33Z98020
44	Y-6TV98060	Outer Receiver Unit A Y6TV98060
45	Y-6TV98070	Inner Cable Fixing Bolt Unit A Y6TV98070
46	Y-13098024	TL-S700 Inner Cable Fixing Bolt Setting Tool A Y13098024
47	Y-13098021	TL-S701 Right Hand Cone Removal Tool A Y13098021
48	Y-13098022	TL-S702 Right Hand Cone Installation Tool A Y13098022
49	Y-70819000	TL-S704 Seal Set Tool A Y70819000
50	Y-32010000	TL-AF10 Right Hand Dust Cap A Installation Tool A Y32010000
51	Y-13098023	TL-S703 Oil Kit A Y13098023
52	Y-13098025	Tube Set (Tube & Bleeding Nipple) A Y13098025
53	Y-13098480	SG-S700 Oil (1 L) A Y13098480
54	Y-13098481	SG-S700 Oil (50 ml) A Y13098481
0	Y-37R07000	Right Hand Hub Cup Y37R07000
