Shimano RD-M9000 - 3787A XTR

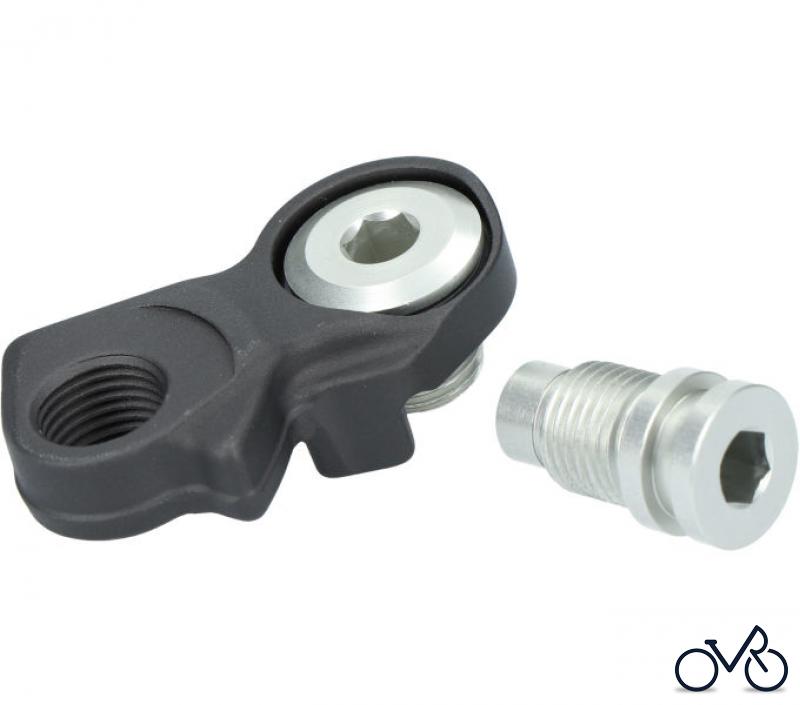

Bracket Axle Unit (for normal type)

Article Number:

Y-5PV98010

Pos:

21.96 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: Delivery time approx. 5 to 14 working days.

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-M9000 - 3787A Shimano XTR. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-5PV98010	Bracket Axle Unit (for normal type) Y5PV98010
02	Y-5PV15000	B-Axle 2(for Direct Mount type) Y5PV15000
03	Y-5PV98030	P-Cover Unit Y5PV98030
04	Y-5Y198070	P-Cover Bolt Set (3 pcs.) Y5Y198070
05	Y-5PV14000	P-Cover Y5PV14000
06	Y-5PV25000	P-Cover Packing Y5PV25000
07	Y-5PV98040	Stabilizer Unit Y5PV98040
08	Y-5PV98050	Cam Unit Y5PV98050
09	Y-5PV98060	P-Axle Unit & O Ring Y5PV98060
10	Y-5PV98070	B-Tension Adjusting Screw (M4 x 14.1) & Plate Y5PV98070
11	Y-5PV98080	Cable Fixing Bolt (M6 x 9.2) & Plate Y5PV98080
12	Y-5PV98090	Stroke Adjusting Screws & Plate Y5PV98090
13	Y-5PV98100	Switch Lever Unit & Fixing Plate Y5PV98100
14	Y-5PV17000	P-Tension Spring Y5PV17000
15	Y-5PV24000	P-Seal Ring Y5PV24000
16	Y-5PV98120	Outer Plate Assembly (GS-Type) Y5PV98120
16	Y-5PV98130	Outer Plate Assembly (SGS-Type) Y5PV98130
17	Y-5PV98160	Guide & Tension Pulley Unit Y5PV98160
18	Y-5PV09100	Inner Plate (GS-Type) Y5PV09100
18	Y-5PV10100	Inner Plate (SGS-Type) Y5PV10100
19	Y-5WJ21100	Pulley Bolt Y5WJ21100
20	Y-5PV48000	Cover with tongue Y5PV48000
21	Y-04120800	Grease for Stabilizer (Net. 100g) Y04120800
