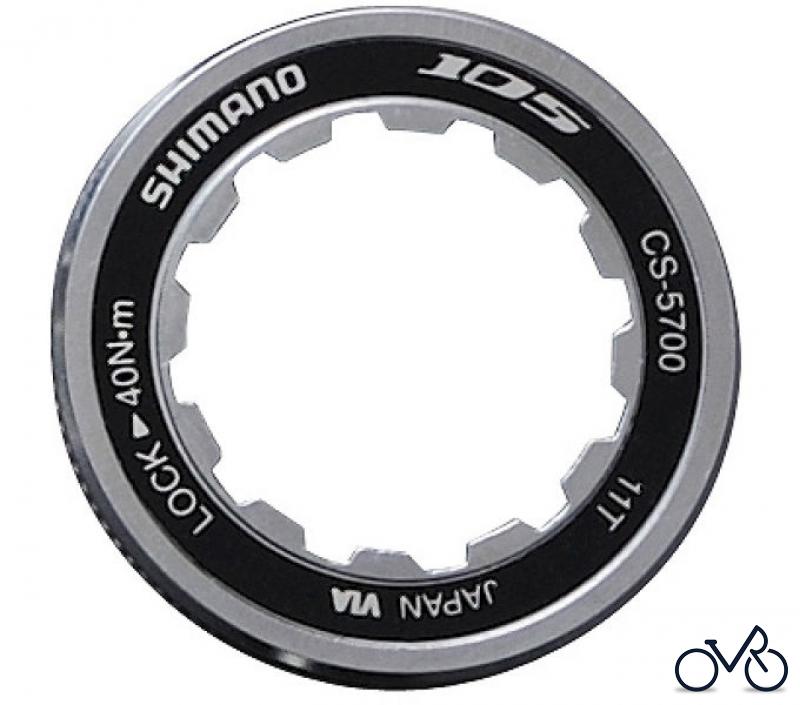

Shimano CS-5700SHIMANO 105 Cassette Sprocket

Lock Ring & Spacer for 11T Top Gear

Article Number:

Y1YN98010

Pos:

5.95 €

for EU incl. VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: Delivery time approx. 5 to 14 working days.

Here you will find the spare parts drawing for Shimano CS Cassette / Zahnkranz CS-5700SHIMANO 105 Cassette Sprocket. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y1YN98010	Lock Ring & Spacer for 11T Top Gear Y1YN98010
1	Y1YN98020	Lock Ring & Spacer for 12T Top Gear Y1YN98020
2	Y10Z04000	Lock Ring Spacer for 11T Top Gear Y10Z04000
2	Y11W02000	Lock Ring Spacer for 12T Top Gear Y11W02000
3	Y1Z81100N	Sprocket Wheel 11T (Built in spacer type) Y1Z81100N
4	Y1Z81200N	Sprocket Wheel 12T (Built in spacer type Y1Z81200N
5	Y1ZD1390N	Sprocket Wheel 13T (Built in spacer type Y1ZD1390N
6	Y1Z81400N	Sprocket Wheel 14T Y1Z81400N
7	Y1Z81500N	Sprocket Wheel 15T Y1Z81500N
8	Y1Z81600N	Sprocket Wheel 16T Y1Z81600N
9	Y1ZF1700N	Sprocket Wheel 17T for 11T Top Gear Y1ZF1700N
9	Y1ZD1700N	Sprocket Wheel 17T for 12T Top Gear Y1ZD1700N
10	Y1ZF1900N	Sprocket Wheel 19T for 11T Top Gear Y1ZF1900N
10	Y1ZD1900N	Sprocket Wheel 19T for 12T Top Gear Y1ZD1900N
11	Y1YN98050	Sprocket Unit (21-23-25T) for 11-25T Y1YN98050
11	Y1YN98060	Sprocket Unit (21-24-28T) for 11-28T Y1YN98060
11	Y1YN98070	Sprocket Unit (21-23-25T) for 12-25T Y1YN98070
11	Y1YN98080	Sprocket Unit (21-24-27T) for 12-27T Y1YN98080
12	Y35765231	Sprocket Spacer (t=2.35 mm) Y35765231
13	Y1Z807000	Low Spacer (t=1.0 mm) Y1Z807000
14	Y12009230	Lock Ring Removal Tool (TL-LR15) Y12009230
