Shimano BR-6600 ULTEGRA Caliper Brak

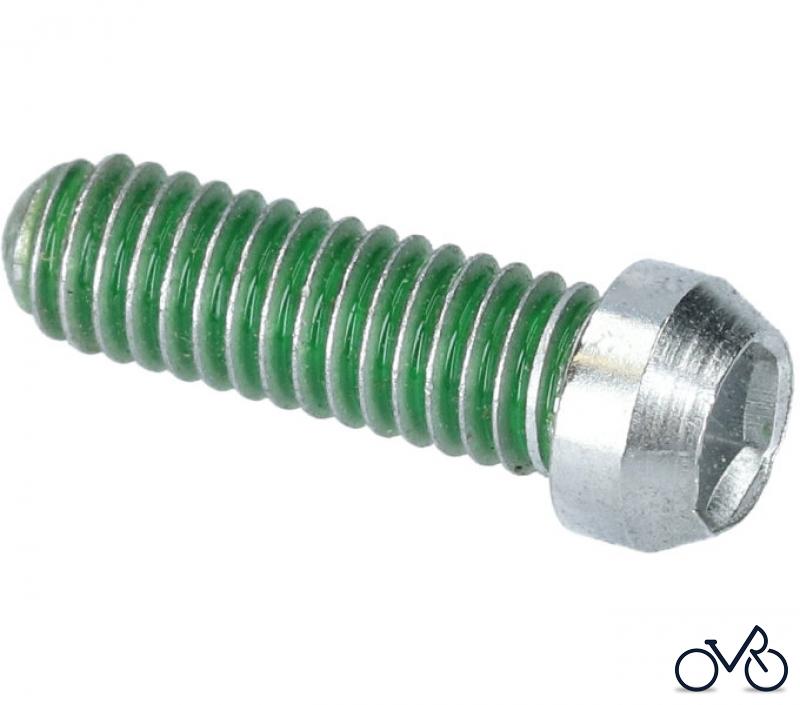

EC-Bolt (M4 x 10.2)

Article Number:

Y-8FA09100

Pos:

no longer available

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-6600 ULTEGRA Caliper Brak. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-8DD98010	Arm Bolt Unit (M6 x 17.5) Y8DD98010
02	Y-88414200	Set Bolt (M4) Y88414200
03	Y-8F598010	Front Pivot Bolt Assembly {Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut: 10.5 mm} Y8F598010
03	Y-8F598020	Front Pivot Bolt Assembly {Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut: 12.5 mm} Y8F598020
03	Y-8F598030	Front Pivot Bolt Assembly {Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut: 18.0 mm} Y8F598030
03	Y-8F598040	Front Pivot Bolt Assembly {Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut: 27.0 mm Y8F598040
03	Y-8F598050	Rear Pivot Bolt Assembly {Pivot Bolt: 37.8 mm (1-1/2") / Pivot Nut:10.5 mm} Y8F598050
03	Y-8F598060	Rear Pivot Bolt Assembly {Pivot Bolt: 37.8 mm (1-1/2") / Pivot Nut:12.5 mm} for BR-6600 Y8F598060
04	Y-85575110	Pivot Nut (10.5 mm) for Front/Rear Y85575110
04	Y-85575020	Pivot Nut (12.5 mm) for Front/Rear Y85575020
04	Y-85574010	Pivot Nut (18.0 mm) for Front Y85574010
04	Y-8A023000	Pivot Nut (27.0 mm) for Front Y8A023000
05	Y-85850100	Spacer-R (2 mm) Y85850100
06	Y-8DD04000	Lock Nut (M7) Y8DD04000
07	Y-84B98050	Ball Retainer Unit ( 7) Y84B98050
08	Y-8DD05000	Arm Spring Y8DD05000
09	Y-8DD06000	Sleeve Y8DD06000
10	Y-8FA09100	EC-Bolt (M4 x 10.2) Y8FA09100
11	Y-8DD98080	Cable Adjusting Bolt Unit Y8DD98080
12	Y-8DD98090	R55C2 Cartridge-Type Brake Shoe Set (Pair) for BR-6600 Y8DD98090
12	Y-8F598070	R55C2 Cartridge-Type Brake Shoe Set (Pair) for BR-6600-G Y8F598070
13	Y-8FA16000	Tire Guide Y8FA16000
14	Y-8A098020	R55C2 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) Y8A098020
15	Y-8FA17000	Fixing Bolt (M4 x 5.5) Y8FA17000
16	Y-8DD98100	Shoe Fixing Bolt Unit (M5 x 11.2) Y8DD98100
17	Y-8DD98110	Cable Fixing Bolt (M6 x 8.5) & Plate for BR-6600 Y8DD98110
17	Y-8F598080	Cable Fixing Bolt (M6 x 8.5) & Plate for BR-6600-G Y8F598080
